BAVARIAN DEMON CORTEX Agrandir l'image

BAVARIAN DEMON CORTEX

BD94747

Nouveau produit

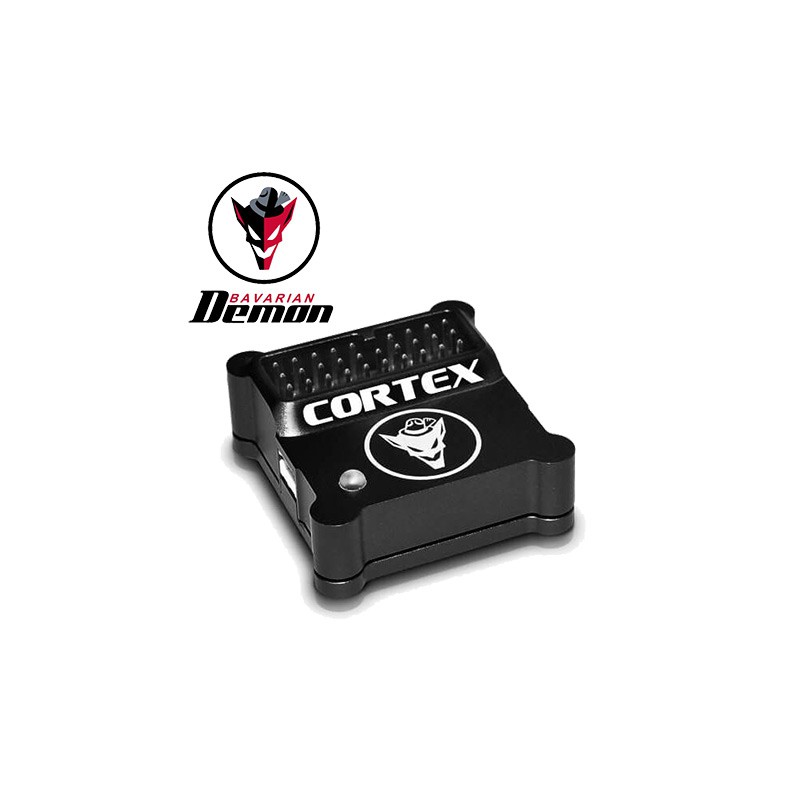

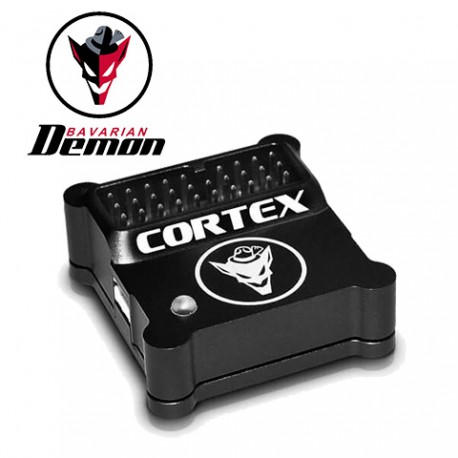

Bavarian Demon Cortex: le système de stabilisation gyroscopique 3 axes pour les voilures fixes

Pilotez votre avion et restez en sécurité, même dans les pires météos. La technologie de stabilisation 3 axes de Bavarian Demon corrige toutes les turbulences. Démoniaque !

Plus de détails

292,09 € TTC

En savoir plus

The fixed-wing aircraft gyro system CORTEX enables you to fly your airplane and stay safe, even under worst flying conditions. The approved Bavarian Demon 3-axes stabilization technology corrects any roughness in flight, every 0,002 seconds, and therefore results in total ease, stability and precision.

No matter if parkflyer, 3D acro model, scaler or turbine jet: it’s versatility turns the CORTEX into the ultimate all-rounder in the market!

Thanks to the "Ready-to-Run” feature, the CORTEX is immediately set up and ready to go. Simply teach in the travels, functions and mixer via a quick stick input procedure, and go fly. Additional tuning options are available via software, using your PC or laptop.

Another specialty of the CORTEX fixed-wing gyro are it’s 5 independent servo channels, which can be used for any function setup, like e.g. 2 ailerons, 2 elevator and one rudder, or even a setup using 4 ailerons and one elevator.

All over a real Must-Have for every fixed-wing RC model pilot.

Featuring:

  • Approved 3-axis stabilization technology: Made in Germany (ISO 9001)
  • Immediately "Ready to Run“: Quick setup via radio, no computer necessary
  • Additional tuning options: via USB cable and PC or laptop
  • Enhanced compatibility: Supports up to 5 independent servo channels
  • Universal application: no matter if Parkflyer, 3D acro model or turbine jet
  • Enhanced versatility: compatible with numerous serial receiver protocols (Futaba S.BUS (input), up to 2 Spektrum/JR satellites and all PPM serial signals like with Jeti, Graupner, etc.)
  • Future-proof due to online updates: Free software & firmware available

Specifications:

Dimensions: 36x3x14 mm
Supply voltage: 4 to 10V DC (2S LiPo compliant - mini 5.5V for Spektrum and JR Sats)
Temperature range: -15°C to +55°C
Max turn rate: 500/s on all axis
Swithching servo rate: via PC software: can be selected digital (220Hz) or analog (55Hz)
Maximum combined servo current: 12A (permanent) - 15A (short term)
Weight: 18g (without cables)

In the box:

  • CORTEX sensor unit
  • Mounting foam pad
  • 150mm connection cable loom (optional 250 mm longer cable avalaible, see accessories)
  • Quick-Start-Guide (brief installation and setup manual)
