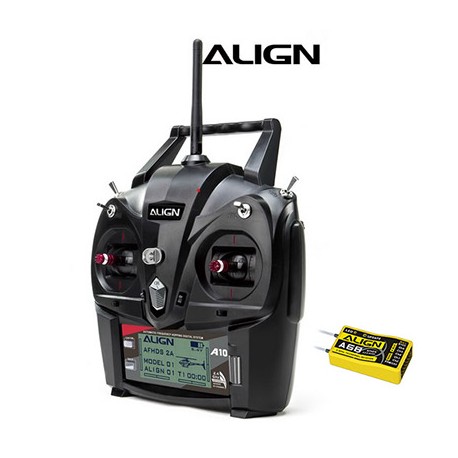

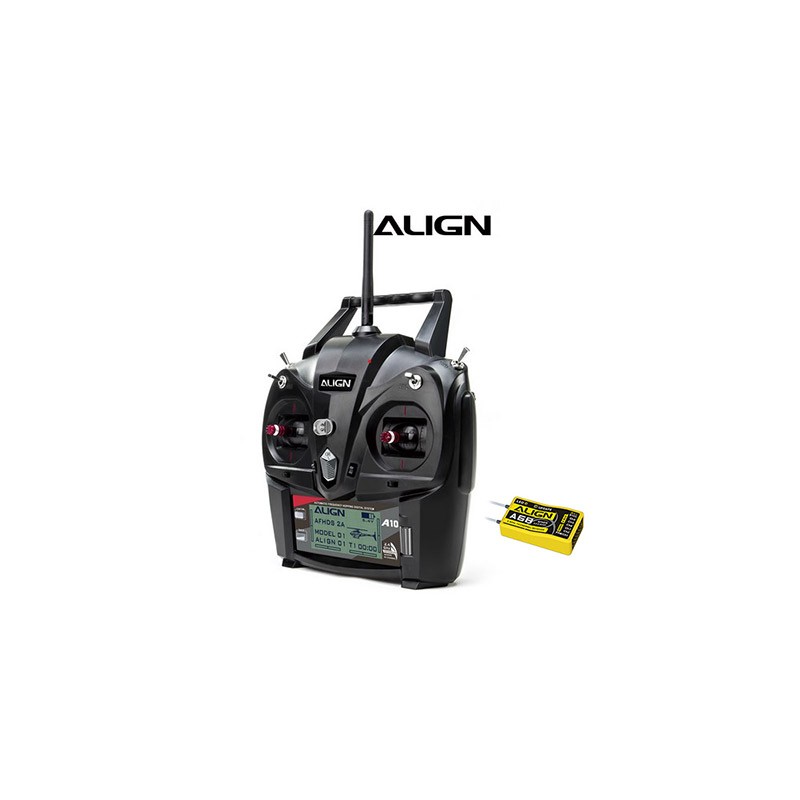

Align A10 Transmitter Set (HERA1002)

Align A10: an easy to use and affordable 10 channels radio control system to start flying rc helicopters, fixed wing aircrafts or multi-copters (A6B receiver included).

Featuring:

Automatic Frequency Hopping Digital System (AFHDS) is a highly developed remote signal transmission system, providing long range, minimizing interference, with lower power consumption.

The frequency range of the systern is 2.408 -2.475 GHz. The wave band is separated from 160 independent frequencies. The transmitter uses 16 different frequencies and I60 dilferent frequency hopping algorithms. Each time the transmitter is powered on, a diifferent frequency hopping scheme is used, allowing the transmitter to avoid interlererance of the transmission signal.

Each transmitter has unique ID code when binding to the receiver. The receiver saves this unique ID code and only accepts a signal transmitted by the saved ID code transmitter. This process avoids receiving another transmitter signals and significantly enhance the anti-interferenr.e ability and security.

Simple logical control interface:
A roll style slider is used to scroll through menu options providing a quick setup. 20 models memory with either Chinese or English interface. 3 aircraft options (helicopter/airplane/multicopter). Modes 1-4 available with optional direction output. set buzzer warnings. and firmware upgrade supported. User-friendly monitor interface features with much direct and convenient operation.

Ergonomic design for comfort:
Up to four electronic tlmmers. Ergonomic design for comfortable feel and smoothr control. The transmitter case is matte black wilh spined red control sticks to give a unique and stunning look. Radio stick with dual bearing structure providing much precise and agility control.

High end anti-interference:
This system uses a high quality gain antenna covering the entire available bandwidth. With high sensitivity receiver, this system can effectively avoid long-distance transmission signal interference.

Excellent control enjoymment and longevity:
Adopted low power rated electronics and highly sensitive receiver chip. The transmitter frequency module uses an inlermittent transmission signal to reduce transmission power and increase battery life dramatically.
Provided charging port. simulator support. Firmware update ability.

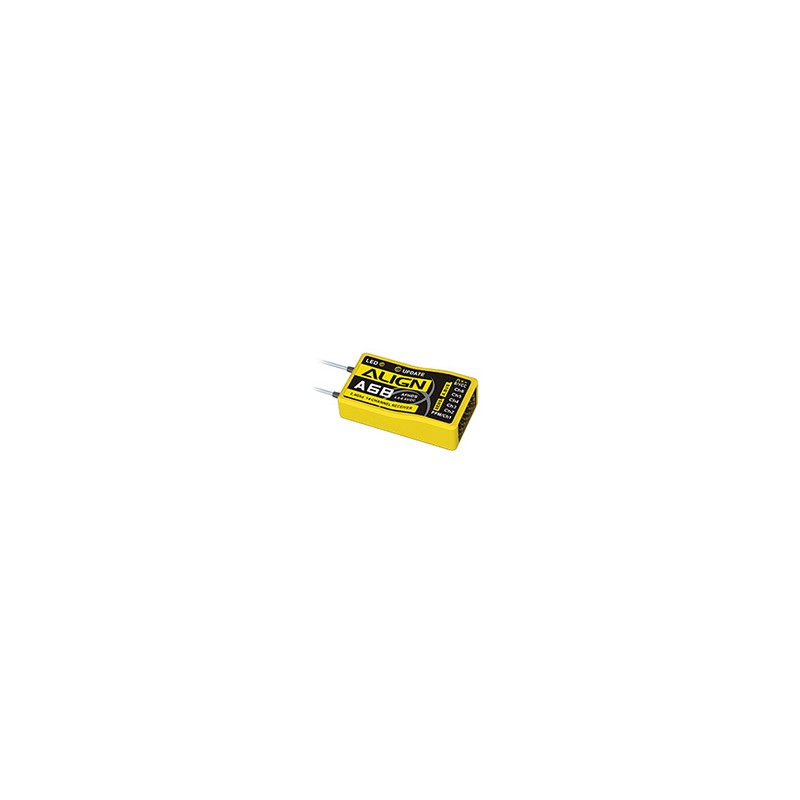

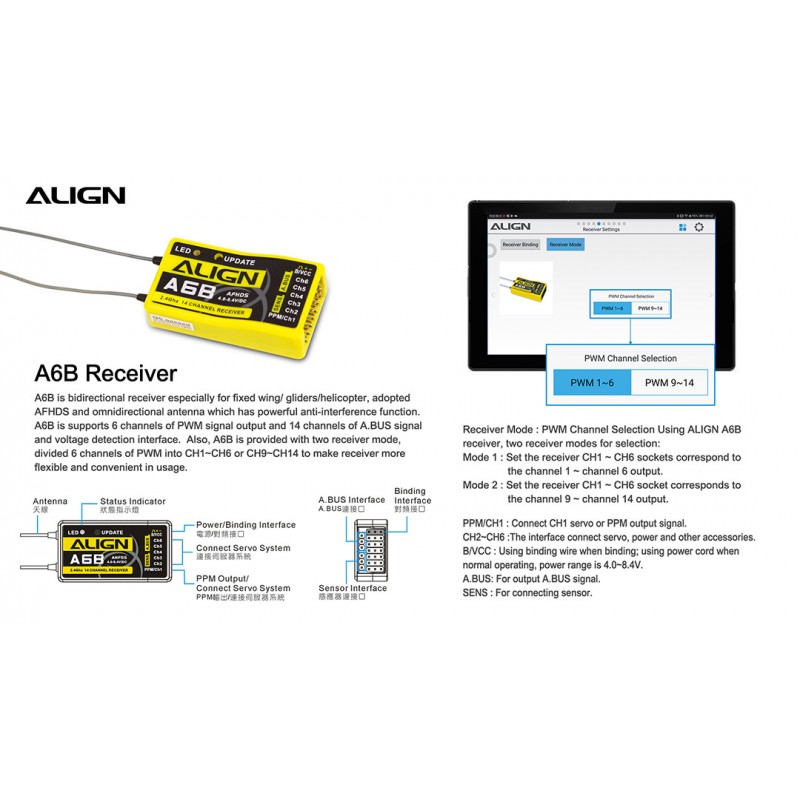

A6B Receiver:

A6B is bidirectional receiver specially designed for fixed wing, gliders and helicopters, adopted
AFHDS and omnidirectional antenna which has powerful anti-interference function.
A6B supports 6 channels of PWM signal output and 14 channels of A.Bus signal, and voltage detection interface.
Also A6B receiver is providing "twin receiver" operating mode: divided 6 channels of PWM into CH1 - CH6 or CH9-CH14 to make receiver more flexible and convenient in usage.

A10 transmitter specifications:

● Channels: 10
● System mode: 2.4G system AFHDS 2A
● Support models: rc helicopters, rc multi-copters and rc fixed wing aircrafts
● Frequency: 2.408 ~ 2.475 GHz
● Transmission distance: in the air without interference <1000M
● Input voltage: 4.0 ~ 6.0 Volts
● Weight: 485g (w/o battery)
● Dimension: 275x187x102mm
● Certification: CE, FCC, NCC (CCAK18LP1920T9), MIC (018-180199)

A6B receiver specifications:

● Channels: 14
● Rx sensitivity: -105dBm
● RF Range: 2.408 ~ 2.475 GHz
● System mode: 2.4 GHz system AFHDS 2A
● Power: 4.0 ~ 8.4 Volts
● Transmit distance: in the air without interference <1000M
● Dimension: 46.7x25.5x13.6mm
● Certification: CE, FCC, NCC (CCAK18LP1930T2), MIC (018-180198)

In the A10 transmitter set box:

● A10 transmitter x1
● A6B receiver x1
● 1.5V carbon-zinc battery (AA size) x4
