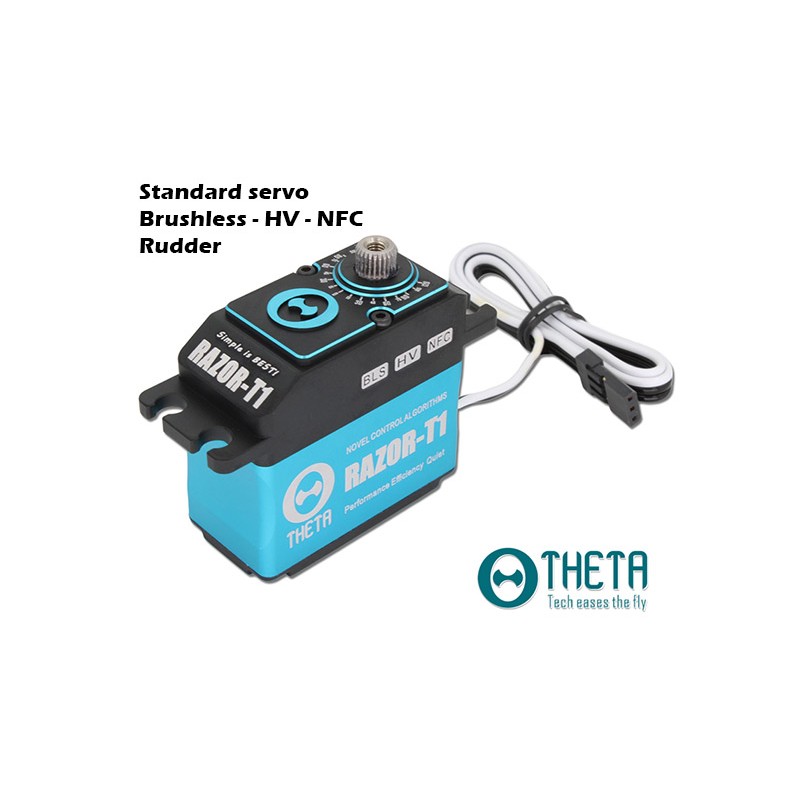

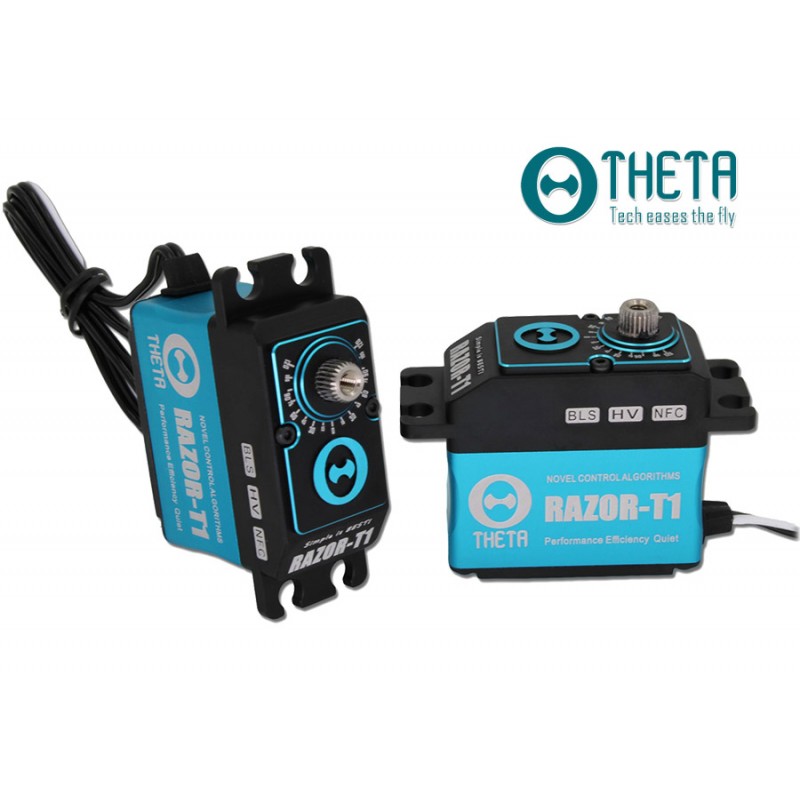

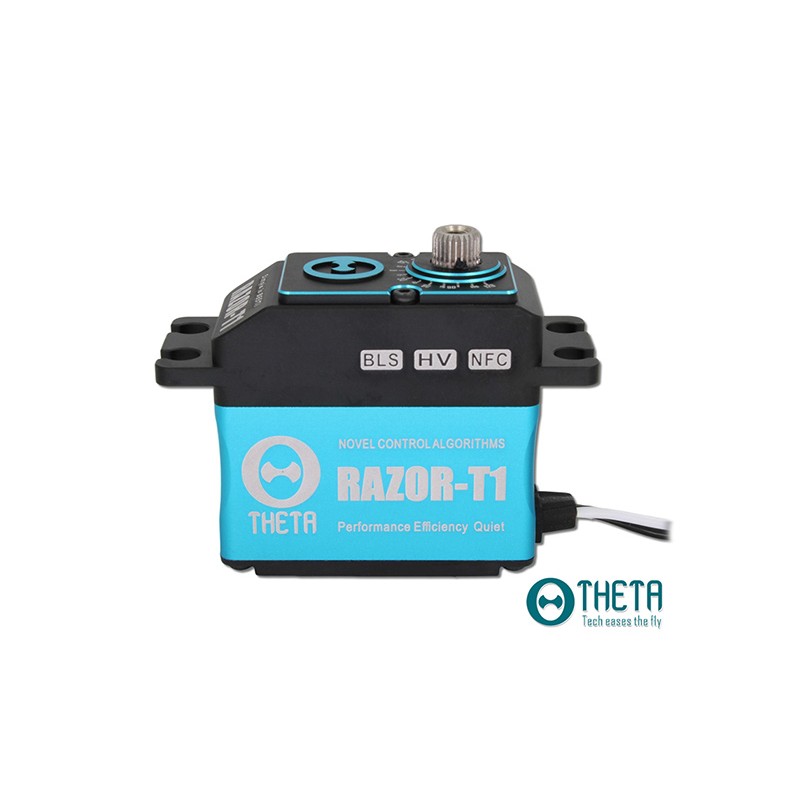

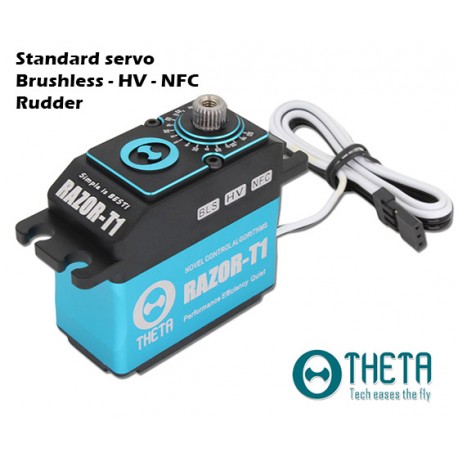

THETA RAZOR T1 Brushless HV NFC Servo

THETA RAZOR T1: a digital rudder servo for radio-controlled helicopter.
Standard size, brushless HV motor (8.4V), metal gears, all-metal housing. NFC programming function.
The versatility of this servo is quite wide. It can thus be used for several applications (airplanes, cars, etc.).

With the Razor C1 and T1, Theta manufacturer offers Standard size HV servos (up to 8.4V) with considerable performance. High energy saving, super quiet and heavy duty. With its very high performance, the Razor T1 is an excellent servos for the rudder of large rc helicopters (550-6006-650-700-800).

The Theta Razor servos are at the top of the category due to their ability to be fully programmed via an Android NFC compatible smart phone. You can set parameters such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel exactly as you need !

As we all know, the servo will wear out during use, and wear near the midpoint is more serious. The Theta Razor NFC Servo has a midpoint adjustment function. After a period of use, changing a gear position can greatly increase the life of the servo.
It is High Voltage servos. Selecting a higher BEC voltage will increase the torque and speed.
The default current setting of the Theta Razor NFC servo (2,6A) offers quite ideal performance. But if it still cannot meet your requirements, you can increase the maximum current  appropriately (provided that the BEC power is good enough) to get the best of it !

Specifications:

- Operating voltage: 5 - 8,4 Volt DC
- Torque:
17 kg.cm (5,0V) - current 2,6A / 20 kg.cm (5.0V) - current 5A
18 kg.cm (6,0V) - current 2,6A / 24 kg.cm (6.0V) - current 5A
19 kg.cm (7,4V) - current 2,6A / 27 kg.cm (7,4V) - current 5A
20 kg.cm (8,4V) - current 2,6A / 30 kg.cm (8,4V) - current 5A
- Speed:
0,062 sec/60° (5,0V) - current 2,6A / 0,058 sec/60° (5,0V) - current 5A
0,054 sec/60° (6,0V) - current 2,6A / 0,051 sec/60° (6,0V) - current 5A
0,047 sec/60° (7,4V) - current 2,6A / 0,044 sec/60° (7,4V) - current 5A
0,042 sec/60° (8,4V) - current 2,6A / 0,039 sec/60° (8,4V) - current 5A
- Neutral pulse: 760µs (factory setting) - 1520µs (programming)
- Frequency: 50 à 1000 Hz
- Rotating direction: adjustable

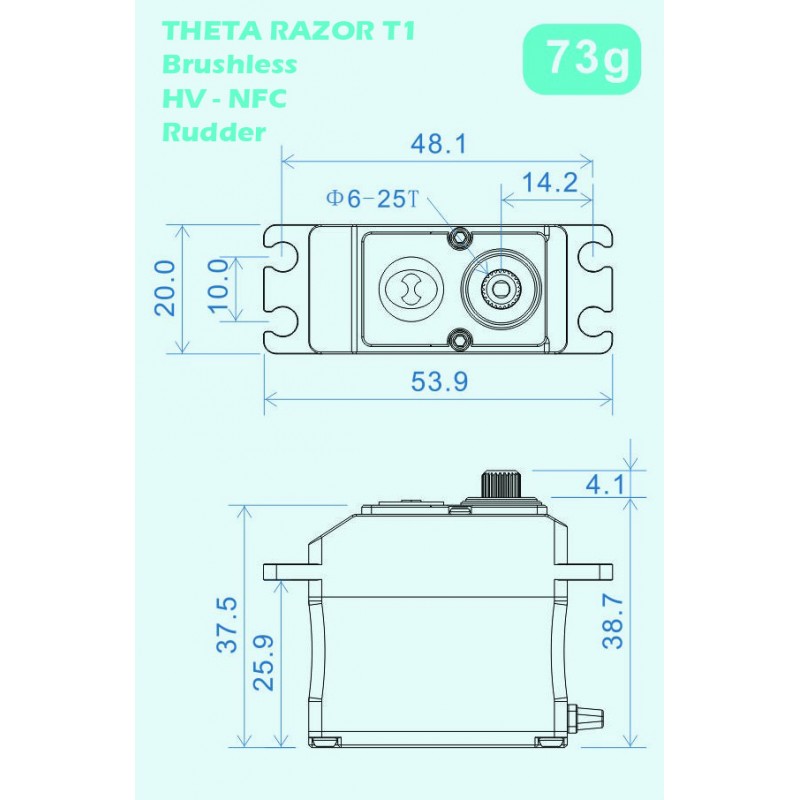

- Size: 40 x 20 x 38 mm
- Wire length: 320 +5 mm
- Weight: 73g
- Motor type: brushless
- Output shaft: 25T / Ø 5,9mm
- Toothing: compatible Futaba, Align, Savöx, BK...

In the THETA RAZOR T1 box:

1x Servo RAZOR T1
4x Servo horn
1x Screw M3
4x Rubber damper
4x Brass grommet
4x Tapping screw for servo
1x Capacitor
