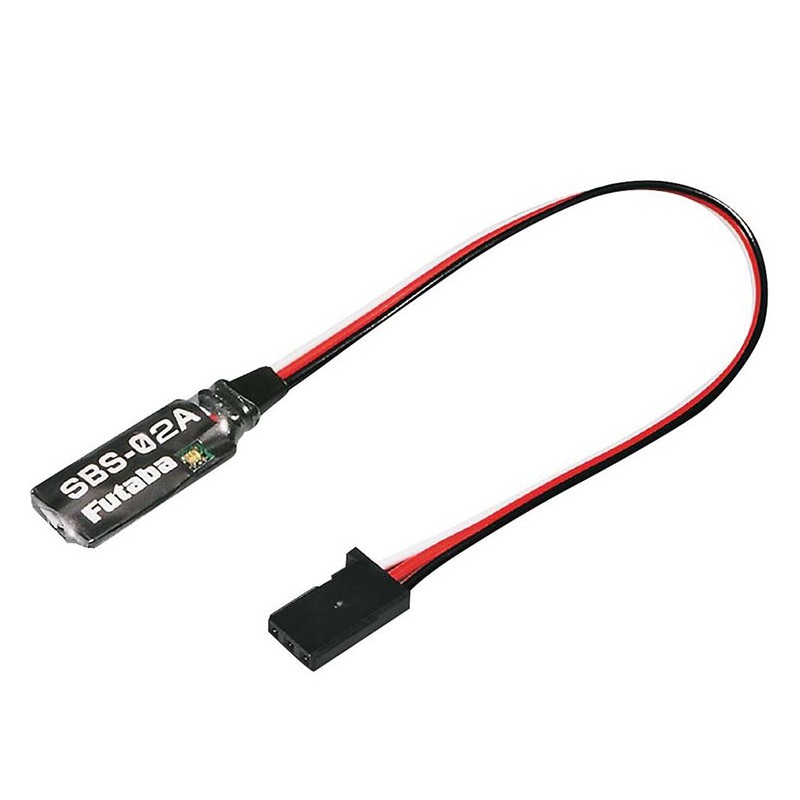

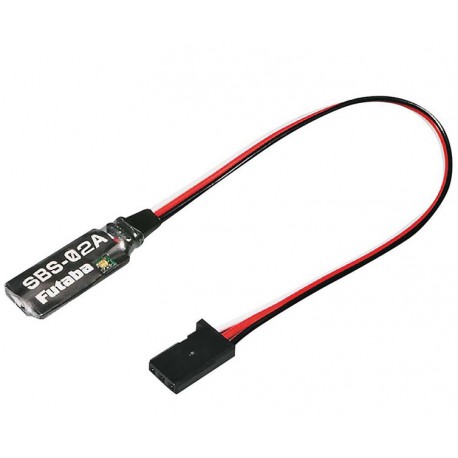

SBS-02A Futaba Atmospheric Pressure Sensor

The Futaba SBS-02A atmospheric pressure sensor provides altitude and rate of climb/descent data, using the S-Bus2 port.

Compatible with following systems: 18MC-WC, 18MZ, 18SZ, 14SG, 10J, 6K.

This sensor calculates the altitude from atmospheric pressure. Atmospheric pressure will get lower as you go up in altitude. Using this the sensor will estimate the altitude. Please understand that an exact advanced display cannot be performed if atmospheric pressure changes in a weather situation.

This new SBS-02A sensor improves accuracy of the previous SBS-01A.

Specifications:

Altitude range: about 700 - 5,500 m (sensor spec)
Variometer range: -150 m/s to +150 m/s
Length: 6.9" (175mm)
Weight: 0.09oz (2.6g)
Input voltage: DC 3.7 - 7.4 Volts
