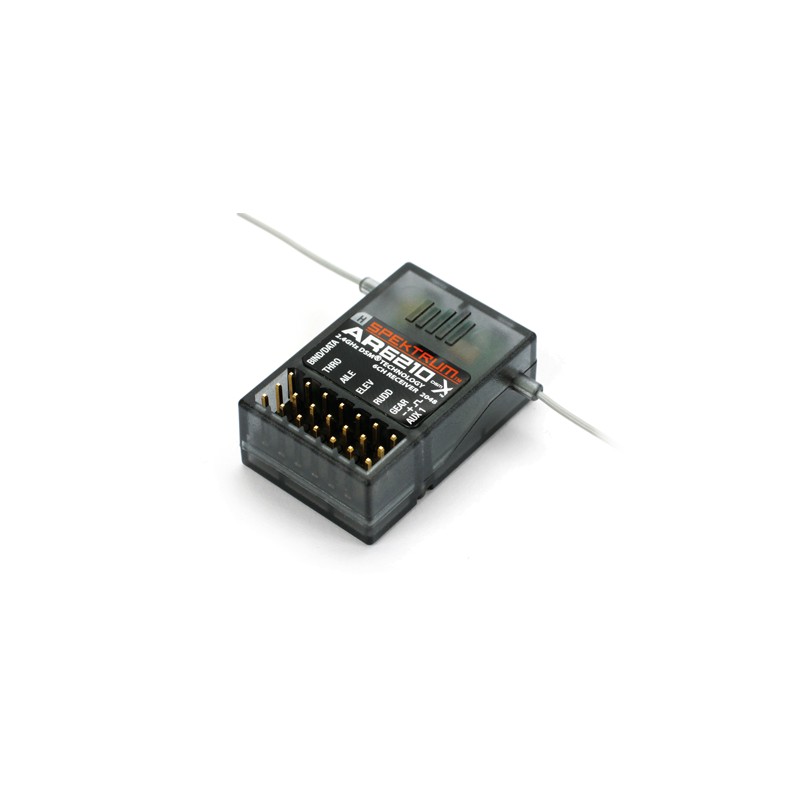

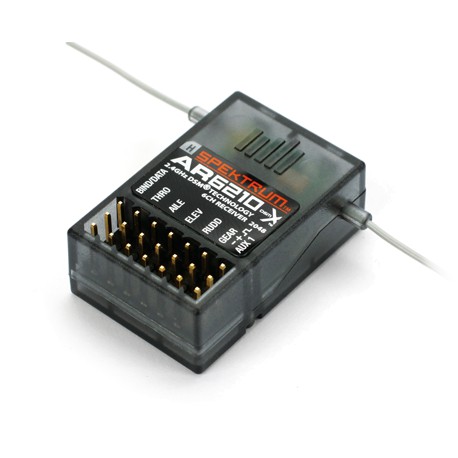

AR6210 6-Channel DSMX Spektrum Receiver (SPMAR6210)

The AR6210 DSMX 6-channel receiver is a great solution for all model aircraft requiring full range up to six channels. This DuaLink receiver simultaneously gathers information from two receivers that is processed by patent pending Spektrum software that combines it to form the most vivid picture of an RF signal. This dual-path redundancy, plus the fact each of the two receivers is located in a slightly different location, exposes each to a different RF environment and creates a bulletproof RF link in all conditions.

Note: The AR6210 receiver is not compatible with the original DX6 park flyer radio system. The AR6210 receiver is compatible with all radios that support DSM2/DSMX technology.

• 6 channels
• Internal and remote receiver
• Patented DuaLink technology
• ModelMatch™ technology prevents flying a model using the wrong model memory (feature does not work with module systems)
• ServoSync technology (feature does not work with module systems)
• SmartSafe failsafe system
• US patent 7,391,320
• Flight Log Compatible
• Works with TM1000 & TM1100 Telemetry units

Specifications:

Type: Full Range Aircraft Receiver
Number of channels: 6
Modulation: DSM2/DSMX
Band: 2.4GHz
Length: 1.19 in (30.1mm)
Width: 1.03 in (21.6mm)
Height: 0.48 in (12.3mm)
Weight: 0.35 oz (10g)
Voltage Range: 3.5–9.6V
Antenna Length: Main Rx: 30mm (2); Remote Rx: 30mm (2)
