MKS HV9767 + HV9780 Combo pack

HV97679780C

New product

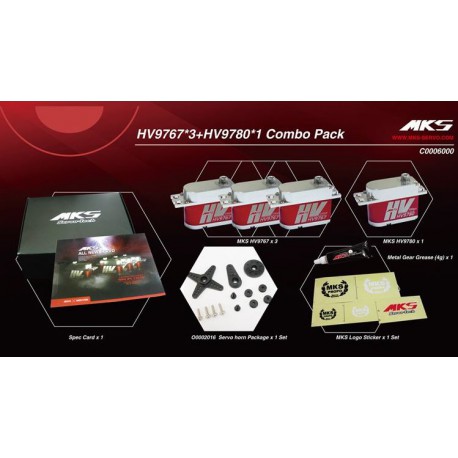

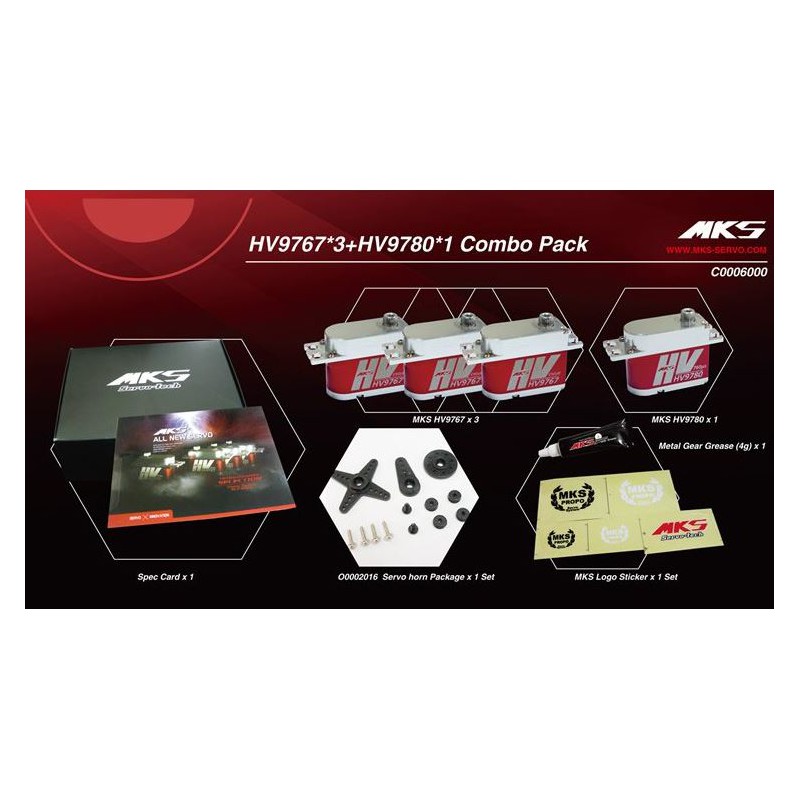

MKS HV9767 (x3) + MKS HV9780 (x1) High voltage Digital Mini Servo Combo

More details

This product is no longer in stock

385,00 € tax incl.

More info

MKS HV9767 + HV9780 High voltage Servo Combo: Titanium gear High Voltage Servos with aluminum case.
An high quality pack including 4 servos, recommended for Class 500 radio controlled helicopter application.

Recommended compatible gyros for HV9780 using: BeastX Microbeast, Bavarian Demon Axon & 3X, Spartan DS760、Spartan QuarkFutaba GY611GY601GY520ALIGN GP700GP750Mikado V-Bar TailCSM SL720Curtis Youngblood Mini-G-Solid G, Thunder Tiger TG-7000.

Specifications:

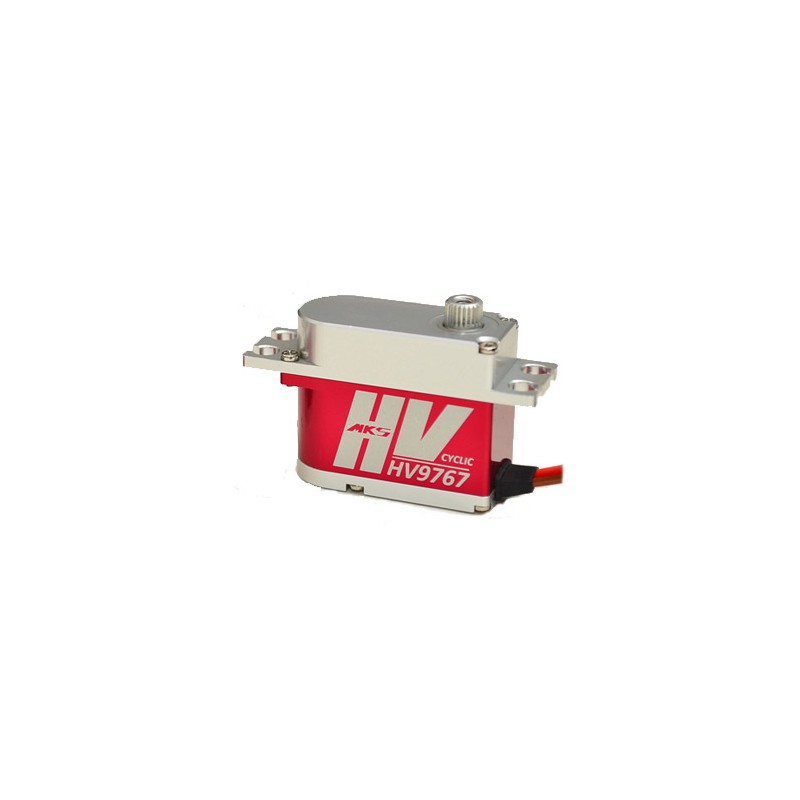

HV9767:
Torque: @6.0V: 94.4 oz-in (6.8 kg-cm), @7.4V: 118.0 oz-in (8.5 kg-cm), @8.2V: 130.5 oz-in (9.4 kg-cm)
Speed: @6.0V: 0.090 s, @7.4V: 0.078 s, @8.4V: 0.070 s
Weight: 38.55 g

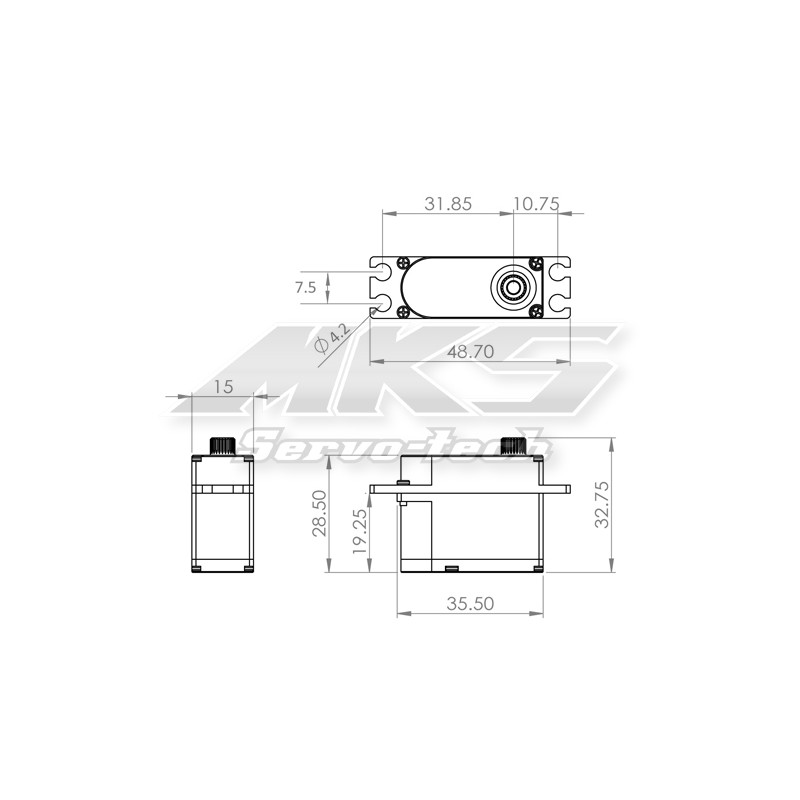

Dimension: 35.5x15x28.5mm
Working Voltage: 5.5 ~ 8.4 V DC Volts  (2S Lipo un-regulated)
Working Frequency: 1520μs / 333hz
Dead Band: 0.001 ms (Default)
Bearing: double ball bearing
Motor: Coreless Motor
Gear: Chrome-Titanium alloy gear
Electric Current Draw: 2.6A max.(8.2V)│2.4A max.(7.4V)│2.0A max (6.0V)
Wire Length: 29.5 cm

HV9780:
Torque Oz/In: 45.8 (6.0V) / 55.5 (7.4V) / 62.5 (8.2V)
Speed: 0.055 s (6.0V) / 0.045 s (7.4V) / 0.040 s (8.2V)
Weight: 38.01 g  (1.34 oz)
Dimension: 35.5x15x28.5mm
Working Voltage: 5.5 ~ 8.4 V DC Volts  (2S Lipo un-regulated)
Working Frequency: 760μs / 560Hz
Dead Band: 0.001 ms (Default)
Bearing: double ball bearing
Motor: Coreless Motor
Gear: Chrome-Titanium alloy gear
Electric Current Draw: 2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Wire Length: 29.5 cm
