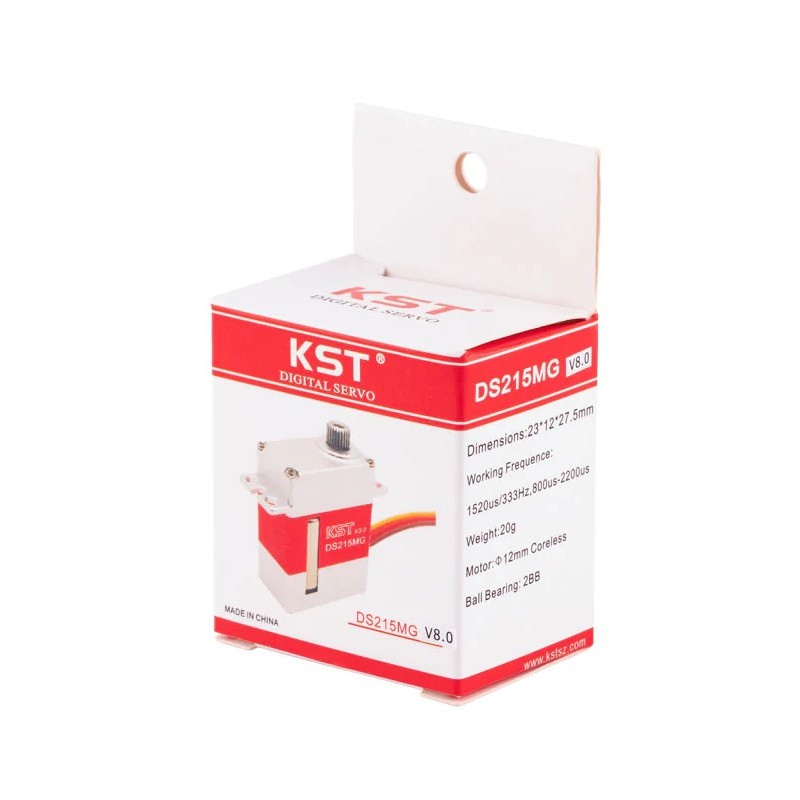

KST DS215MG V8 Digital Servo

KST is a high-end servo manufacturer. It is among the first companies to have developed electronic chips for brushless servos in the world. Today, KST is one of the industry's two leading suppliers of brusless servo chips and remains a leader in this technology field by providing new designs and OEM equipment for the entire servo industry.
Most KST coreless servos use electric motors from Adamant Namiki japanese manufacturer, developed with KST.

The reliability and extreme performance of KST servos make them very suitable for use in areas as different as the special effects of the film industry, robotics, professional drones, university research, military equipment and other demanding applications.

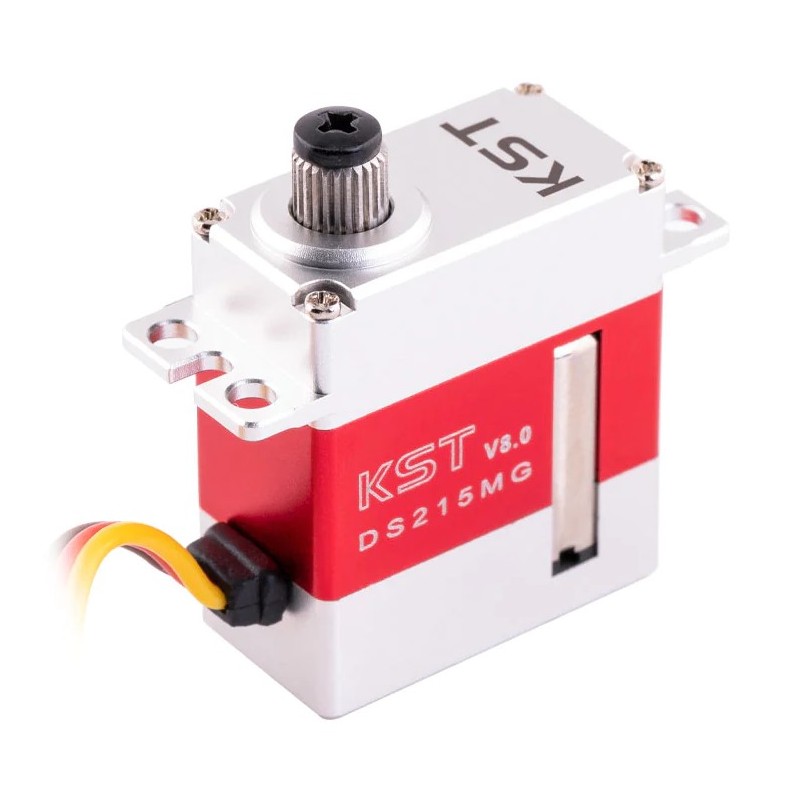

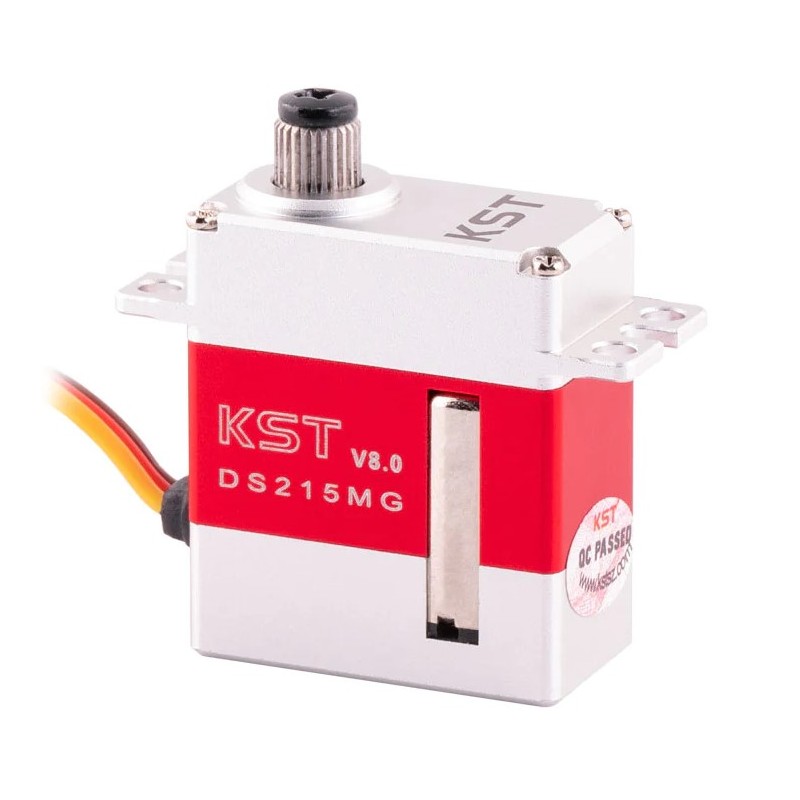

KST DS215MG V8: a digital "Micro" size servo produced by KST for 450 class helicopter cyclic use.
Built with full aluminum case, coreless motor, metal gears, double ball bearing. Best performances and excellent value for your 450 radio controlled helicopter swashplate.

Specifications:

Torque: 4,0 Kg/cm (8,4V) / 3,7Kg/cm (7,4V) / 3,1Kg/cm (6,0V)
Speed: 0,05s/60° (8,4V) / 0,055s/60° (7,4V) / 0,06s/60° (6V)
Voltage: DC 6V to 7,4 Volts (max 8,4)
Frequency: 1520us/333Hz,  800us-2200us

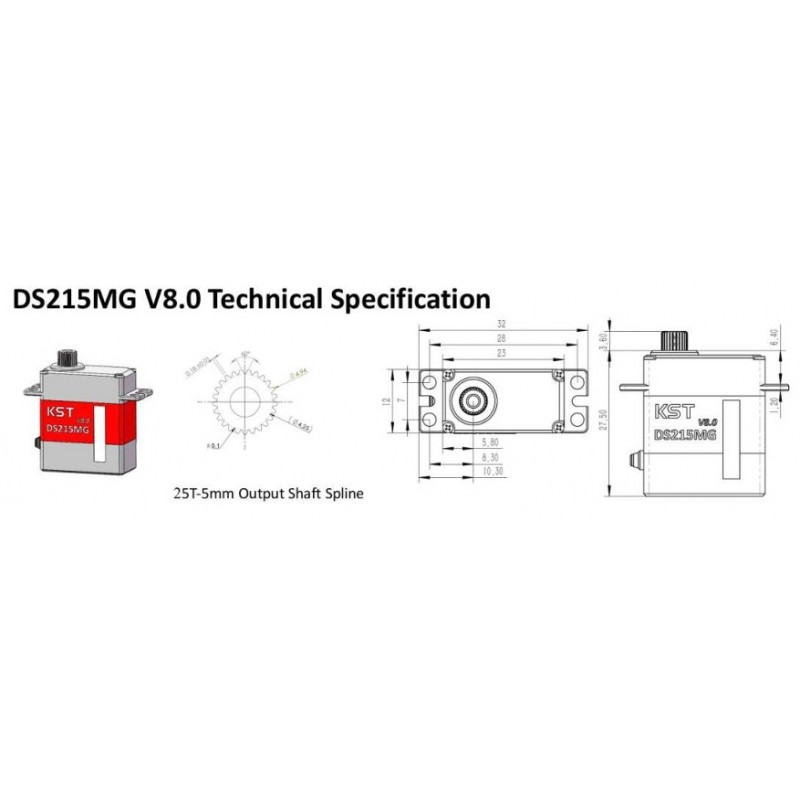

Size: 23x12x27,5 mm (Micro)
Motor type: 12mm. Coreless
Bearing: Dual Ball Bearing
Weight: 20g
