KST BLS505 Brushless HV Servo

KST is a high-end servo manufacturer. It is among the first companies to have developed electronic chips for brushless servos in the world. Today, KST is one of the industry's two leading suppliers of brusless servo chips and remains a leader in this technology field by providing new designs and OEM equipment for the entire servo industry.
Most KST coreless servos use electric motors from Adamant Namiki japanese manufacturer, developed with KST.

The reliability and extreme performance of KST servos make them very suitable for use in areas as different as the special effects of the film industry, robotics, professional drones, university research, military equipment and other demanding applications.

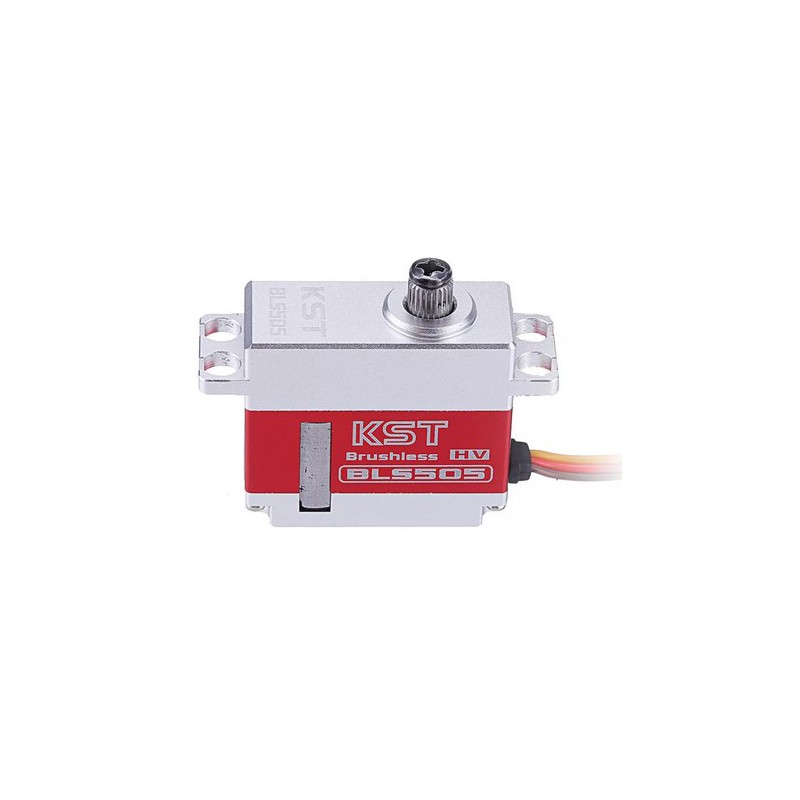

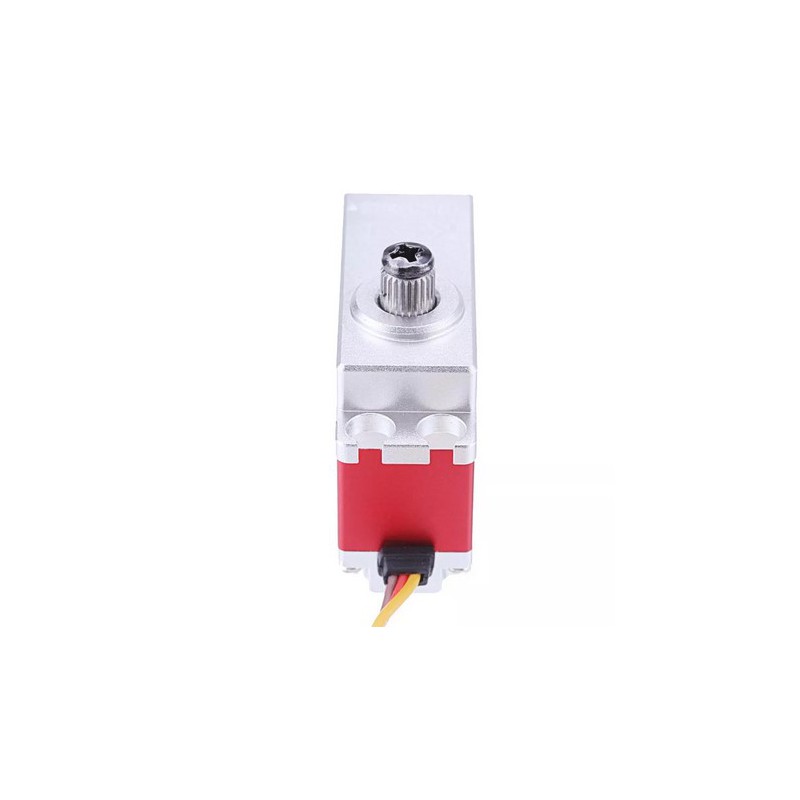

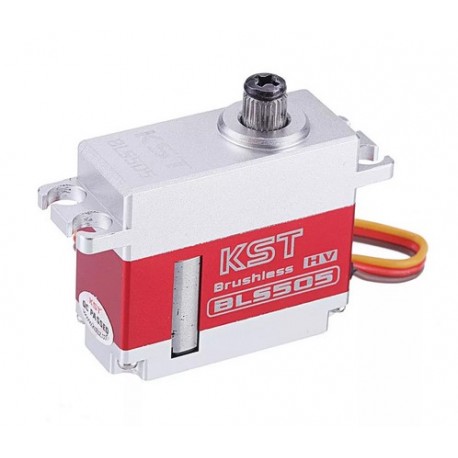

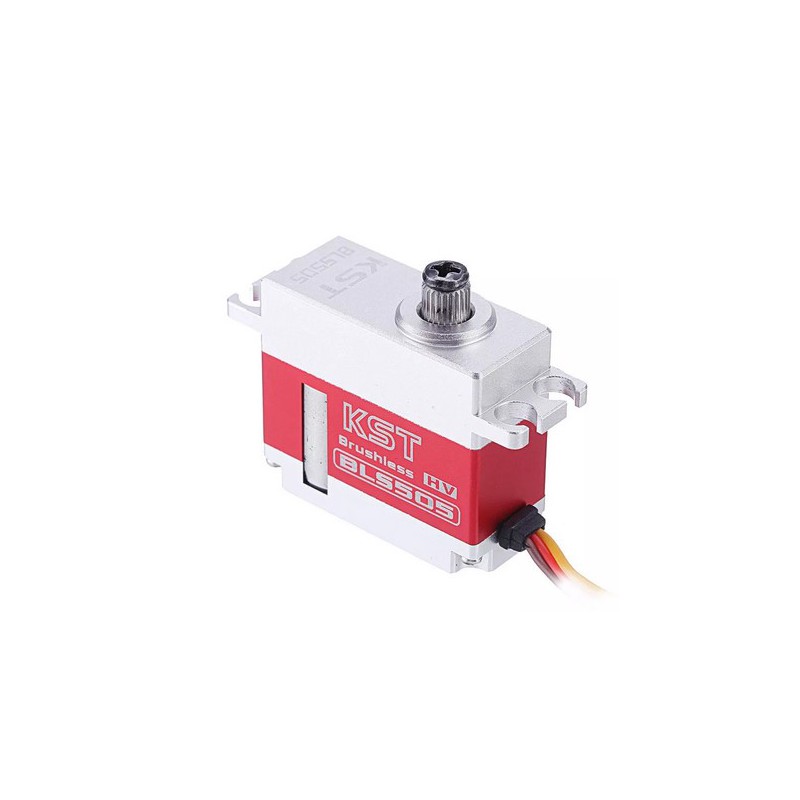

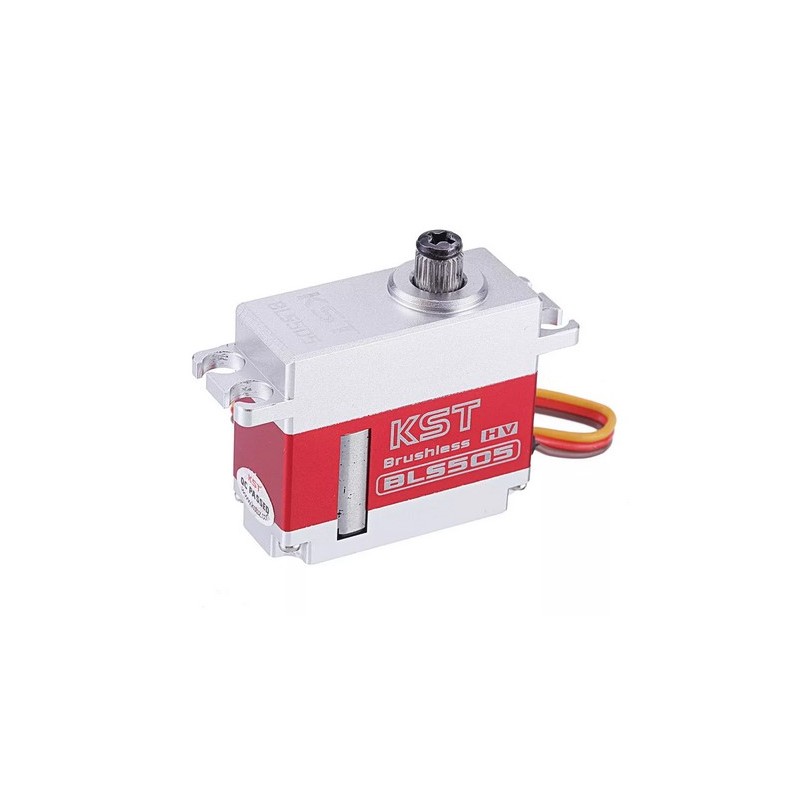

The KST BLS505 is a Mini Digital HV Brushless servo designed by KST  for radio controlled helicopter cyclic use. Suitable for Align T-Rex 500.

Spécifications:

Torque: 7kg/cm (8,4V) / 6,2Kg/cm (7,4V) / 5Kg/cm (6,0V)
Speed: 0,07s/60° (8,4V) / 0,08s/60° (7,4V) / 0,09s/60° (6V)
Voltage: DC 6V à 8,4V
Frequency: 1520us/333Hz,  900us-2100us

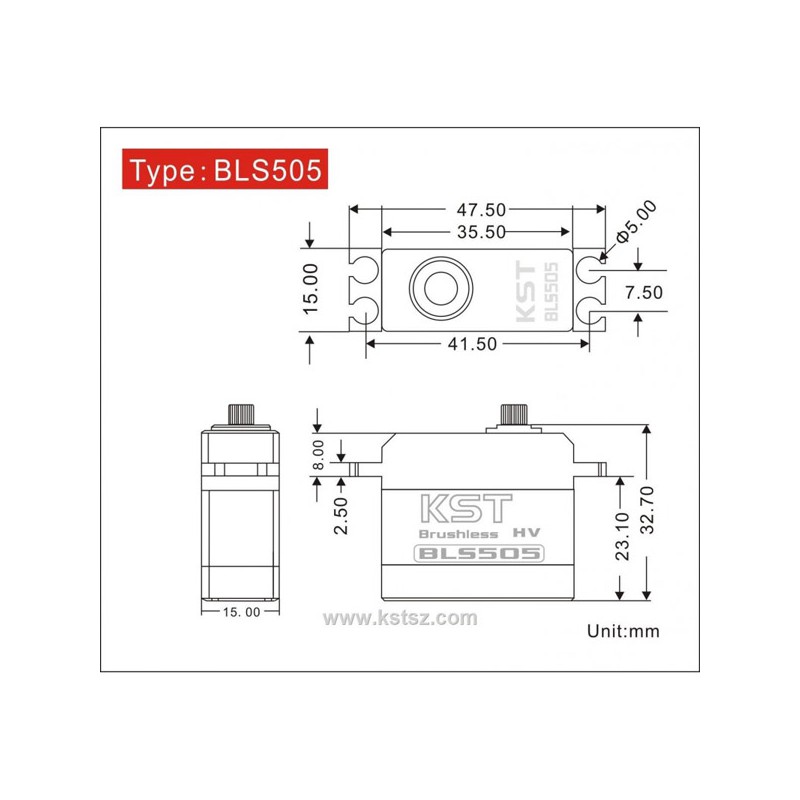

Size: 35,5x15x32,7 mm
Motor diameter: 15 mm
Bearing: dual ball bearing
Weight: 40g
