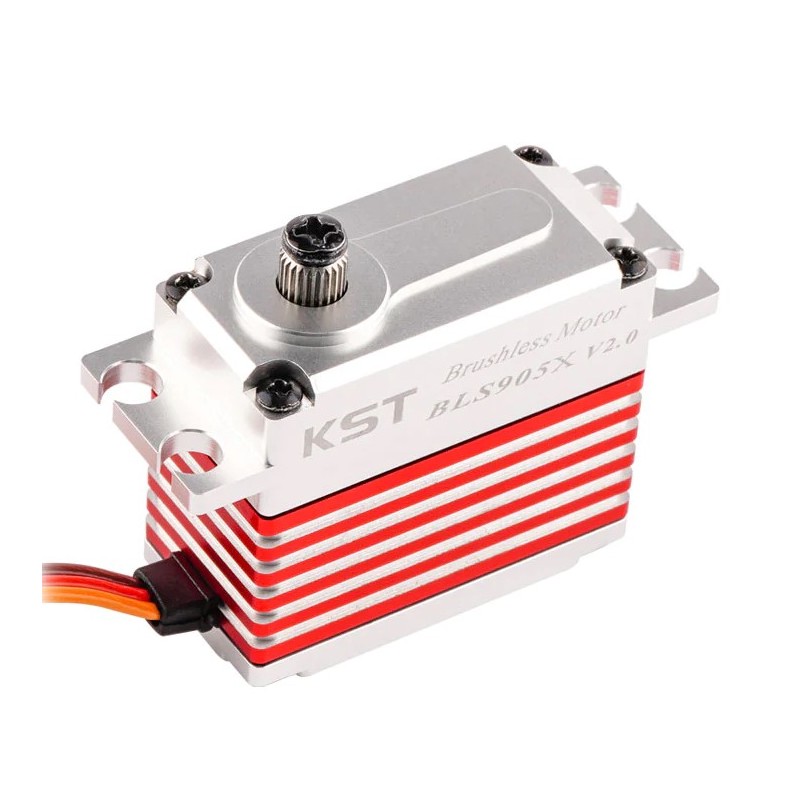

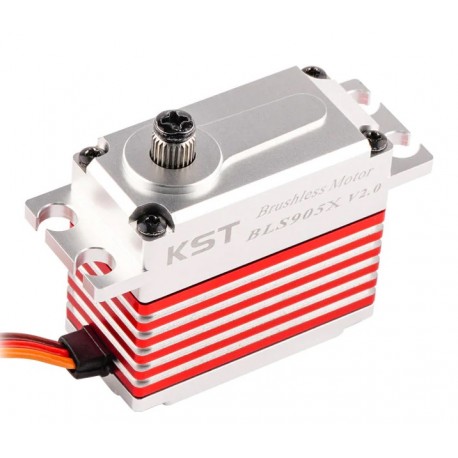

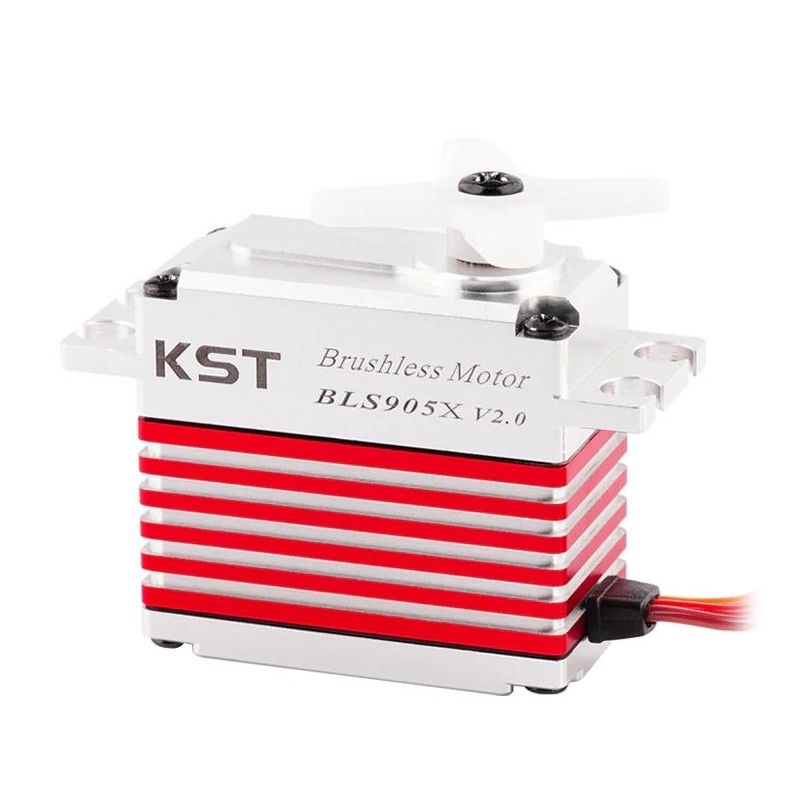

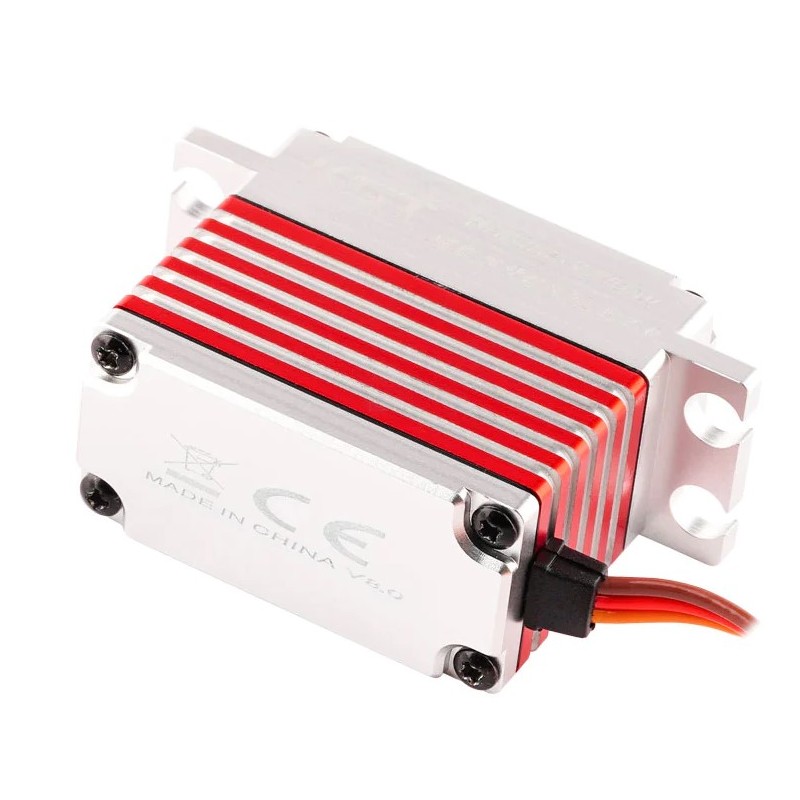

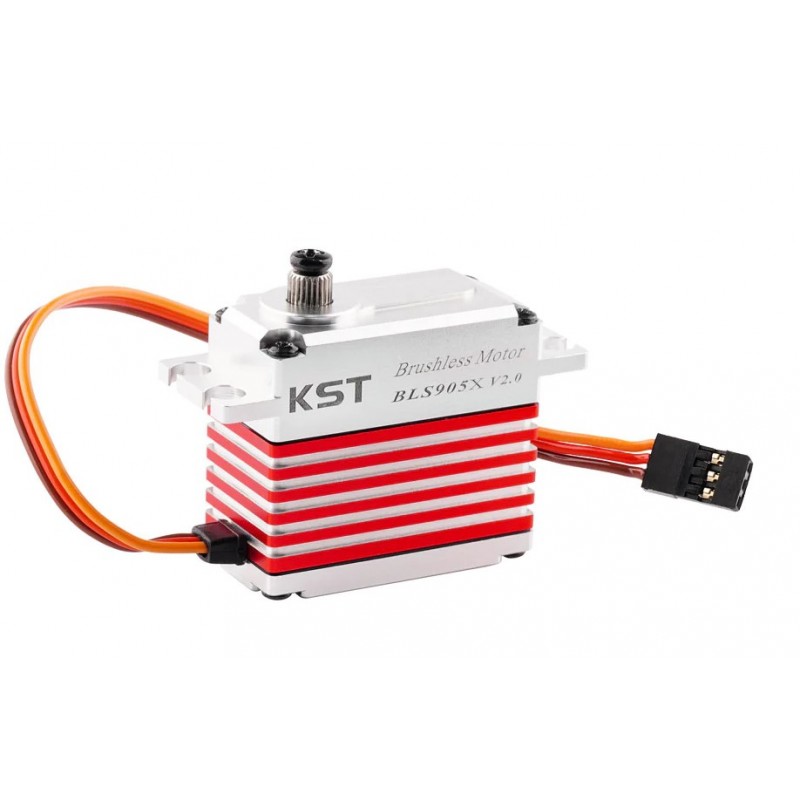

KST BLS905X V2 Brushless HV Servo

KST is a high-end servo manufacturer. It is among the first companies to have developed electronic chips for brushless servos in the world. Today, KST is one of the industry's two leading suppliers of brusless servo chips and remains a leader in this technology field by providing new designs and OEM equipment for the entire servo industry.

Most KST coreless servos use electric motors from Adamant Namiki japanese manufacturer, developed with KST.The reliability and extreme performance of KST servos make them very suitable for use in areas as different as the special effects of the film industry, robotics, professional drones, university research, military equipment and other demanding applications.

The KST BLS905X V2 is a standard sized Digital HV Brushless servo designed for heli rudder use. Suitable for Class 550/600/700 radio controlled helicopters.

Specifications:

Speed: 0,035s/60° (8,4V) / 0,040s/60° (7,4V) / 0,045s/60° (6V)
Torque: 8,0kg/cm (8,4V) / 7,0Kg/cm (7,4V) / 6,0Kg/cm (6,0V)
Voltage: 6 to 8,4 Volts DC
Frequency: 760us/560Hz
Size: 40,5x20x37 mm
Motor type: brushless
Weight: 72g
