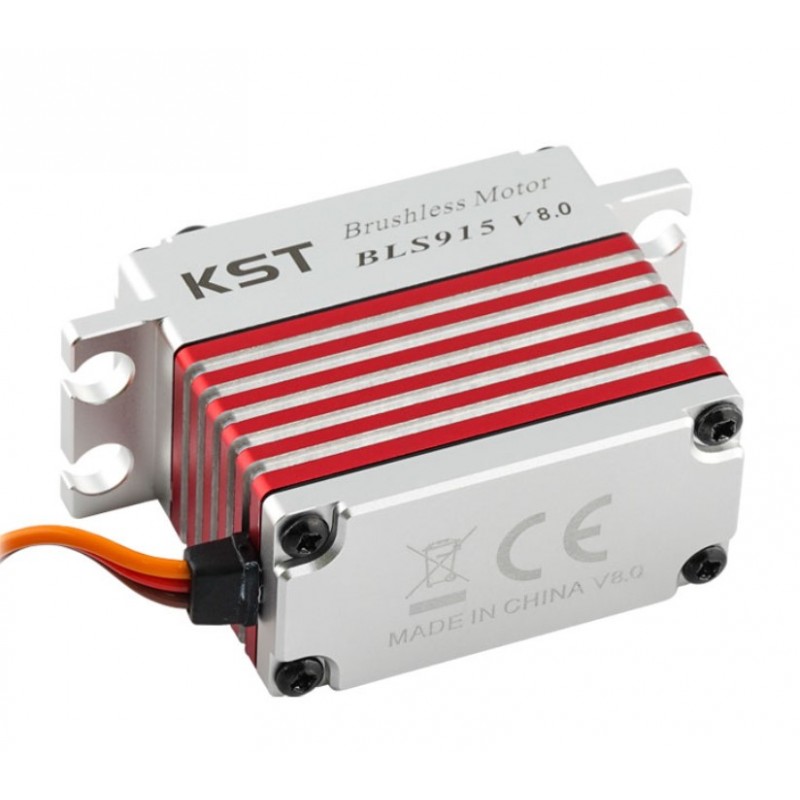

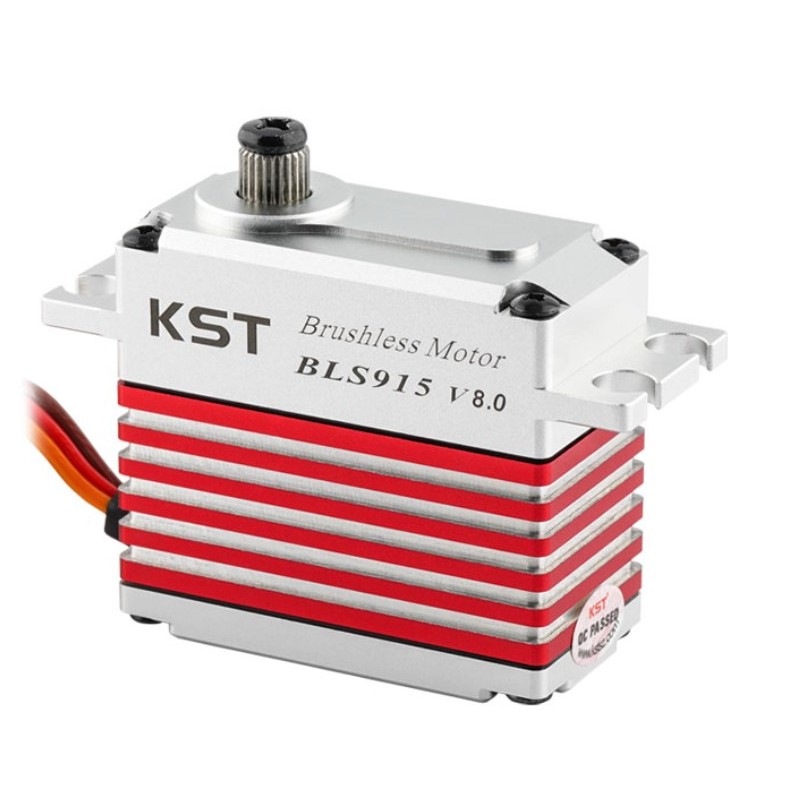

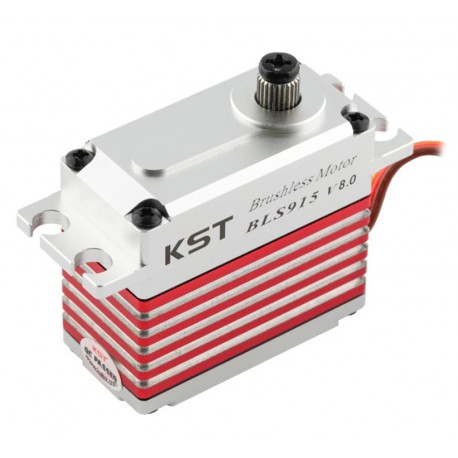

KST BLS915 V8 Brushless HV Servo

KST is a high-end servo manufacturer. It is among the first companies to have developed electronic chips for brushless servos in the world. Today, KST is one of the industry's two leading suppliers of brusless servo chips and remains a leader in this technology field by providing new designs and OEM equipment for the entire servo industry.
Most KST coreless servos use electric motors from Adamant Namiki japanese manufacturer, developed with KST.

The reliability and extreme performance of KST servos make them very suitable for use in areas as different as the special effects of the film industry, robotics, professional drones, university research, military equipment and other demanding applications.

KST BLS915 V8: an High Voltage standard size brushless servo produced by KST for 550/600/700 radio controlled helicopter swashplate use.
Integral aluminum case, metal gears, double ball bearing and high performances.

Specifications:

Torque: 25kg/cm (8,4V) / 22Kg/cm (7,4V) / 18Kg/cm (6,0V)
Speed: 0,07s/60° (8,4V) / 0,08s/60° (7,4V) / 0,09s/60° (6V)
Voltage: DC 6 to 8,4 Volts
Frequency: 1520us/333Hz

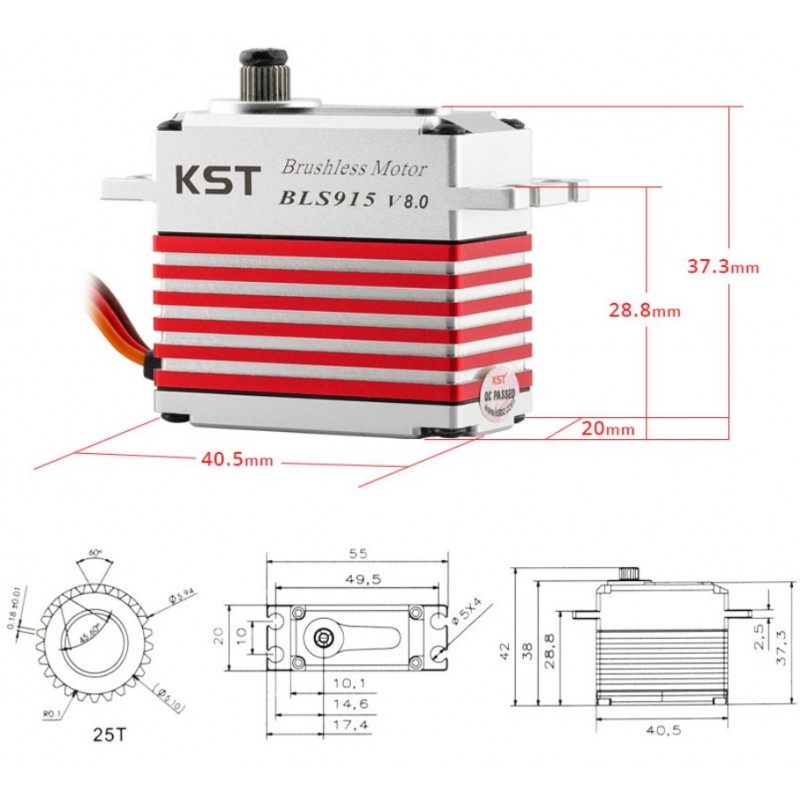

Size: 40,5x20x38 mm
Motor type: brushless
Position sensor: potentiometer
Bearing: dual ball bearing
Weight: 78g
