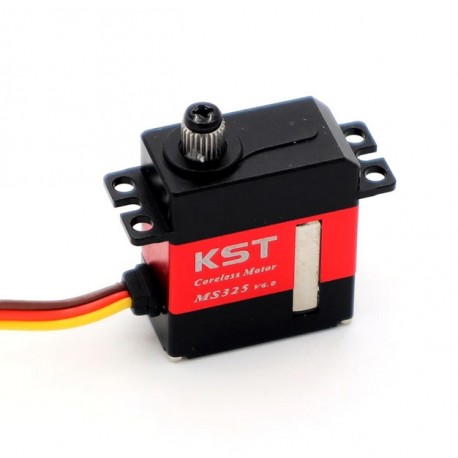

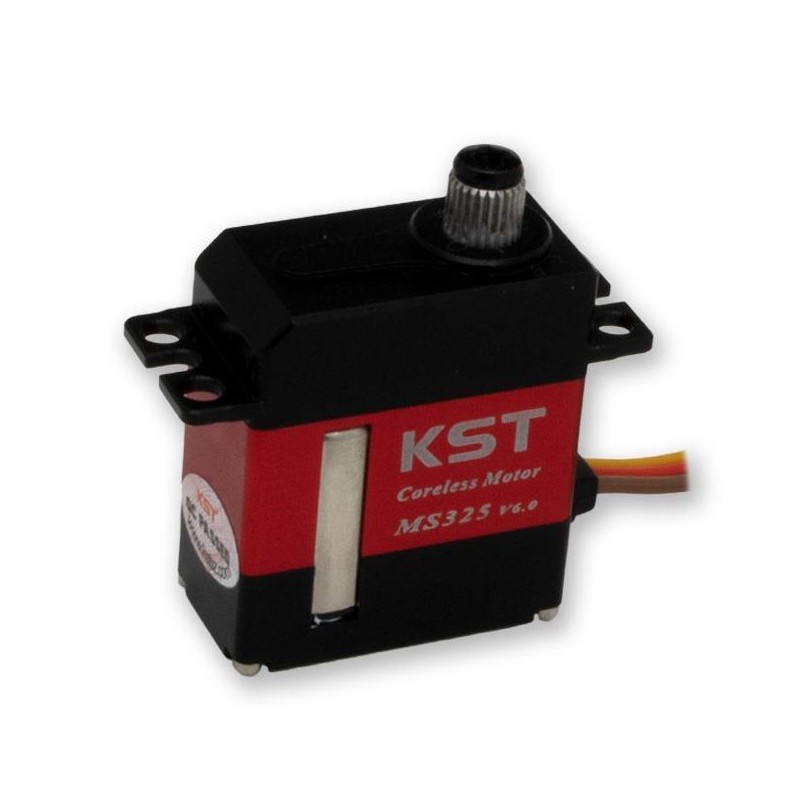

KST MS325 V6 Digital HV Micro Servo

KST is a high-end servo manufacturer. It is among the first companies to have developed electronic chips for brushless servos in the world. Today, KST is one of the industry's two leading suppliers of brusless servo chips and remains a leader in this technology field by providing new designs and OEM equipment for the entire servo industry.

Most KST coreless servos use electric motors from Adamant Namiki japanese manufacturer, developed with KST.The reliability and extreme performance of KST servos make them very suitable for use in areas as different as the special effects of the film industry, robotics, professional drones, university research, military equipment and other demanding applications.

KST MS series: forget potentiometers and neutral erratic returns. Hall effect sensors take place ! The new KST MS325 Digital Servo is equipped with a wear-free magnetic positioning system. Hall effect sensors are taking place instead of scratchy potentiometers !

The KST MS325 V6 is ideal for moving swashplate of Class 450 radio controlled helicopter (T-Rex 450/470, Gaui X3 or Goblin 380) as cyclic servo where fast and precise control is required.

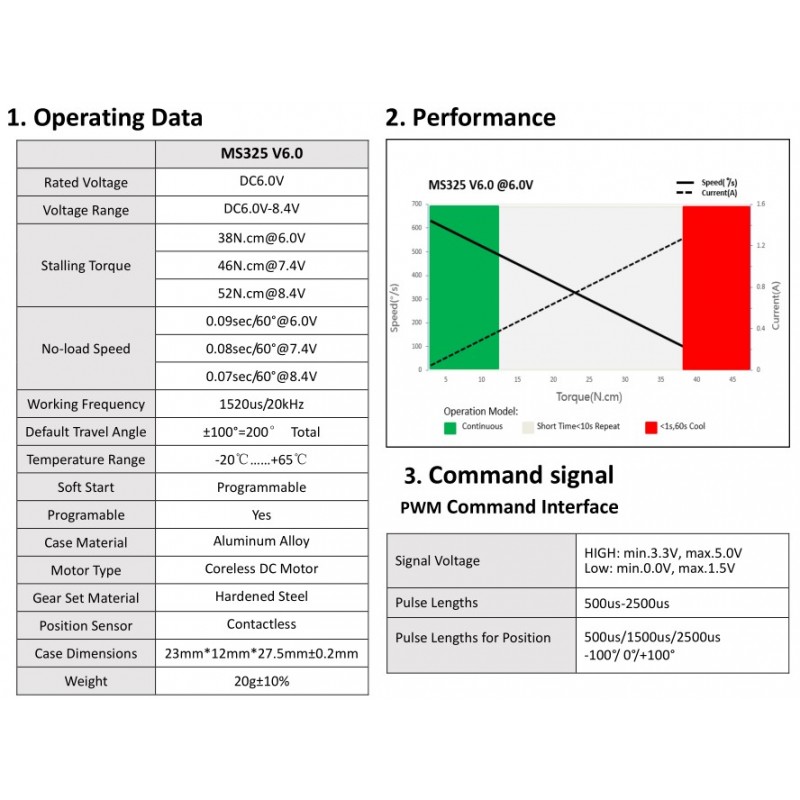

Specifications:

Operation Voltage: DC 6.0 to 8.4 Volts

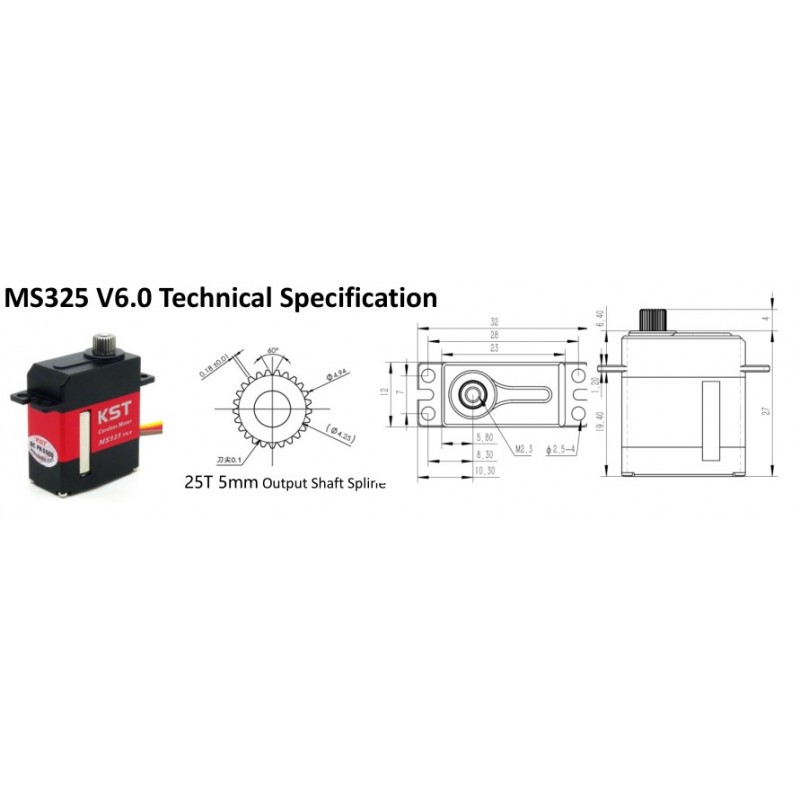

Size: 23x12x27.50mm
Torque: 3.8Kg.cm@6.0V / 4.6Kg.cm@7.4V / 5.2Kg.cm@8.4V
Speed: 0.09sec/60°@6.0V / 0.08sec/60°@7.4V / 0.07sec/60°@8.4V
Frequency: 333Hz / 1520us
Position sensing: Hall effect sensors (no potentiometer)
Motor type: Coreless
Ball bearing: 2BB
Weight:20.6g
