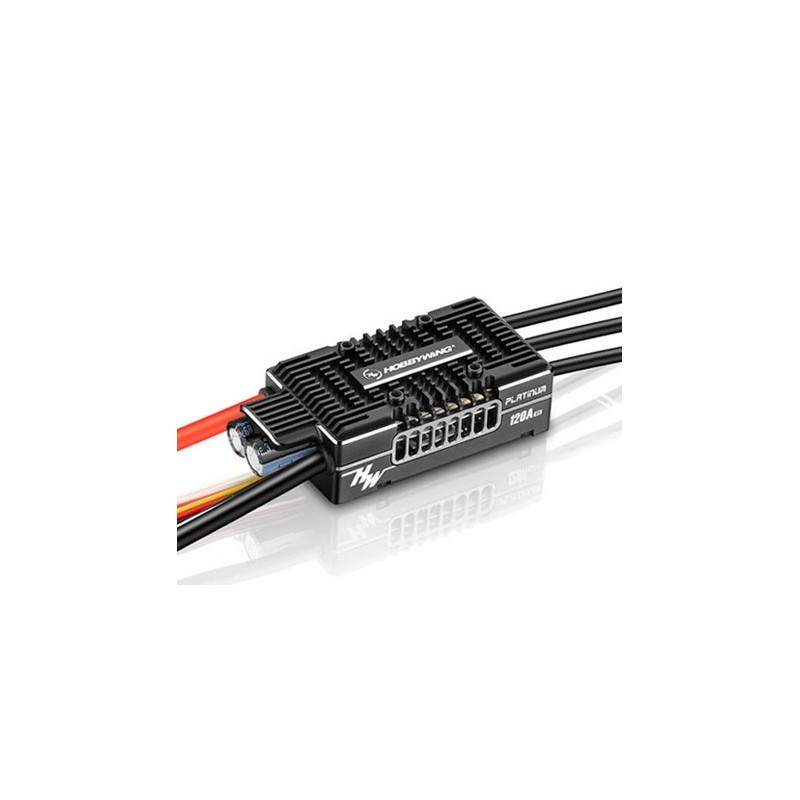

Hobbywing Platinum 120A V5 10A BEC (3-8S)

The Hobbywing Platinum V5 120A is small, powerful and, like the other ESC in the Platinum V5 series, it is characterized by particularly efficient heat dissipation.
This ESC is sized for 420-520mm main blade length rc electric helicopters. But of course, due to its specifications, it can also be used in medium-sized fixed-wing aircrafts.

The Platinum 120A V5 comes with a switchable BEC that can be set in the range of 5 to 12 volts. In addition, the BEC also has a new anti-reverse circuit that can be used in parallel with external batteries, thus offering double protection. Compared to previous controller versions, the RPM accuracy algorithm also makes the Platinum 150A more powerful and reliable. The adjustable sensitivity for a constant speed enables every pilot to find a setting that suits their own flying style and the current flight conditions.

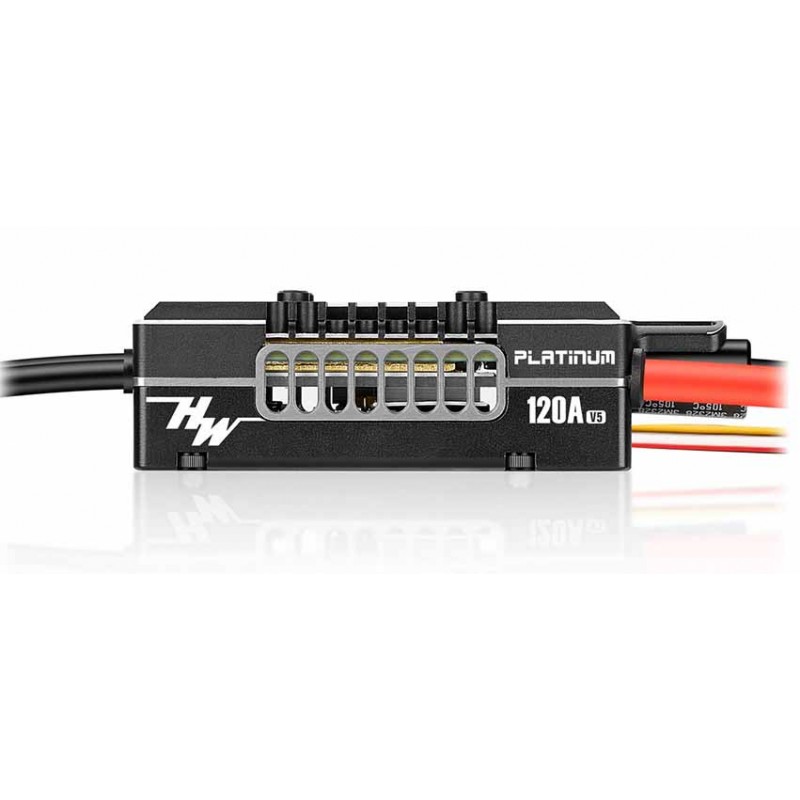

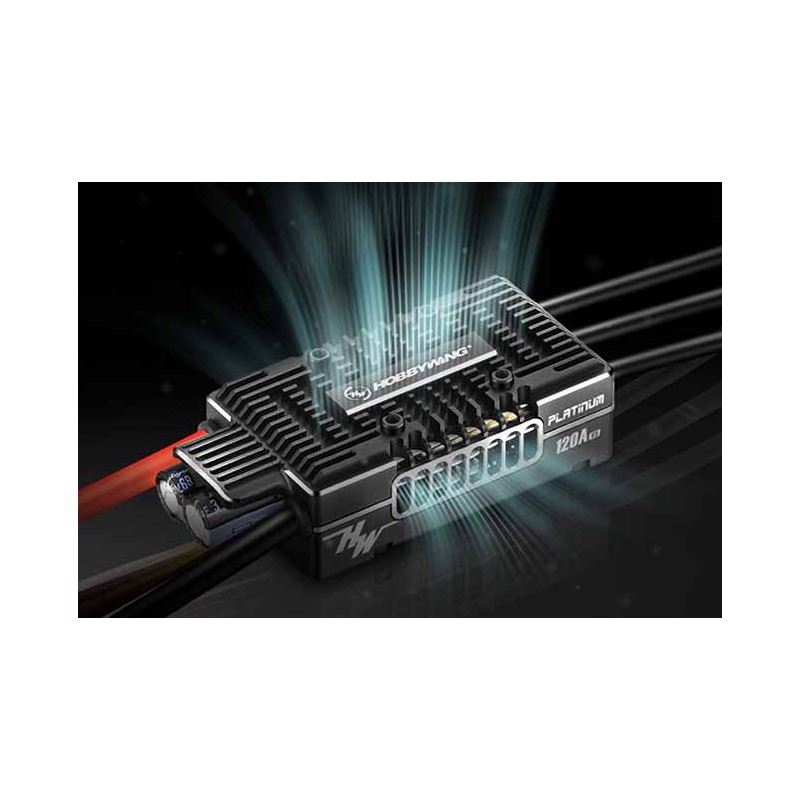

The specific design also improves cooling air circulation so that the temperature does not reach a critical level. The open design of the Platinum 120A V5 ESC is immediately apparent. The additional use of thermal tape and another heat sink inside extends the service life and improves heat dissipation on the otherwise sensitive external capacitors.

Features:

• Switch-mode 10 amps BEC, 5 to 12V adjustable
• 32-bit processor and new algorithm for accurate RPM to ensure reliable power
• Compatible with Futaba S-Bus 2, Mikado VBar Control and VBar Telemetry Ready and many more
• Equipped with "DEO" (Driving Efficiency Optimization) for the best control characteristics and performance
• Efficient cooling through ventilation slots on two sides
• Multiple protective functions

Specifications:

Type: brushless
Cont./Peak Current: 120A/150A
Input voltage: 3-8S Lipo
BEC output: Switch mode: 5 to 12V - Cont. 10A，Peak 30A
Input wires: Red-10AWG-150mm*1 / Black-10AWG-150mm*1 (no input connectors)
Output wires: Black-12AWG-100mm*3 - output connectors: 4.0mm gold connectors (Female)
ESC Programing options: LCD Program Box - OTA programer - Separate program port
Firmware upgrade: supported
Telemetry functions: Mikado VBar - Futaba S.Bus2 - etc.
Size: 83.2x37.1x22.5mm (without fan)
Weight: 150.4g (without fan)
