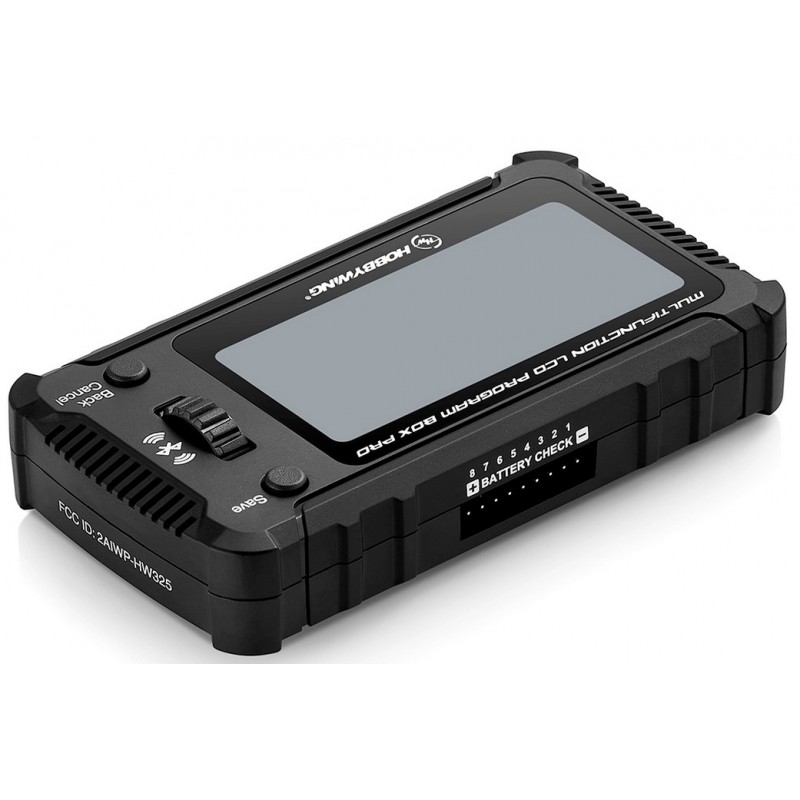

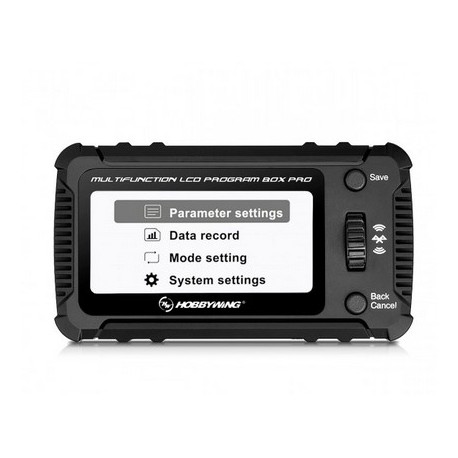

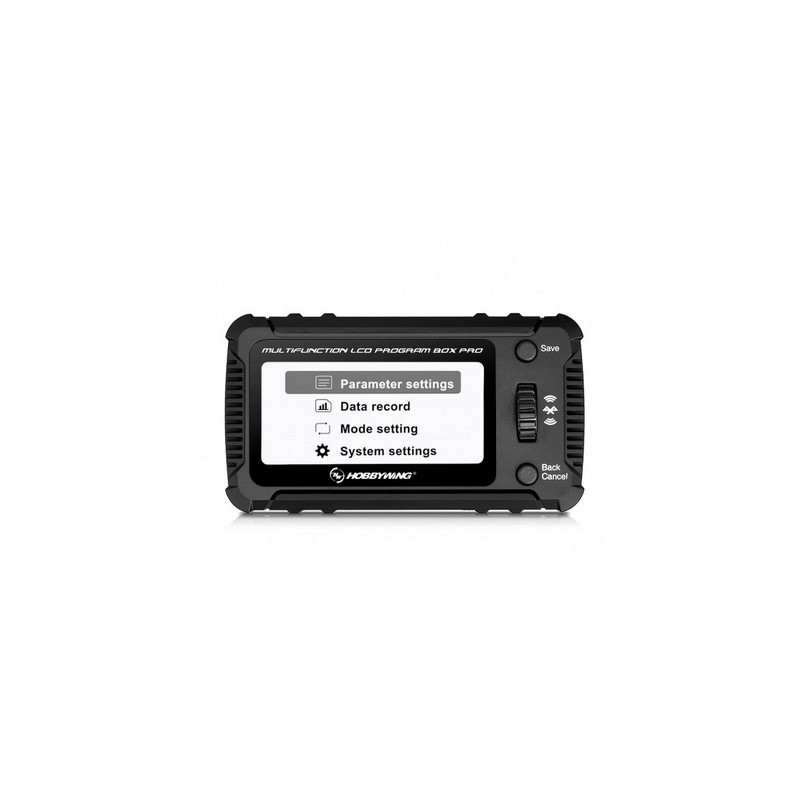

Hobbywing LCD Program Box Pro

The new multifunctional LCD Programming Box Pro, with its 2.8'' large LCD screen, provides the convenience of programming brushless ESCs quickly and easilywhether on the go or at home on the computer.
With a USB-C adapter, the box can also be connected to a computer to update the firmware for example. Another feature is that the LCD Programming Box can measure the voltage of individual lithium cells or entire packs. So, three excellent functions in one compact device.
The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.

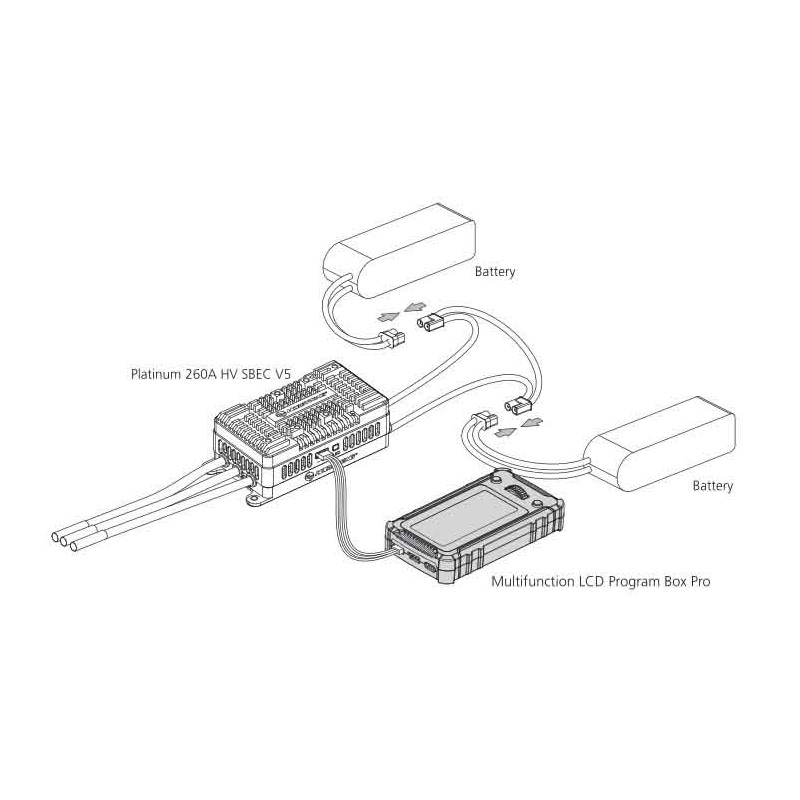

The built-in Bluetooth module functions as an OTA Programmer. The ESC establishes a wireless connection with a smartphone through the LCD programming box. Thus, the HW Link V2 app can be used to adjust the ESC and update the Firmware.

Note: Please refer to the programming settings of Your controller to find out which values can be set. Do not power the programming box unless the instructions for Your controller require the programming box to be powered by an external power supply.

Features:

• Vivid display with a screen diagonal of 2.8'' (approximately 7cm)
• Backlight adjustment with 20 available levels
• Easy operation thanks to the control wheel
• Save and export controller settings
• Built-in battery tester for 1-8S batteries
• Integrated Bluetooth signal
• Compatible with the HW Link V2 app (iOS and Android)

Specifications:

Size: 105.6x59x24.4mm（LxWxH)
Weight : 85 g
Input voltage: 5 to 12.6 Volt (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)

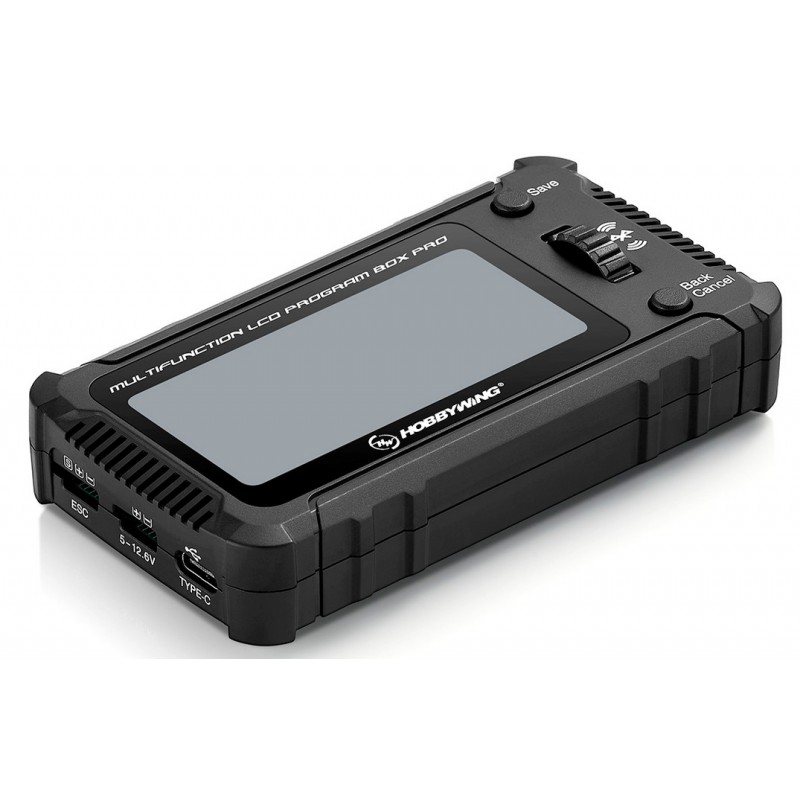

Ports Interface: TYPE-C USB - ESC interface (Futaba plug) - Power supply interface (Futaba plug)
Display screen : 2.8" LCD
1-8S Battery tester accuracy: +/- 0.1V
Supported ECS:

• XERUN car-ESCs: Version 2.0 and newer
• EZRUN car-ESCs: Version 2.0 and newer
• PLATINUM air-ESCs
• Seaking Pro boat-ESCs
• Selected QUICRUN car-ESCs
