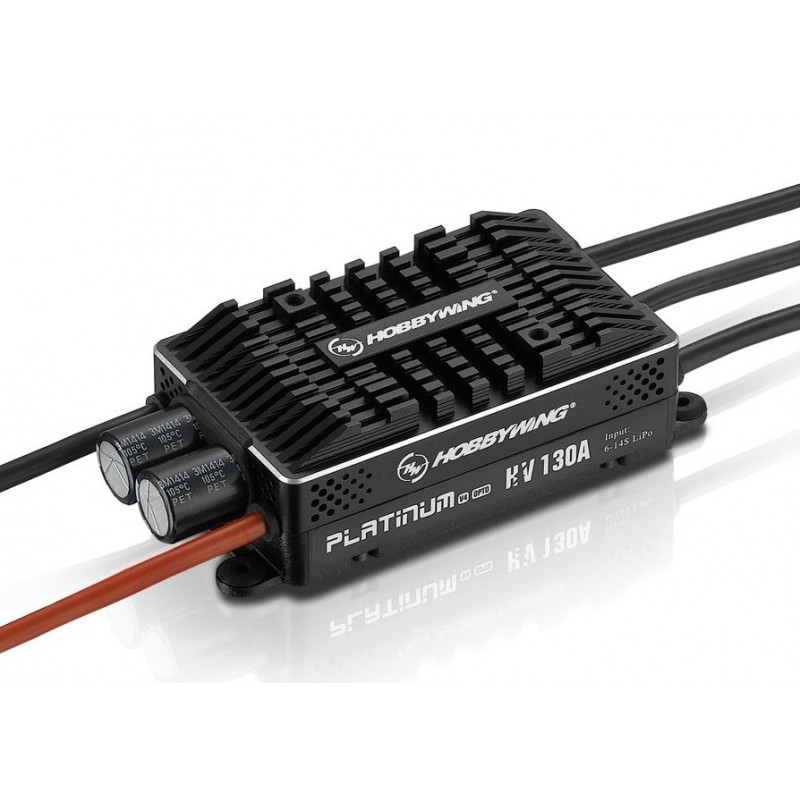

Hobbywing Platinum HV 130A V4 OPTO (5-14S)

Hobbywing Platinum HV 130A Opto V4 (no BEC) Brushless ESC for radio controlled helicopters and airplanes.

What is the particularity of Hobbywing ESCs ? They simply have the best "governor mode", which is of great interest to rc helicopter pilots !

Excellent Motor Governing Speed:
High-performance 72 MHz -32 bit processor combined with advanced algorithm optimizes the speed governing. Together with the adjustable governor parameters guarantees every pilot a precise control experience and high driving efficiency.

DEO Technology:
The DEO (Driving Efficiency Optimization, or so called "Active Freewheeling") technology implemented in the ESC has multiple advantages:

• Quicker response to the throttle change.
• Higher driving efficiency, longer flight time.
• Lower ESC temperature and a more reliable operation.

Four Brake Modes:
This Platinum 130A V4 ESC has "Brake Disabled, Normal Brake, Proportional Brake and Reverse Brake" four brake modes. The brake amount is adjustable in normal brake mode; in proportional brake mode, the brake force will be
automatically allocated based on the position of the radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel.

Multiple flight modes:
Airplane Fixed Wing / Heli Governor Off / Heli Governor (Elf) / Heli Governor Store.

Super Soft Start-up:
The ESC makes the motor start extremely soft and avoids tail-drift issues of helicopter. The start-up time is adjustable within 8 to 25 seconds, this will definitely create a perfect starting point for every flight.

Multiple Protections:
Multiple protection features include, ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.

Built-in Sparkproof Circuit:
Built-in sparkproof circuit effectively eliminates sparks produced at the "powering-on" moment and prolongs the connectors' lifespan.

Other Features:

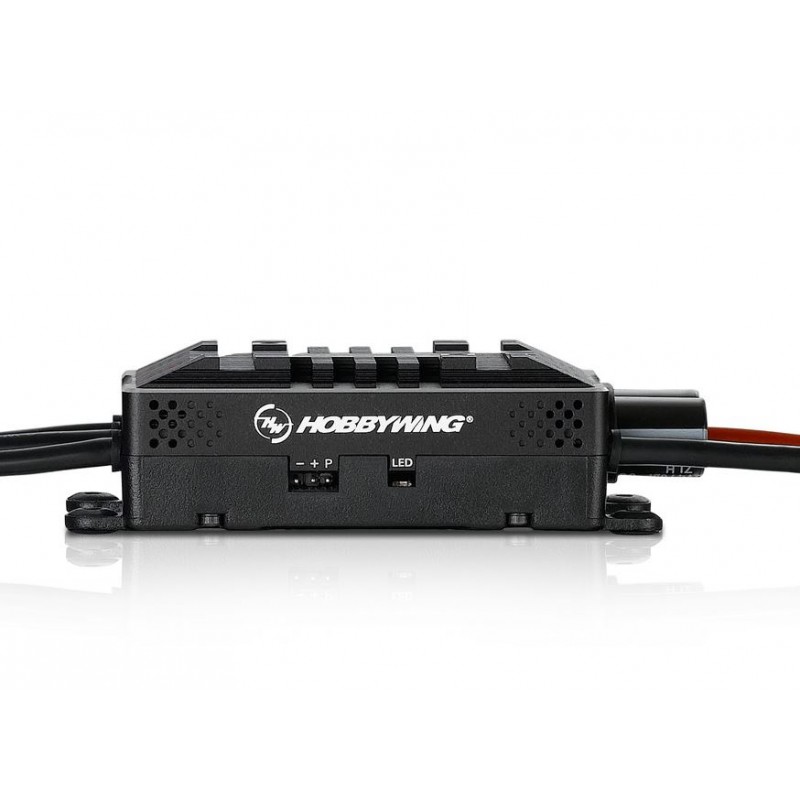

A separate programming port for connecting the programmer on this ESC allows user to

• Program ESC,
• check flight data include minimum voltage, maximum temperature, standardized RPM and speed curve (in Heli Governing Store mode) of the flight data recorded by the ESC,
• Upgrade ESC firmware with a multifunction LCD program box or a Wi-Fi Module & our Apple/Android phone App

Specifications:

• Product: Platinum 130A HV V4
• Product Number: 30209201
• Type: High Voltage Brushless ESC (14S max 58.8 Volts)
• Cont./Peak Current: 130A/160A
• Input: 6-14S LiPo
• BEC Output: No BEC
• Wires & Connectors
  • Input Wires: 12AWG
  • Output Wires: 12AWG
  • Input Connectors: No
  • Output Connecotors: No
    Note: All the wire length above is the original length not the length you see from the outside.)
• ESC Programing via
  • Transmitter: Not Supported
  • LED Program Card: Not Supported
  • LED Program Box: Not Supported
  • LCD Program Box: Supported
  • WiFi or OTA Module: Supported
  • Program Port: Program/Throttle Wire
• Firmware
  • Firmware Upgrade: Supported
• Size & Weight
  • Size: 101.0 x 45.5 x 27.0mm
  • Weight: 169g
• Applications
  • 550/600 Class Heli
