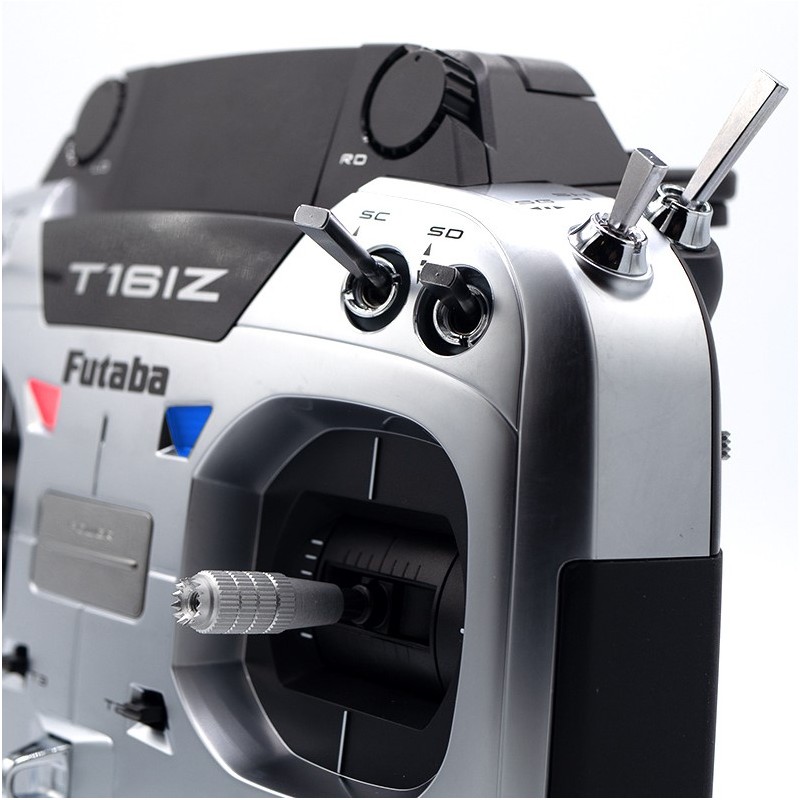

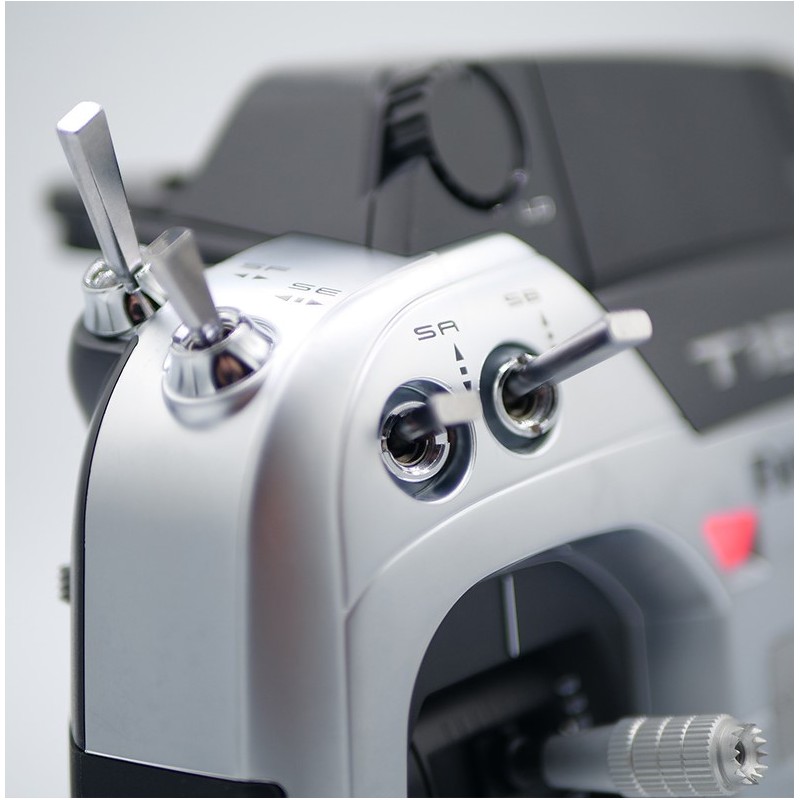

Futaba T16IZ / R7108SB Radio Air System

With the T16IZ, Futaba presents its new 18-channel radio air system (16 proportional channels plus 2 on / off channels).
This transmitter is intended for all model aircraft (helicopter, airplane, glider, drone, etc.) and has the very latest technological advances in terms of programming and support for gyro system.
The 16IZ has a significant advantage: the transmitter mode can be changed without opening the radio (mode 1/2/3 or 4), all you have to do is screw or unscrew a screw for the mechanical part, then choose the type of mode on programming interface.
The transmitter has a USB socket (Type C).
The power supply is provided by a new Futaba 7.4V 2100mAh Lipo battery with integrated charging socket (USB type).
This new radio offers a very interesting function for simulator users with a USB type C connection for "Windows OS Joystick" compatible simulators.

Featuring:

FASSTest System:
The 16IZ transmitter adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.Bus 2 System:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

USB Simulator control:
The T16IZ offers USB C compatibility for simulator control when used with Windows OS Joystick function.

Color Touch Screen LCD:
T16IZ has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

Multi Holder:
T16IZ offers multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.

Voice Telemetry:
The T16IZ allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.

Secure Data (SD card):
Model data, music files, voice files, and picture files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZ.

New High Capacity Lithium Polymer Battery (2000 MAH):
The high capacity 2S Lithium Polymer battery gives you extended flight time.

Editing:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

Functions:
Most of the mixing functions are operated by curves which give you very precise settings, using low response time internal processor.

Sticks:
Each stick offers our reliable single ball bearing for each axis. With high cycle "Hall effect" potless sensors, this allows for finer and more precise operation.

Vibration Function:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

R7108SB Receiver:
The system comes with the R7108SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

Transmitter Specifications:

Transmitter Frequency: 2.4 GHz band
Operating System: 2-Stick, 18-Channels, 2.4 GHz FASSTest/T-FHSS/S-FHSS System, (Europe: FASST Multi and FASST 7CH not supported)
Power Supply: 7.4 V LT2F2000B Lithium-polymer battery
Weight (with battery): TBD

R7108SB Receiver Specifications:

Size: 24.9 mm x 47.3 mm x 14.3 mm
Weight: 12.0 g
Power Requirements: 6.6 V LiFe Battery
Current Drain: 75 mA
RF Power Output: 25 mW EIRP

In the box:

• T16IZ 2,4 gHz transmitter
• R7108SB receiver
• LT2F2000B Lithium Polymer Battery and USB cable for charging
• Switch Harness
• Neck Strap
• User Manual (Printed French version. Futaba T16IZ full version here)
