Futaba R7003SB S.Bus2 FASSTest Telemetry Receiver

Reference: 01000677

Condition: New product

Futaba R7003SB FASSTest 2.4GHz Bidirectional S.BUS2/S.BUS port and conventional High-Voltage system receiver

3/18 Channel - S-Bus, S-Bus2)
Futaba ref: FUTL7672

More details

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

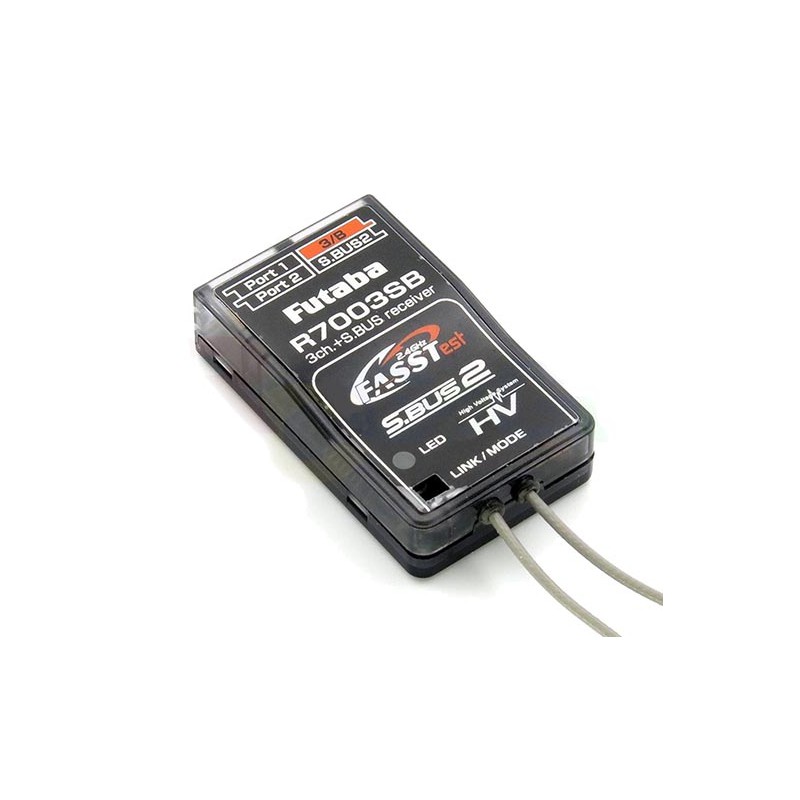

The Futaba R7003SB is a FASSTest 2.4GHz Bidirectional S.BUS2/S.BUS Port and Conventional System Programmable Receiver.

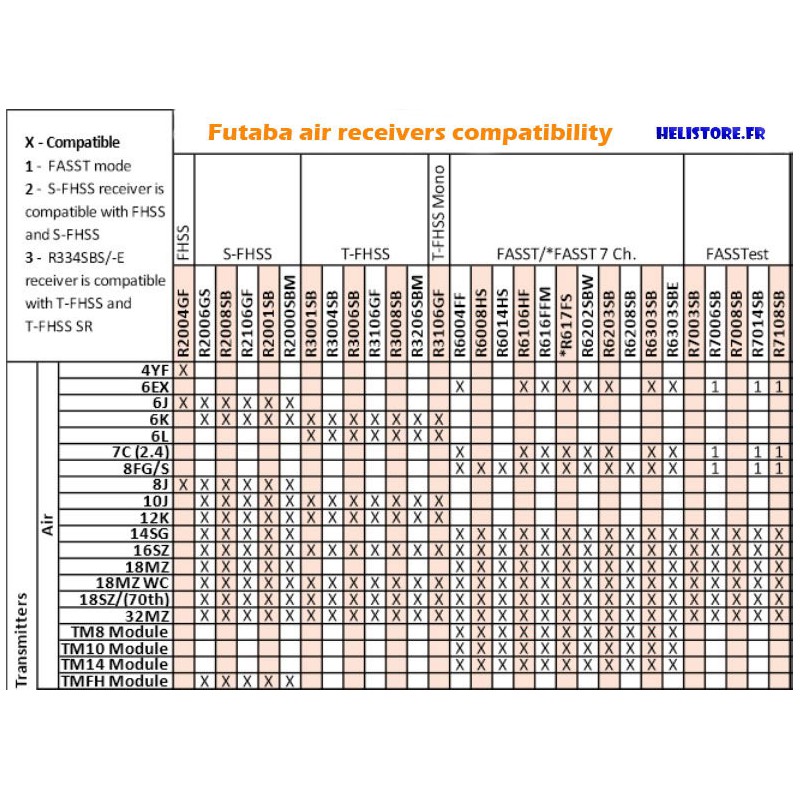

Compatible with Futaba FASSTest 2.4GHz transmitters.
Includes EXT-VOL adapter, to be used with CA-RVIN 700 external voltage input cable (sold separately).

If this receiver is not used with an S.BUS2/S.BUS system, only 3 channels are operational. If used with an S.BUS2/S.BUS system the maximum number of channels of the transmitter can be used.

Specifications:

Dimensions: 0.89 x 1.47 x 0.37" (22.5 x 37.4 x 9.3mm)
Weight: 0.25oz (7.2g)
Power requirement: 3.7-7.4 Volts (voltage range, 3.5-8.4V)
Extra voltage port: (port2) "EXT-VOL cable and CA-RVIN-700" as an option is used: 0 - 70V DC
Antenna length: 5-3/4"
