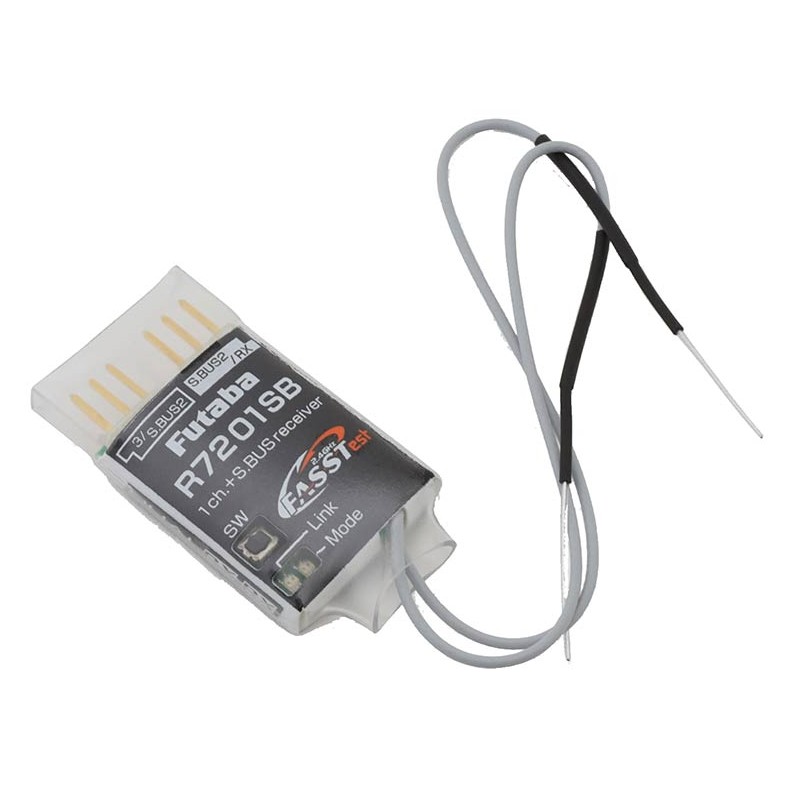

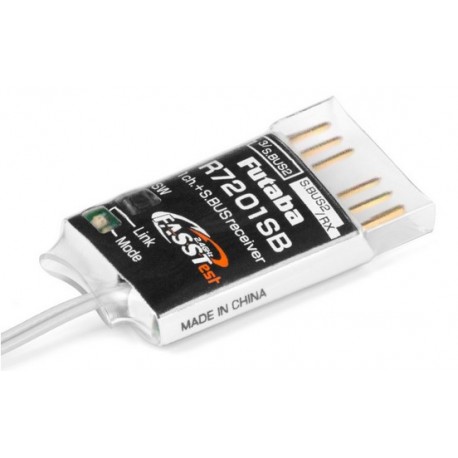

Futaba R7201SB– FASSTest 2.4 GHz Telemetry S.Bus2 1-Channel Air Receiver

The Futaba R7201SB is a FASSTest-2.4GHz compatible receiver.
To be lighter and compact (small rc helicopters or airplanes), there are only two ports for connecting servos, etc..
Then it is designed to be used mainly with servos, sensors, etc. that are compatible with the S.BUS2 system.
The 3/S.BUS2 port's initial setting is a PWM signal, allowing you to use ESCs and servos that are not compatible with S.BUS/S.BUS2.
The unit's built-in Dual Rx Link function allows for improved reception quality when combined with another S.BUS receiver.

Specifications:

• Receiver type: FASSTest-2.4 GHz system (26CH/18CH/12CH mode)
• Ports: S.BUS2 and S.BUS port and 1 Channel for conventional system receiver
• Antenna: Dual Diversity system
• Size: 0.85 x 1.56 x 0.26 in. (21.5 x 39.5 x 6.5 mm)
• Weight: 0.17 oz. (4.9 g)
• Power requirement: 3.7 V to 7.4 Volt (Voltage range: 3.5 V to 8.4 V)
• Battery F/S Voltage: It sets up with a transmitter
