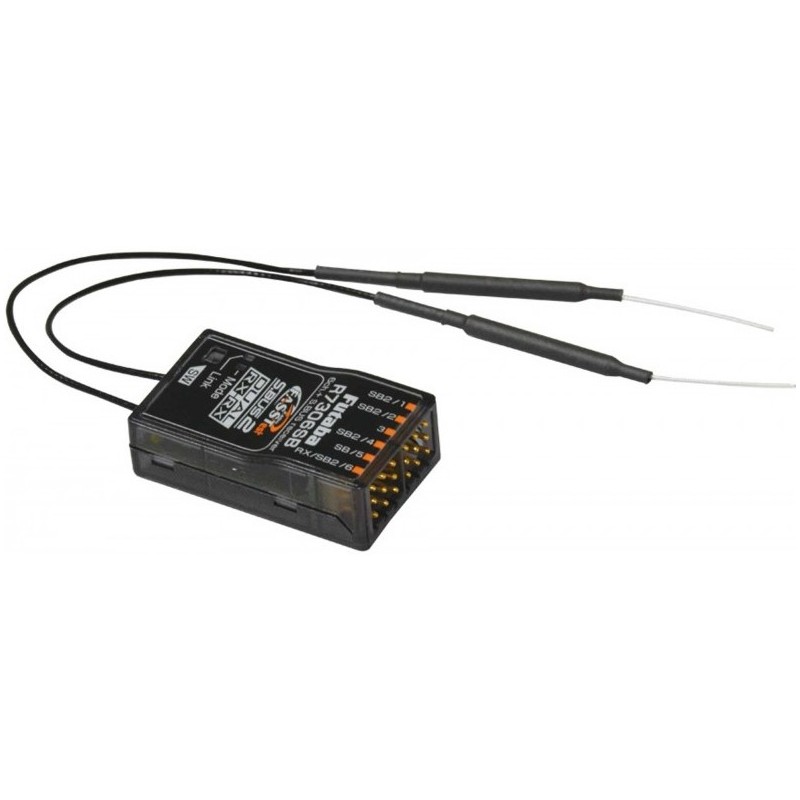

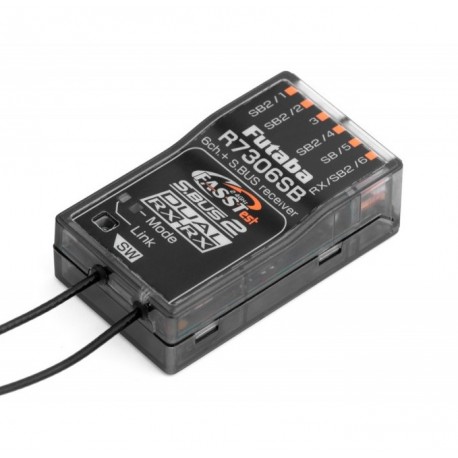

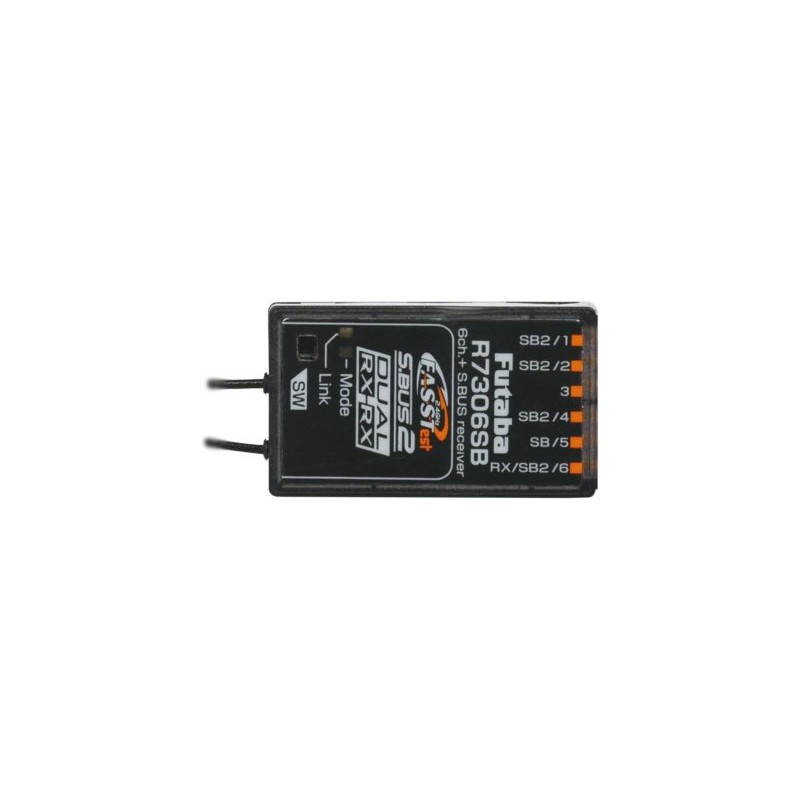

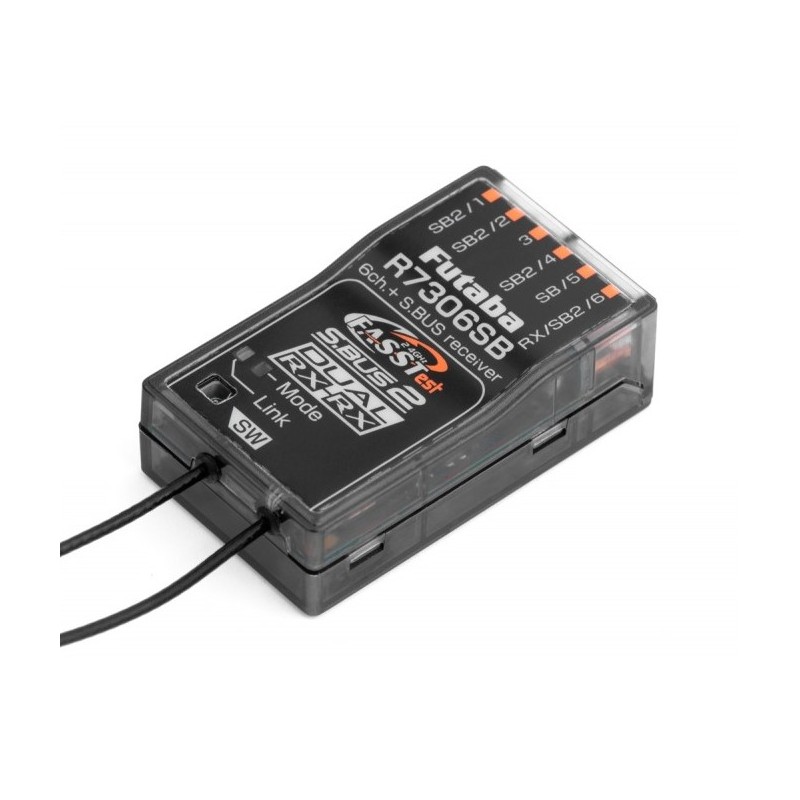

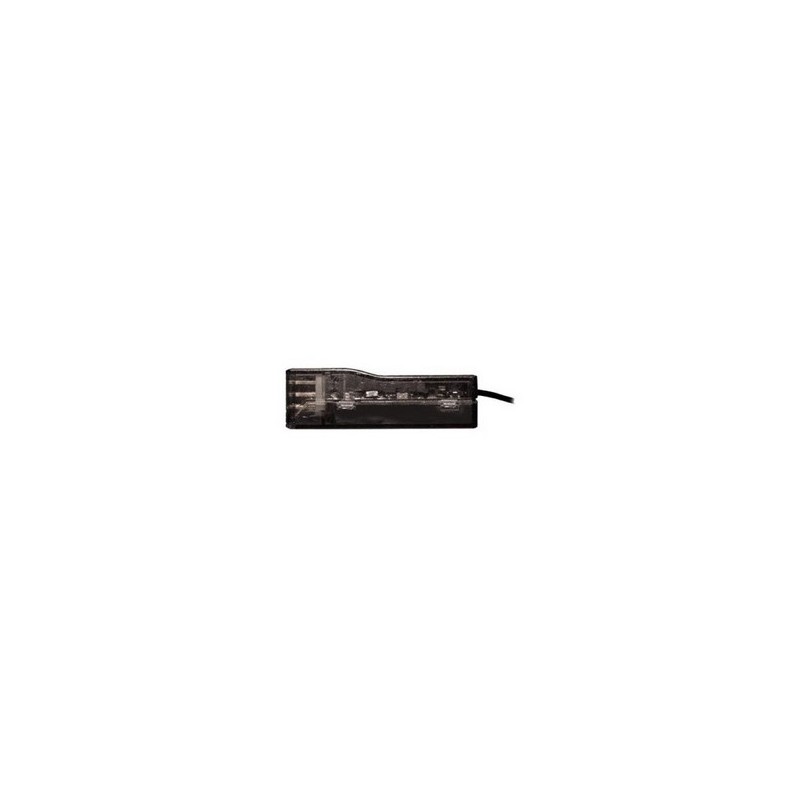

Futaba R7306SB– FASSTest 6-Channel/S.Bus/S.Bus2 receiver

The Futaba R7306SB is a FASSTest-2.4GHz compatible receiver. It features bi-directional communication with a FASSTest Futaba transmitter using the S.BUS2 port.
An impressive array of telemetry sensors may be installed on your model through the S-Bus2 system.
The R7306SB includes both standard PWM output ports (1-6ch) and S.Bus output ports.
The R7306SB can also be switched to the Dual Rx Link System. This smart option can ensure safety by mounting two FASSTest receivers on one rc model.
The new High Gain Dual Diversity antenna is also fiited on this receiver.

Specifications:

Receiver type: FASSTest-2.4 GHz system - S.BUS2 and S.BUS port and 6 Channels for conventional system receiver
Antenna: High Gain Dual Diversity
Size: 0.89 x 1.5 x 0.48 in. (22.5x38.3x12.2 mm)
Weight: 0.3 oz. (9.8 g)
Power requirement: 3.7 V to 7.4 V (Voltage range: 3.5 V to 8.4 Volts DC)
Battery F/S voltage: set up with transmitter
