Align 470MX Brushless Motor 1800KV (HML47M01)

The Align 470MX brushless motor (1800KV) is tailor made for the Align T-Rex 470L Dominator radio controlled helicopter.

As a totem to the 850MX Dominator motor, The 470MX shares the same extraordinary pedigree.
Even for the none 3D pilots, 470MX 6S motor utilizes less than 5 amps at hover. Not only does this require smaller C-rating packs, the lower temperature extends the battery life at the same time. Charging time basically is cut in half. These advantages makes this an ideal motor for just about everyone.

The 470MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
The 470MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
Maintenance free, high torque, high efficiency, low temperature variant, stable and quiet.
Japanese made high-speed ball bearings, powerful magnetic outrunner rotor.

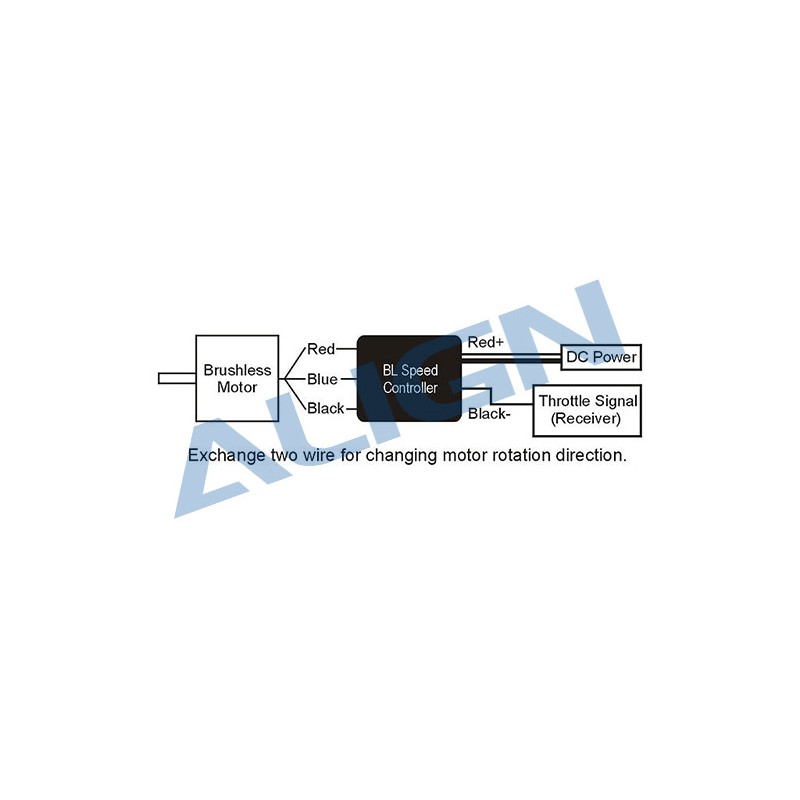

Suitable for Align T-REX 470L series. To be used with 50A Brushless ESC (Governer Mode) (HES50X01).

Specifications:

● Input voltage: 6S (22,2 Volts)
● Max continuous current: 40A/60A (2sec)
● Max output power: Approx. 890w/1300W (2sec)
● KV value: 1800KV
● Stator dimension: 2818
● Stator arms: 12
● Magnet poles: 8
● Dimension: spindle 3.5x36.4x51.7mm
● Weight: approx. 120g
