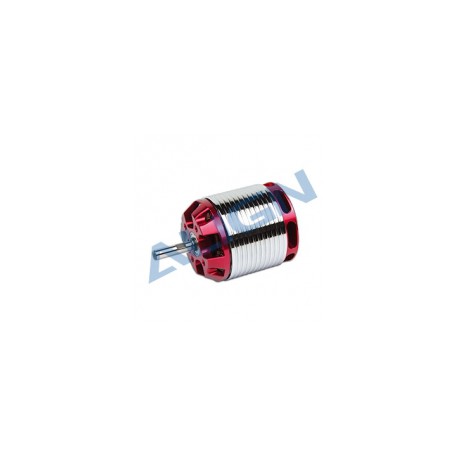

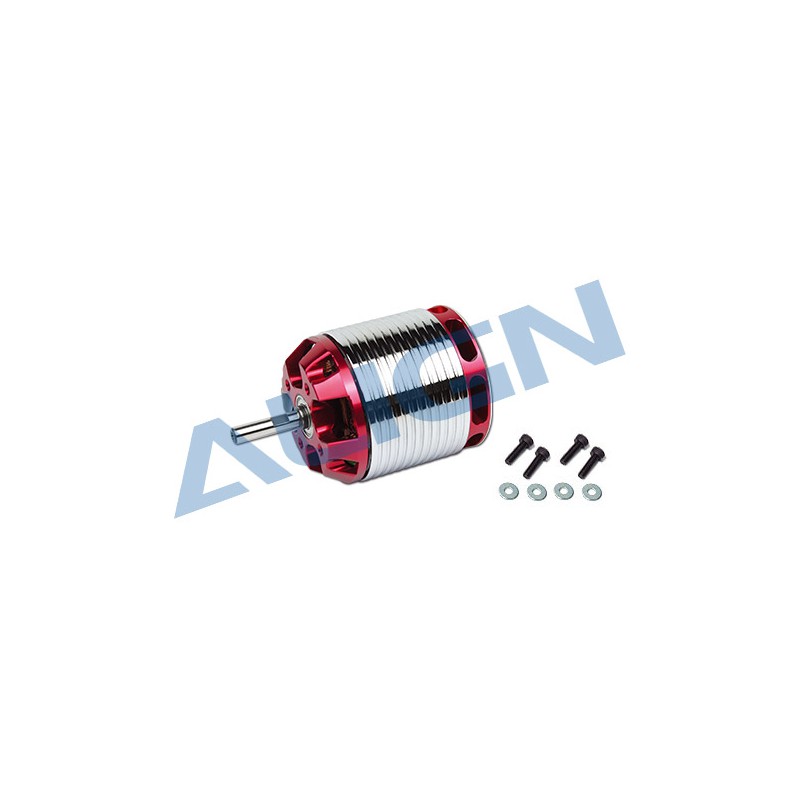

Align 520MX Brushless Motor 1600KV (HML52M01)

HML52M01

New product

Align 520MX brushless motor for Align T-Rex 500L / 500X helicopter

1600 KV. 85A. 1900W.

More details

This product is no longer in stock

102,79 € tax incl.

More info

The new Align 520MX motor, designed for Align T-REX 500L/X radio controlled helicopter, incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
The 520MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
Maintenance free, high torque, high efficiency, stable and quiet.
High-speed ball bearings, powerful magnetic outrunner rotor.
Suggested motor pinion gear: 12T for normal flights and 13T for 3D flights.

Specifications:

● Input voltage:6S
● Max continuous current: 85A/130A (2sec)
● Max output power: 1900W/2750W (2sec)
● KV value:1600KV
● Stator Dimension: 3527
● Stator Arms: 9
● Magnet Poles: 6

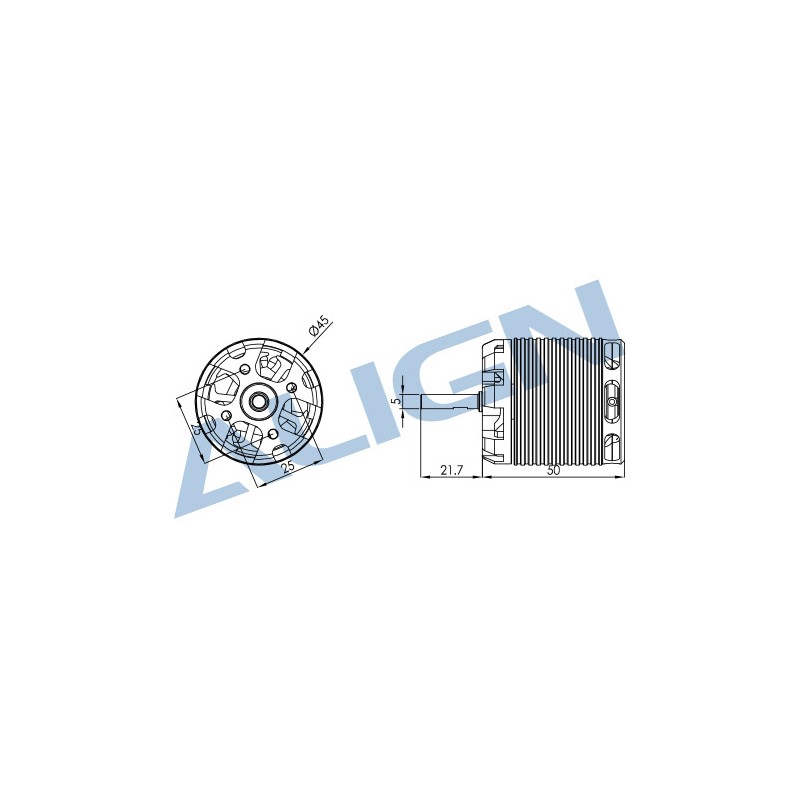

● Dimension: Shaft Φ5xΦ45x71.7mm
● Weight: Approx. 267g
