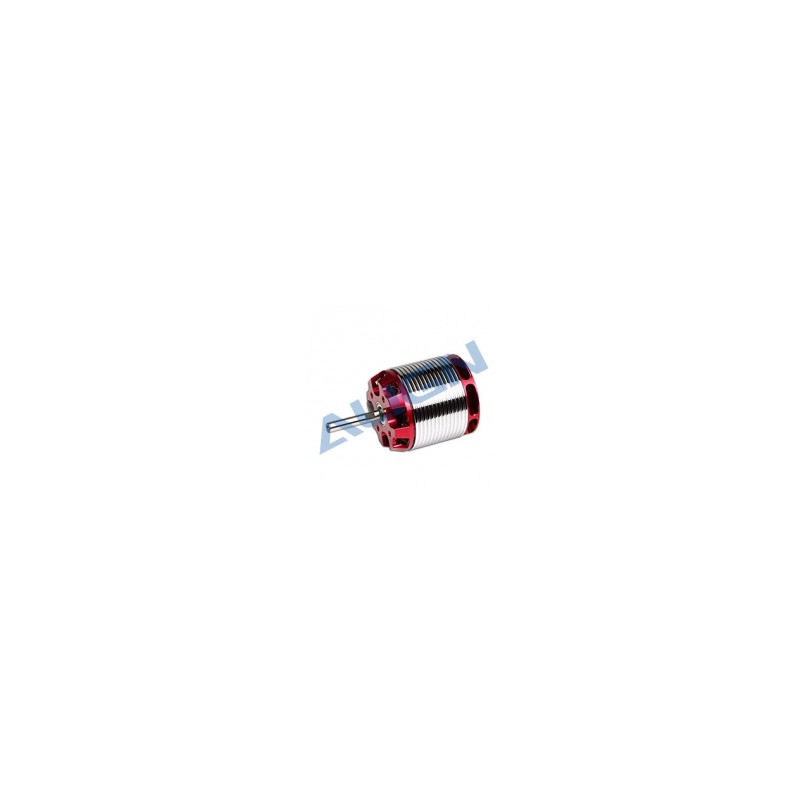

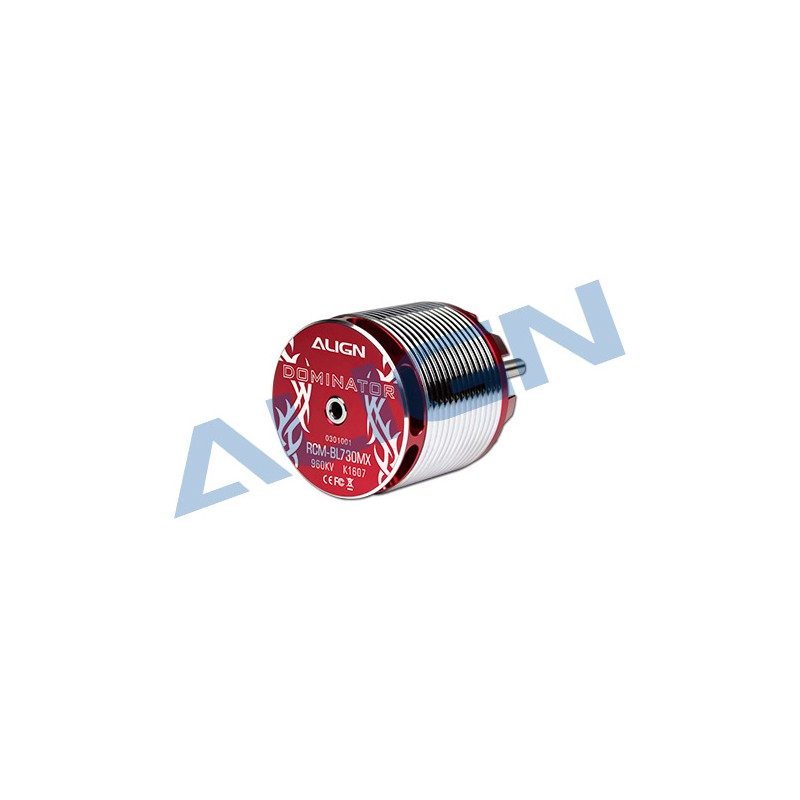

Align 730MX Brushless Motor 960KV (HML73M02)

Align 730MX-960KV brushless electric motor for Class 550 radio controlled helicopter.

Brand new 730MX motor is especially designed for power upgraded T-REX 550X, normally found in 700 class high spec helicopter, that pilots can clearly feel the dramatic increase in power and torque, while taking advantage of its higher efficiency, lower current and temperature benefits.

● The 730MX(850KV) motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
● Maintenance free, high torque, high efficiency, stable and quiet.
● High-speed ball bearings, powerful magnetic outrunner rotor.

Specifications:

● Input voltage: 6S (22.2 Volts)
● Max continuous current: 115A/195A (5sec)
● Max output power: 2550W/4330W (5sec)
● KV value: 960KV
● Stator dimension: 4230
● Stator arms: 12
● Magnet poles: 8
● Dimension: 6x52x89.1mm
● Weight: 380g

Accessories:
● Socket screw (M4X10) x2
● Washer (Φ4XΦ8X1) x4
● 4mm gilt terminal x2
● M4 set screw x1
