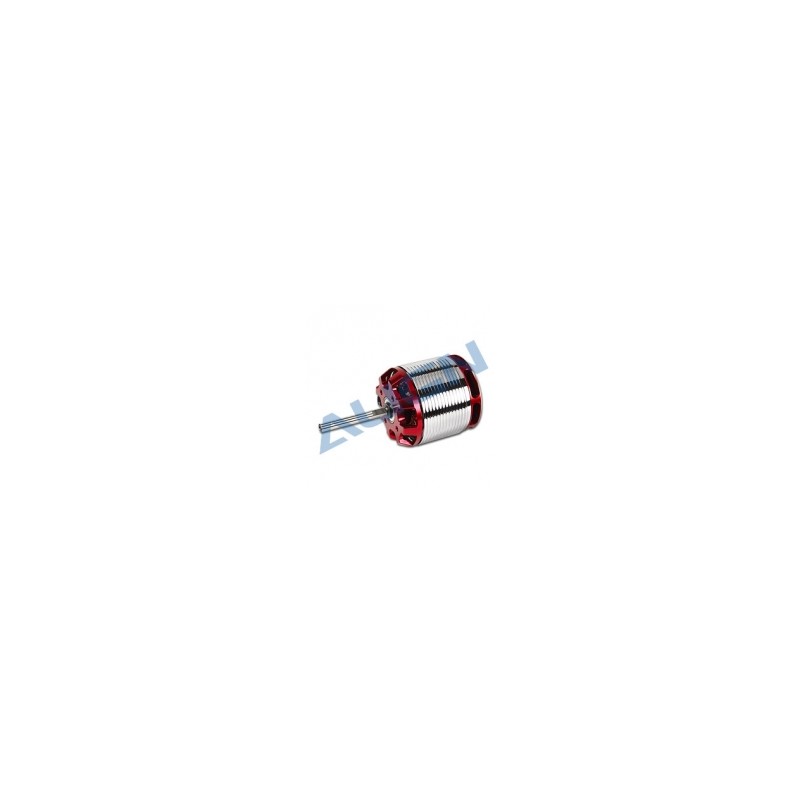

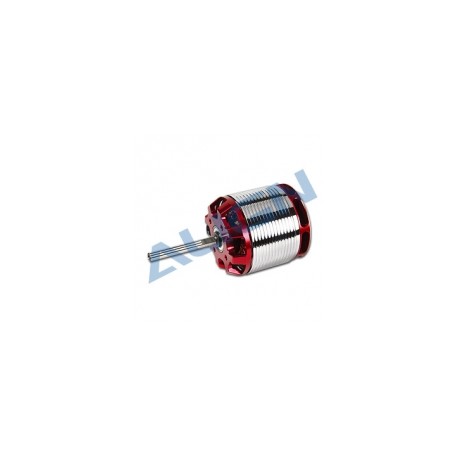

Align 800MX 440KV Brushless Motor (HML80M09)

Align 800MX brushless motor (440KV) for Align T-REX 700E F3C radio controlled helicopter (50mm motor shaft length).

● To meet your power and torque requirements, the high output 800MX motor was born in Align’s R&D lab. With dramatic increase in torque and power output, capable of 4440 watts continuous power output and 8800 watts of burst power !

● The 800MX electric motor features high efficiency, superior power, excellent torque, low current draw and low working temperature; it’s capable of maintaining consistent torque and head speed through continuous F3C maneuvers.

● Due to the 800MX’s high efficiency and low current draw, the standard equipment 130A electronic speed controller are sufficient to experience the power of this motor, and extend battery longevity.

● The 800MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.

● The 800MX motor armature are dynamically balanced to eliminate typical imbalance found in other outrunner motors.

● Maintenance free、high torque、high efficiency、stable, and low noise.

● High-speed ball bearings, powerful magnetic outrunner rotor.

Specifications:

● Input voltage: 12S
● Max continuous current: 100A/200A (2sec)
● Max output power: 4440W/8800W (2sec)
● KV value: 440KV
● Stator arms: 12
● Stator Dimension: 4530
● Magnet poles: 10

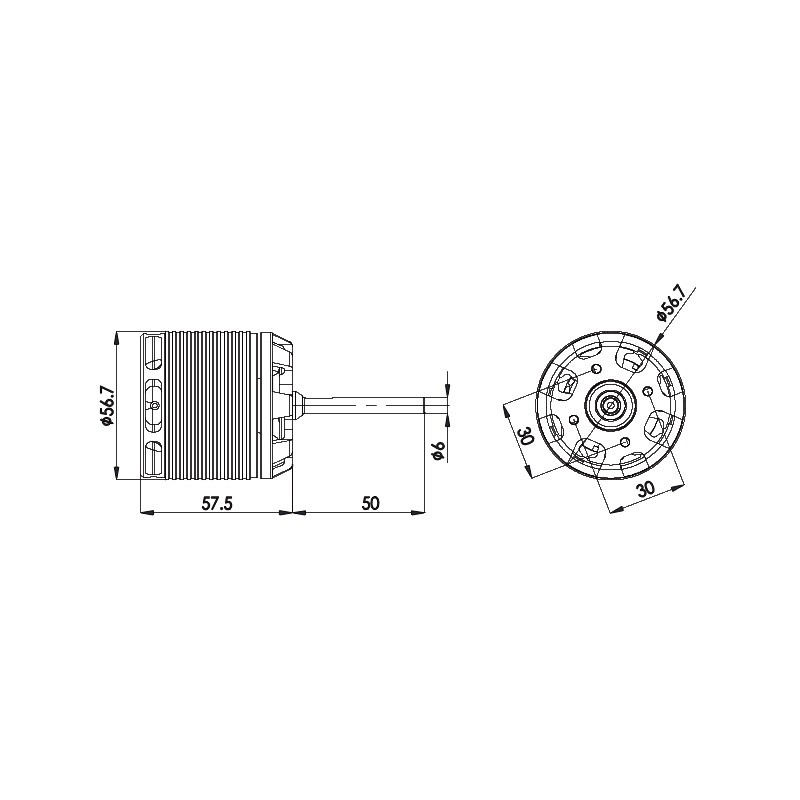

● Dimensions: spindle Φ6x56.7x107.5mm
● Weight: 510g

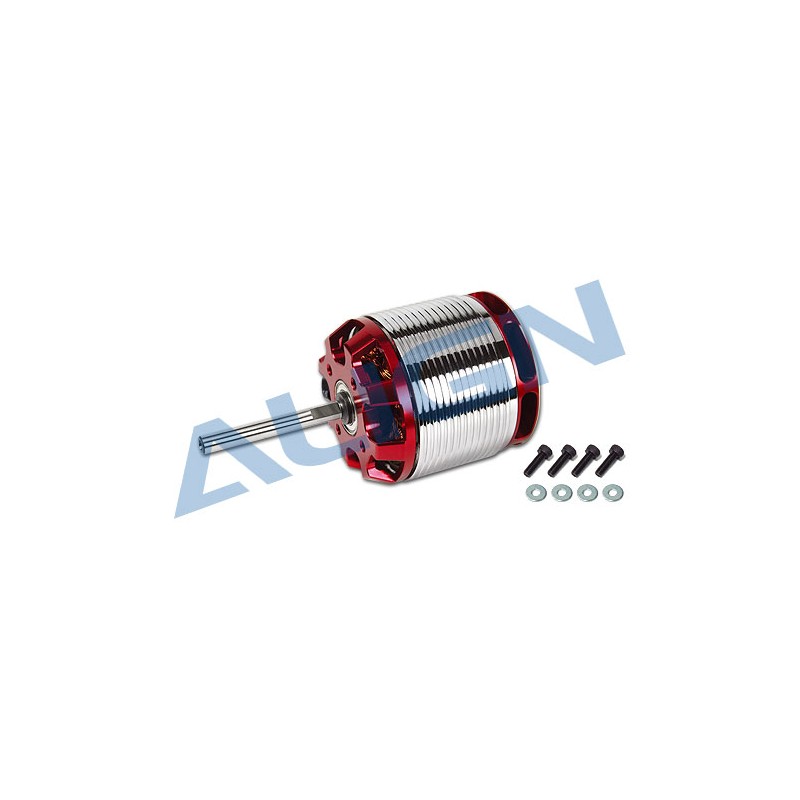

In the box:

● Align 800MX 440KV motor
● Socket screw (M4x10) x4
● Washer (Φ4xΦ10x1) x4
● 4mm gilt terminal x3
