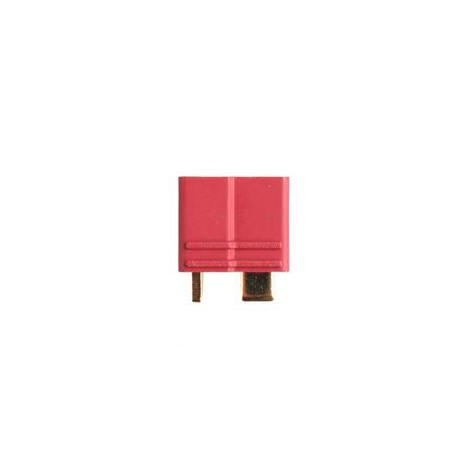

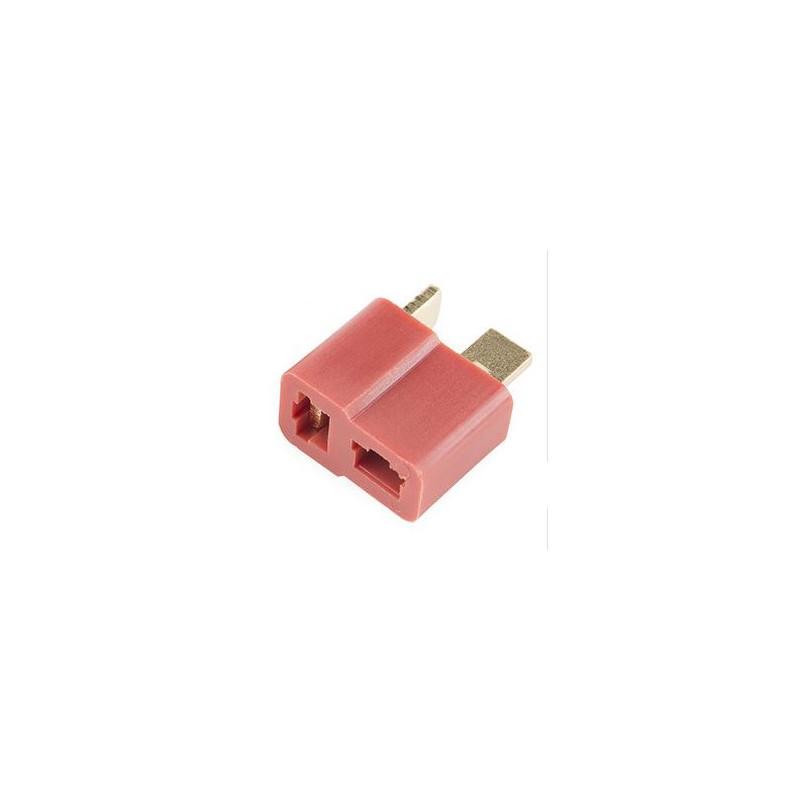

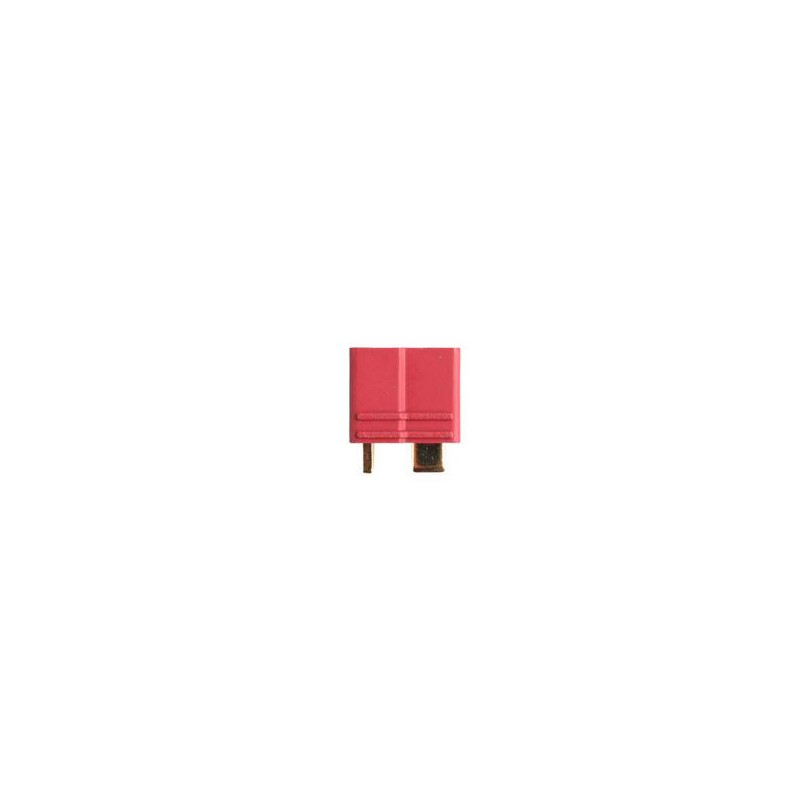

Dean Ultra Connector (female)

Dean Ultra connector - female.

The Dean Ultra Plug connectors are made of gold-plated brass. The gold coating increases conductivity and corrosion resistance, but also reduces the erosion caused by frequent plugging and pulling apart of plugs and sockets, which benefits the service life.
At just 0.45 mOhm, the electrical resistance of the plug connection is very low and enables a short-term current carrying capacity of up to 50 A. In order to achieve this performance potential, the use of high-quality silicone cables with copper strands of 12 AWG or 4 mm² wire diameter is recommended.
The housing and sockets of the Dean Ultra Plug system are made of impact-resistant nylon, which remains temperature-resistant during soldering and does not deform immediately.

Specifications:

Material: Nylon - Gold plated brass
Max current: 50A
Electrical resistance: 0.45 mΩ
Wire diameter: 12 AWG / 4 mm² max
