SKY200015
New product
With 1200W outputs, adjustable output voltage from 15-30V and active PFC, eFUEL 50A V2 is the most advanced switching power supply you will find anywhere.
1200W of output is ideal for a variety of high powered chargers.
Three outputs allow you to simultaneously operate multiple chargers or other devices.
Warning: Last items in stock!
Availability date:
An input voltage range of 100-240V makes it ready for worldwide compatibility with no setting required, and the DC output voltage is flexible: simply turn the dial to adjust the voltage to suit your setup-digital readouts give you an instant look at your output voltage and current.
Active power factor correction and a compact frame make this a great power supply to take to the field and use with a generator.

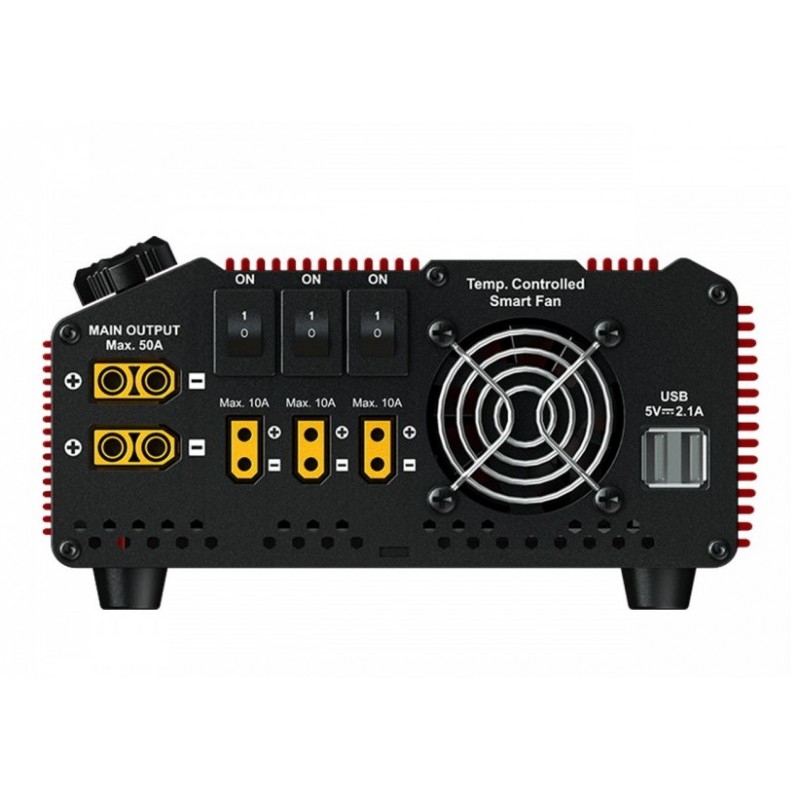

DC output : One main DC power output, up to 50 amperes, three outputs (up to 10 amperes each) with ON/OFF switch. 1200W output gives you all the power you need to run your high-powered application, or use multiple chargers simultaneously with three sets of integrated banana plug outputs !

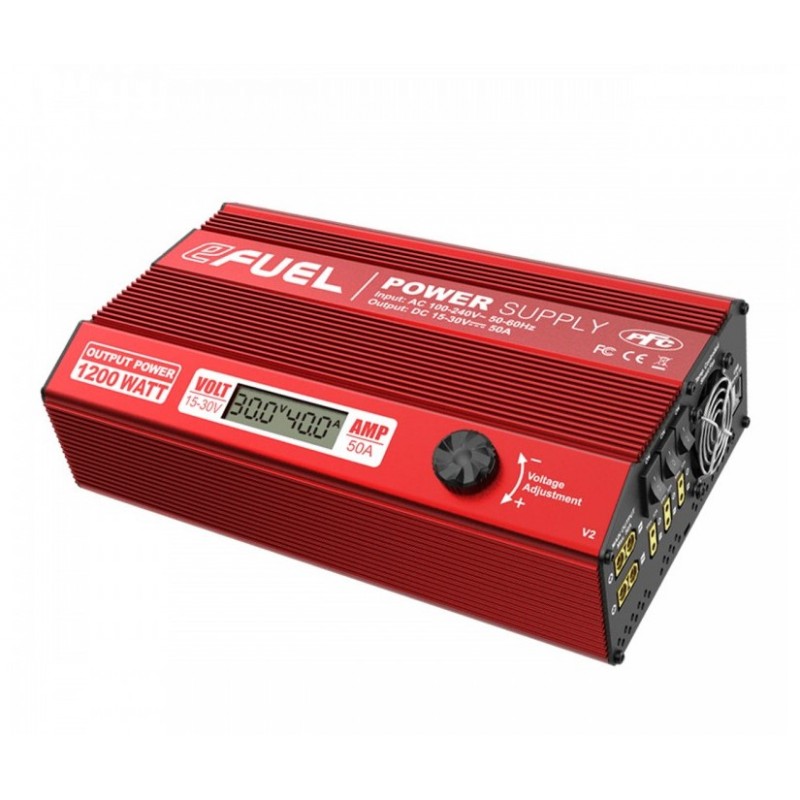

The output voltage and current are displayed on the digital readouts on the front, allowing you to identify the voltage and current at a glance.
AC input (100 to 240 V) : Worldwide operation: need not any alternative switcher, worldwide safe operation.
USB ports : It is 5 volts, 2100mA total for iPad, mobile phone, digital cameras and etc.
Smart cooling fan : It turns on at 50 °C upon the temperature automatically.
Safety features : Over current, over voltage, over load and over temperature protection.
Short-circuit protection on output, safer and more reliable.
Specifications:
Dimensions : L=305mm, W=170mm, H=85mm
Weight : 3,08 kg
AC input : 100 - 240 V AC
Input AC Frequency : 50-60 Hz
Output voltage : 15-30V DC±0.5V
Output current : 50A±1A
Current overload protection : ≤ 51A 500MS
Input fuse : 20A Fuse
LCD Display : Voltage Precision ±0.3V. Current Precision ±0.5A
Output voltage ripple : < 300mV
Power efficiency : 89%
Power factor : > 0.98
Over temp protection : <65℃
Cooling : automatic cooling fan
Operating temp : 0-40℃
Operating humidity : 0-90%
