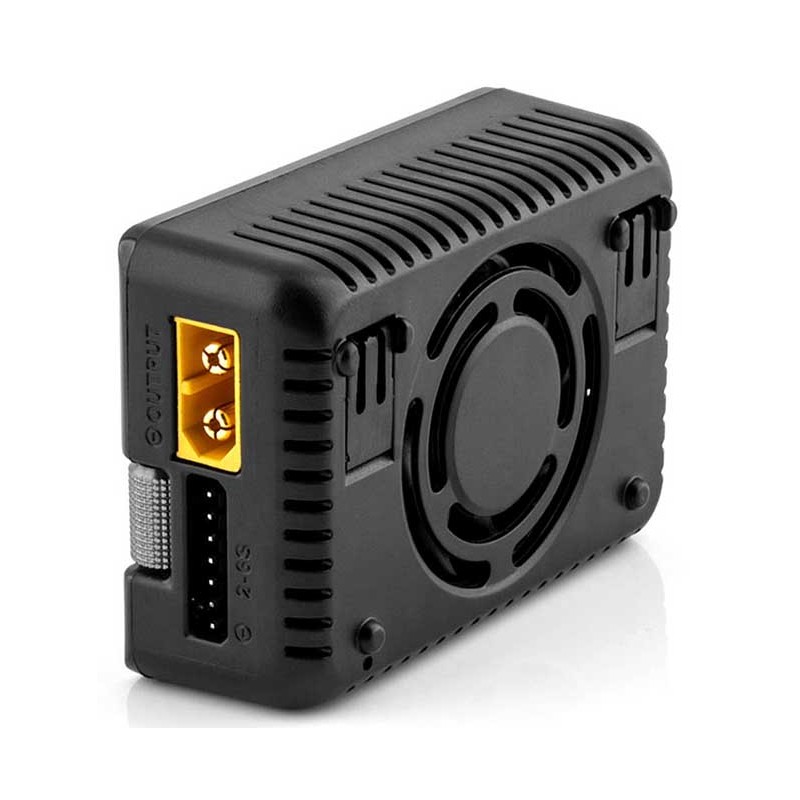

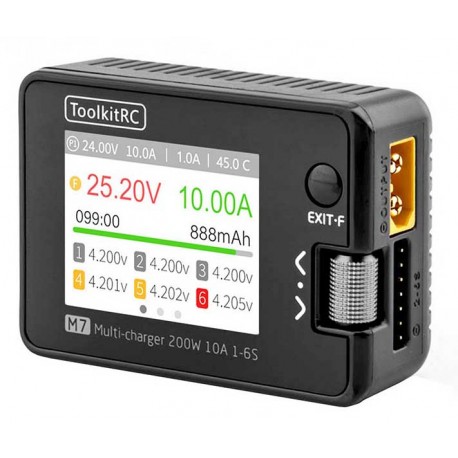

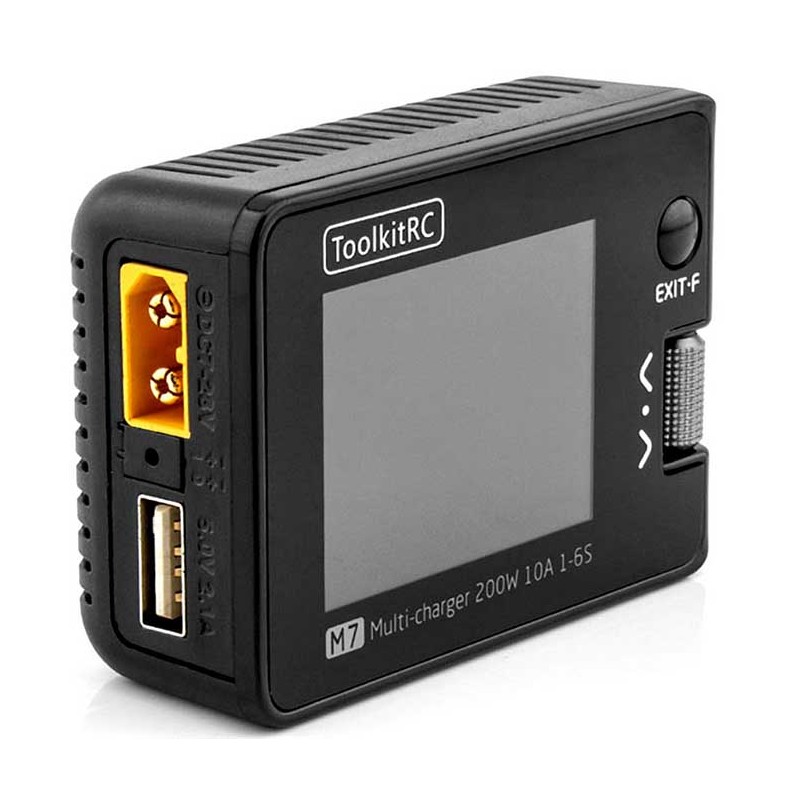

ToolkitRC M7 LiPo 1-6S 10A Charger DC 7-28V

The Toolkit M7 charger is small and light with a various different features such as balance charging and discharging.
This compact charger can also be used as a signal measuring device or directly as a signal source in terms of PWM, PPM and SBUS signals.
Multi-language system: you can upgrade any language you need !

Features:
- Up to 200W charging power and maximum 10A charging current
- Max. 200W discharge power
- Multifunction device: Charger - Meter for voltage, resistance - PWM/PPM/SBUS signals measurement and playback
- Multilingual user interface including voice output
- Upgradeable via USB
- Various security controls

Specifications:

Input voltage: 7.0-28.0V  @MAX 12A
Type of batteries: Lipo  LiHV  LiFe Lion@1-6S / NiMh @1-16S / Pb @1-10S
Balancing current: 400mA @2-6S
Charging power: 200W @MAX 10A
Discharging power: 200W  @MAX 10A Recycle mode and 10W@3A Normal mode
USB: 2.1A @5.0V or upgrade
Product size: 73*51*27 mm
Product weight: 90g
LCD screen: IPS  2.0inch LCD 320*240 Pixel

Measuring
PWM: 880us-2200us@20-400hz
PPM: 880us-2200us*8 CH@20-50hz
SBUS: 880us-2200us*16 CH@20-100hz

Output
PWM: 500us-2500us@20-1000hz
PPM: 880us-2200us*8 CH@50hz
SBUS: 880us-2200us*16 CH@74hz
Power: 1-10A@1-28V Mode: CC+CV

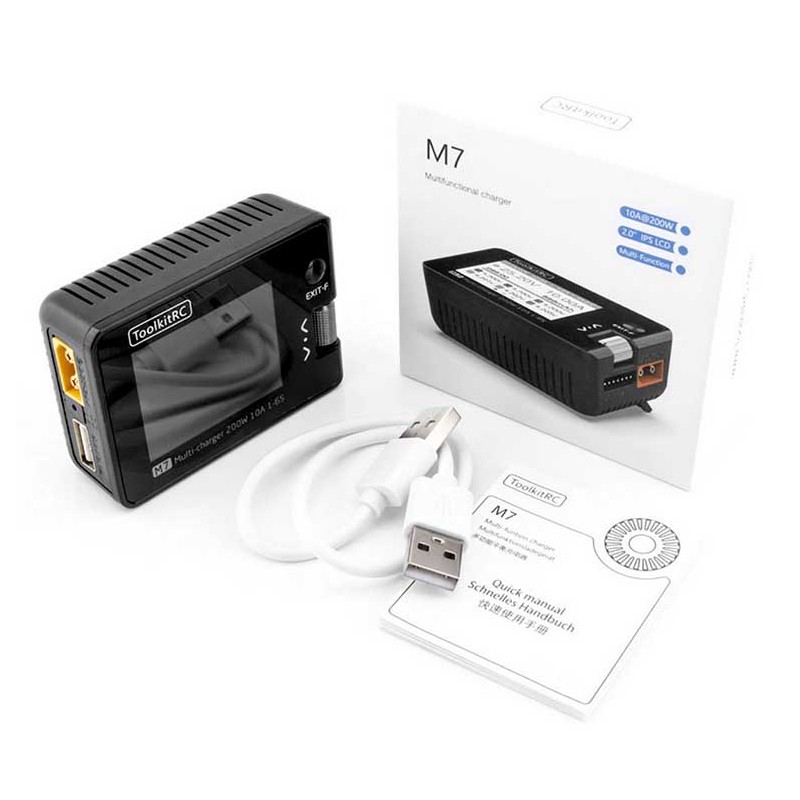

In the M7 charger box:
1x M7AC-Charger
1x USB cable
1x Manual
