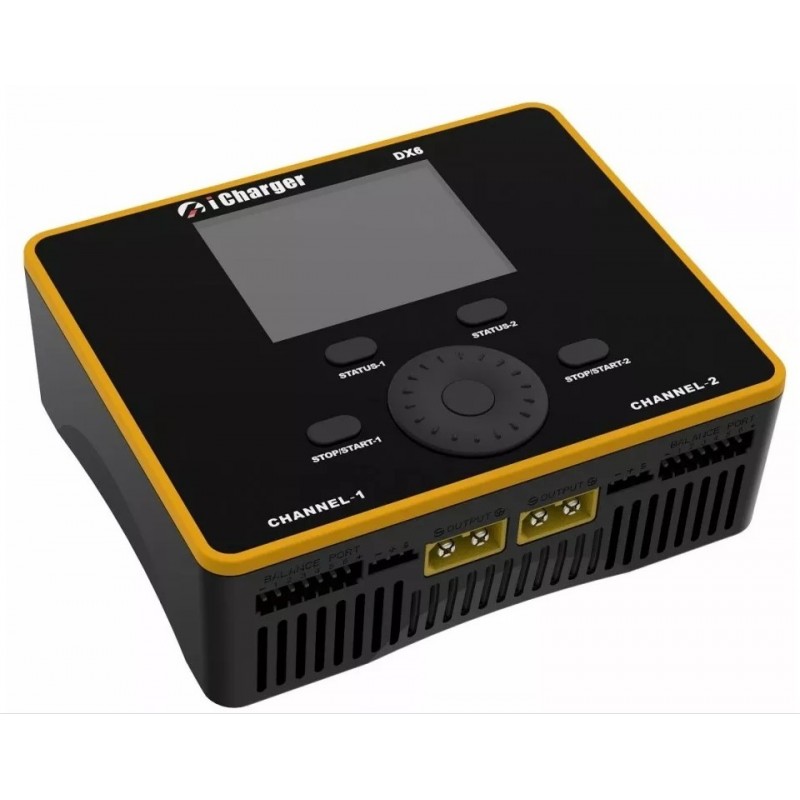

Junsi iCharger DX6 Duo Charger 2x900W - 1500W

With the new iCharger DX6, the well-known manufacturer Junsi is launching a powerfull dual charger in a compact format.

The new DX6 charger combines the advantages of its predecessor the iCharger 406DUO, with the portability of a small pocket charger. Indeed, despite its contained dimensions of 92x112x40mm, no compromise has been made in terms of performance and usability.
The new rotary selector makes operation much easier.

Impressive technical data!
1500W charging power (from >25V DC power supply), 1-6s LiXx cells and up to 32 Amps charging current. Sufficient performance for large high capacity batteries.
Of course, all other battery types such as LiHV, LiIo, NiZn, PB, NiCd or NiMh batteries can also be charged. Discharge power is 60 watts total (40 watts per output if only one output is used), but can be increased up to 1600 watts by using an external load (discharge resistor).
Of course, the iCharger DX6 also masters regenerative charging. Here, the battery capacity is fed back into the supply battery, for example from a full filled flight battery.
The balancing current of 4 amps in total (2A per output) always guarantees perfectly balanced cell voltages.
It also has a USB-C PD port for charging smartphones etc. (5V/3A, 9V/2A, 12V/1.5A).
The micro SD slot can be used to save data, but also for updates.
A servo tester is also built into this charger.

Menu navigation is almost identical to that of the famous Junsi iCharger 308DUO, 406 DUO or 4010DUO. A 2.4" IPS LCD screen ensures good readability in all light conditions.
An English user manual is supplied with the charger in the form of CD.

Specifications:

Input voltage range: 9-34V DC
Maximum input current limit: 65A (Channel 45A)
Maximum charge/discharge current: 50A (Channel 32A x2)
Maximum charge power capacity: 1500W (Channel 900W x2)
Maximum discharge power capacity: 60W (Channel 40W x2)
Maximum regenerative discharge power capacity: 1500W (Channel 900W x2)
Maximum extra discharge power capacity: 1600W (Channel 900W @30V/32A)
Maximum current drain for balancing: 4A (Channel 2A x2)
Type-C PD port: 5V/3A,9V/2A,12V/1.5A
Support Battery type: LiPo, Lilo, LiFe, LiVH, LTO, NiZn, NiMH, NiCd, Pb
Net weight: 360g
Dimension: 92×112×40mm
