CC-010-0063-01
New product
Modify the settings of your Castle Creations' ESC using a single button !
Program your Castle Air controllers in the field.
Warning: Last items in stock!
Availability date:

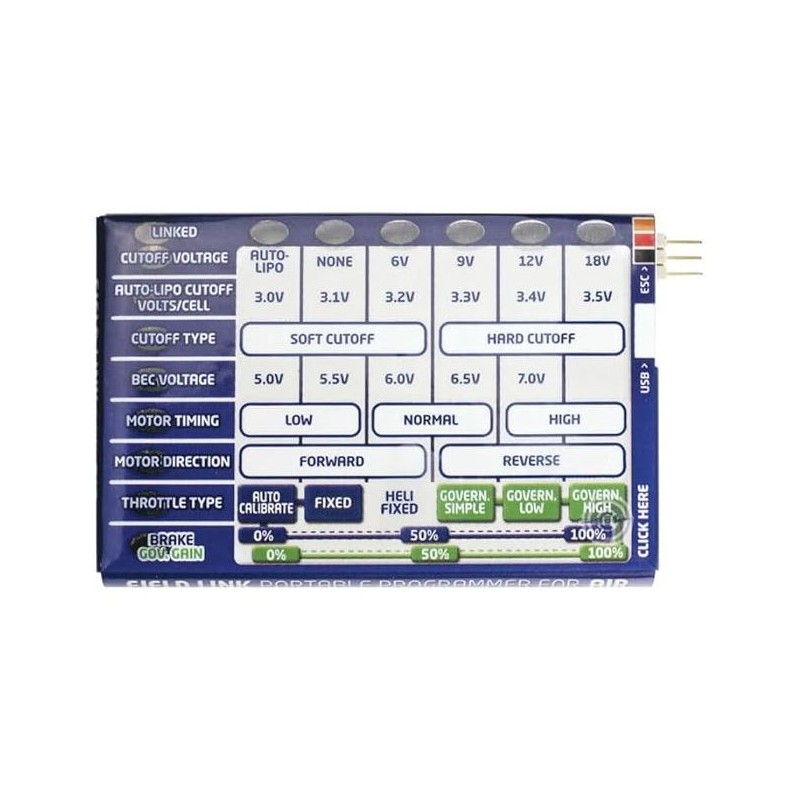

This is the Field Link Portable Programmer, designed to provide a convenient on-the-field programming device for your Castle controllers !
With a simple touch of a button, you can set the most commonly used values in your Castle controller.
The Link Programmer for Flying settings will allow you to adjust the following parameters:
• Cutoff voltage
• Auto LiPo volts per cell (ranging from 3.0 to 3.5)
• Low voltage cutoff type
• BEC voltage setting*
• Motor timing*
• Motor direction
• Throttle type*
• Brake
• Governor gain*
*These settings are applicable if supported by your ESC. Please refer to the "Specifications" section for a comprehensive list of available functions.
Features:
Full Castle Link Functionality: this Field Link portable programmer can also do the job of a Castle Link USB Programming kit, allowing you to connect your controller to your Windows PC for easy programming. Adjustable settings include:
• Access expanded programming and parameters for Castle controllers
• Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
• Intuitive Demo Mode capability
• Ability to default ESC to factory settings
• Ability to save setup profiles for later use
• Ability to download and view data logs (on applicable controllers)
Specifications:
System requirements:
Castle Link software is compatible with Windows Vista, Windows 7, Windows 8 and Windows 10.
Items needed for operation:
Field Link contains a proprietary interface adapter and standard USB cable. All you need is an available USB port on your PC.
Application guidelines:
Works with all Castle Link compatible air controllers including: Phoenix Edge, Phoenix Edge Lite, Phoenix Edge HV, Phoenix Edge Lite HV, Talon, Phoenix, Phoenix HV, Phoenix Ice, Phoenix Ice HV, Thunderbird (limited to select Thunderbird features).
Requires USB 2.0 on a Windows PC running Castle Link software.
Tech notes:
Field Link card cannot change settings on controller series that do not have the listed settings. See settings compatibility chart above for details.
Macintosh users may take advantage of software such as Parallels Desktop, VMware Fusion, or Apple's Boot Camp along with Windows Vista, Windows 7, Windows 8 and Windows 10. to run the Castle Link software, provided the Macintosh has an Intel processor. Macintosh installation is not supported by Castle Creations.

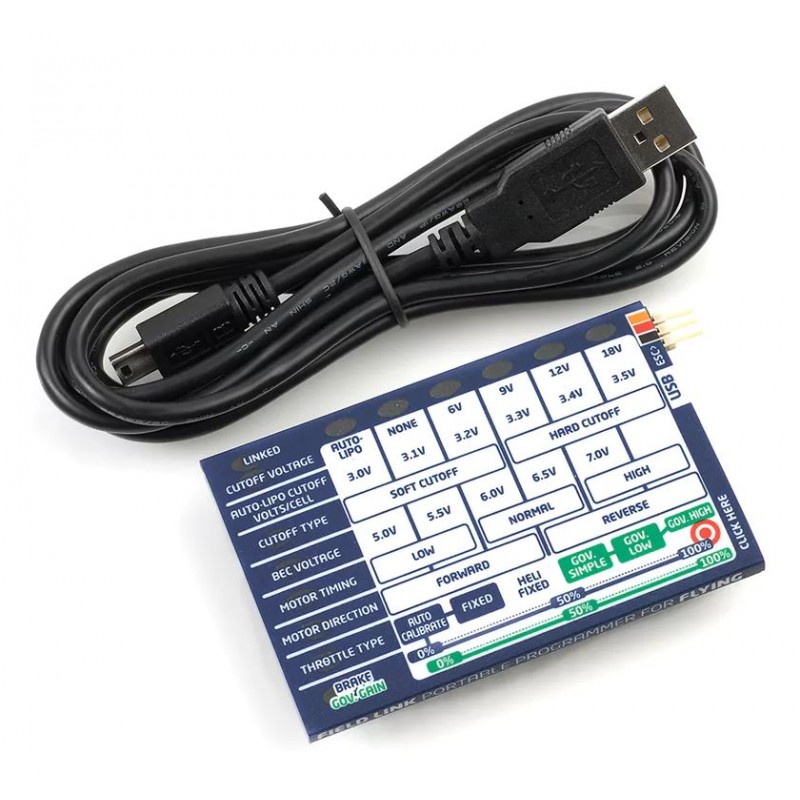

This package includes one Field Link portable programmer specifically designed to work with Castle air controllers, ensuring seamless compatibility. Additionally, a USB cable is included for easy connectivity and updates. Enjoy the convenience and flexibility of programming your controllers on the go with our Field Link Portable Programmer.
