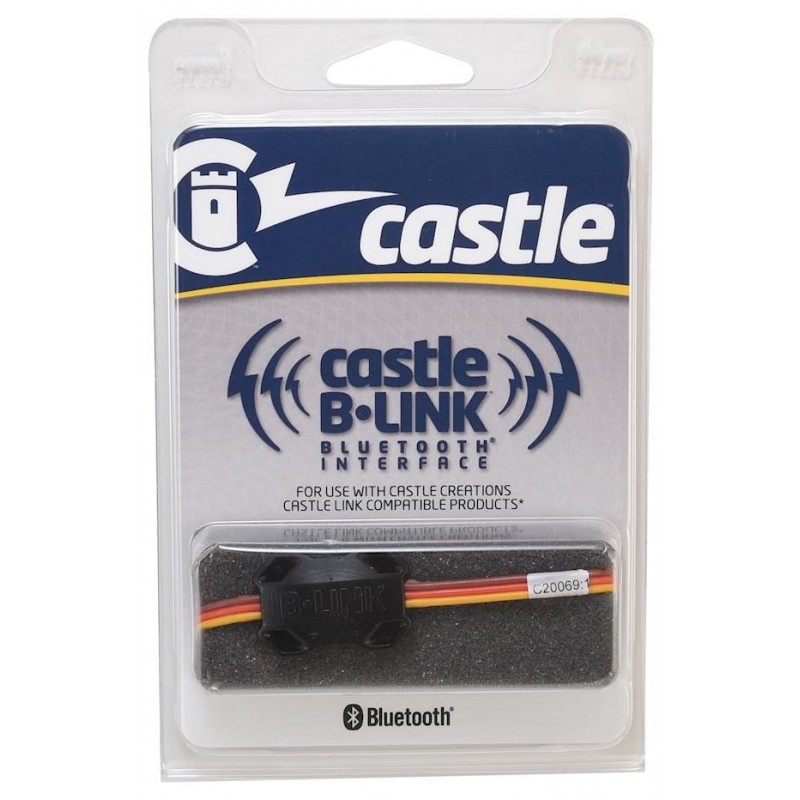

Castle B-Link Bluetooth Adapter

Control your ESC at your fingertips !

Castle Link ESC tuning is an essential component for customizing vehicle performance for all Castle Creations’ customers.
While the controllers are plug and play, optimizing a Castle ESC through the Castle Link Programming Suite unlocks the full range of capabilities that set Castle apart from the competition.
You'll enjoy the ability to adjust many variables to enhance your experience including throttle, braking curve, drag brake, reverse type and more.
The Castle B-Link Bluetooth adapter enables users to wirelessly program settings and view and download data logs on current Castle Creations ESCs, many older models and the BEC 2.0/BEC Pro on Apple iOS devices and now Android devices !

Requirements: Apple devices require iOS version 10.0 or higher. Android devices require version 5.0 or higher.

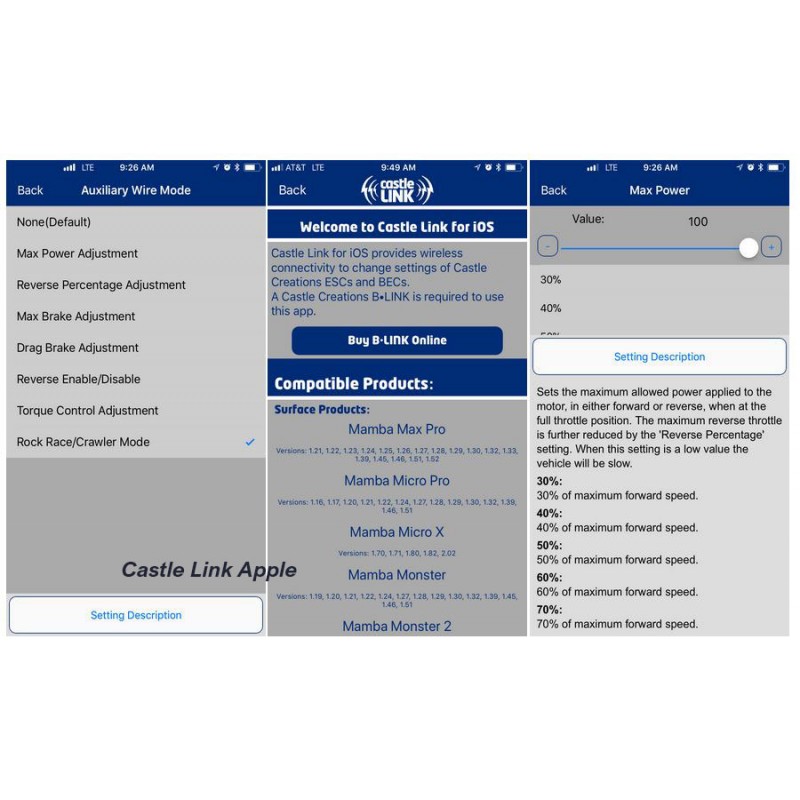

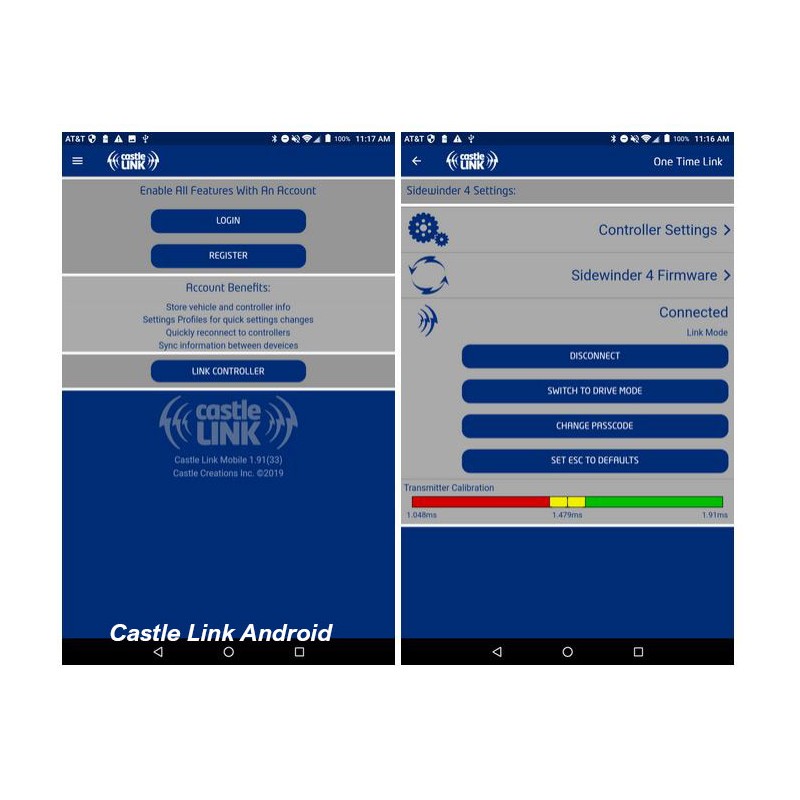

The free Castle Link app for iOS is available on the Apple App Store for use with iPhones and iPads, and Google Play for Android devices. Once downloaded, it does not require a data connection and can be used anywhere, including remote areas.

Features:

Wireless Bluetooth communication:
You will be allowed to interface with most Castle Link compatible ESCs and accessories to change parameters and update  firmware.

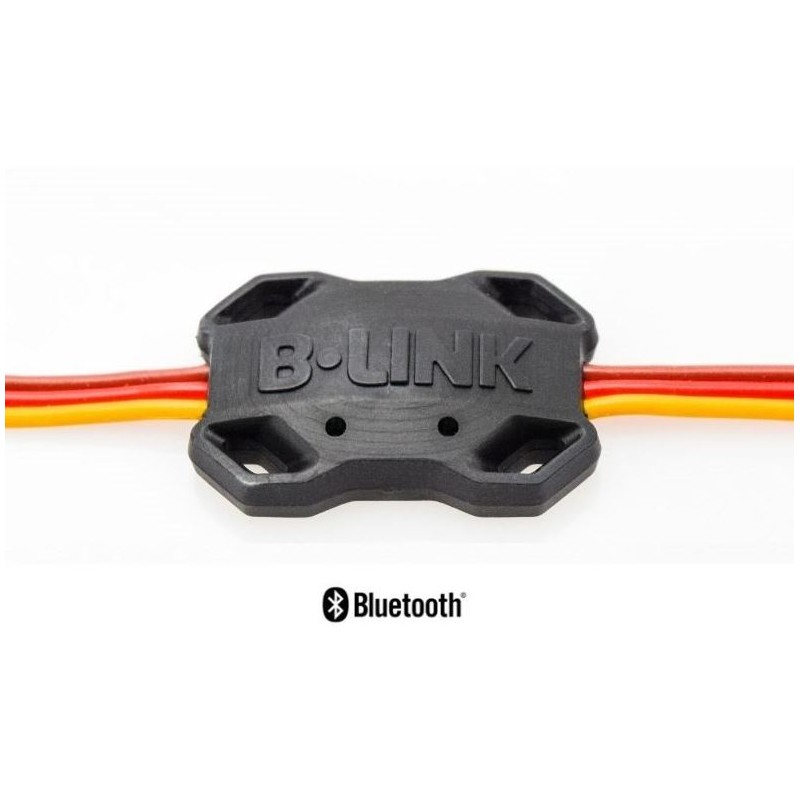

Compact & lightweight:
Only 1.20" x .81" x .25" (30.48mm x 20.55mm x 6.55mm) and 0.23oz (6.62g), it can be installed in the vehicle or airframe without significantly increasing model weight.

Convenient waterproof design:
To quickly change settings at the flying field without disconnecting or disassembling your model. It can stay installed in the model or be easily swapped between models.

Free App download:
Directly available in the Apple App Store and Google Play. Once downloaded it does not require a data connection so it can be used in the most remote of areas and won’t use data.

Easy to use:
Application can be used with multiple B-Link Bluetooth Adapters or can store model information and allow you to use one adapter on multiple models.

Passcode protected:
You can protect your settings with a user-selectable 4-digit passcode. This will prevent unwanted tampering and keep your configurations secure.

Sync information between several devices:
Create a free account and sync your data between multiple devices. This feature requires an internet connection and enables you to seamlessly access your database from different devices. Keep your settings in sync and readily available when you need them.

Specifications:

• Input Voltage: Minimum: 4.5V - Maximum: 13V
• Max Continuous Current: 10A
• Maximum Burst Current: 20A
• Dimensions (with wires): 7.25" x 0.81" x 0.27" (184.15mm x 20.55mm x 6,55 mm)
• Dimensions (w/o wires): 1.20" x 0.81" x 0.27" (30.48mm x 20.55mm x 6,55 mm)
• Weight:  6.62gm / 0.015lbs
• Needed for Operation: Castle Link App found at Apple App Store or Google Play and compatible ESC and/or Accessory
• Tech Notes: Not compatible with Castle Telemetry Link for Spektrum XBus and Futaba S.Bus2
