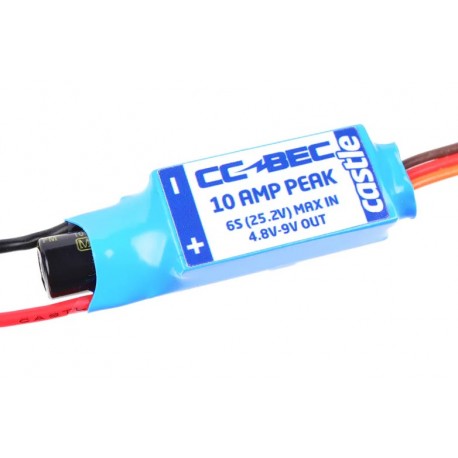

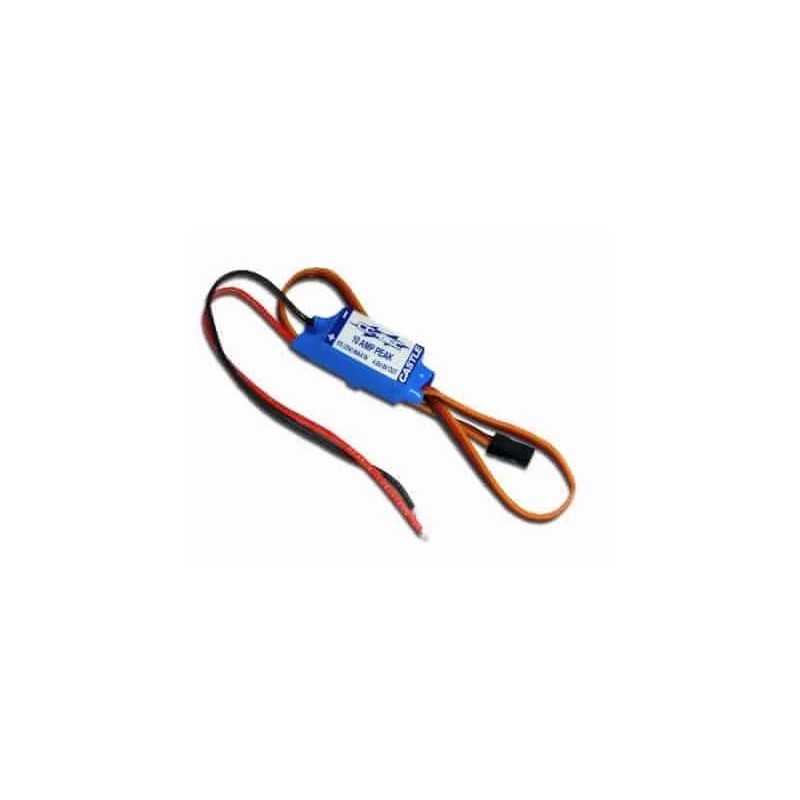

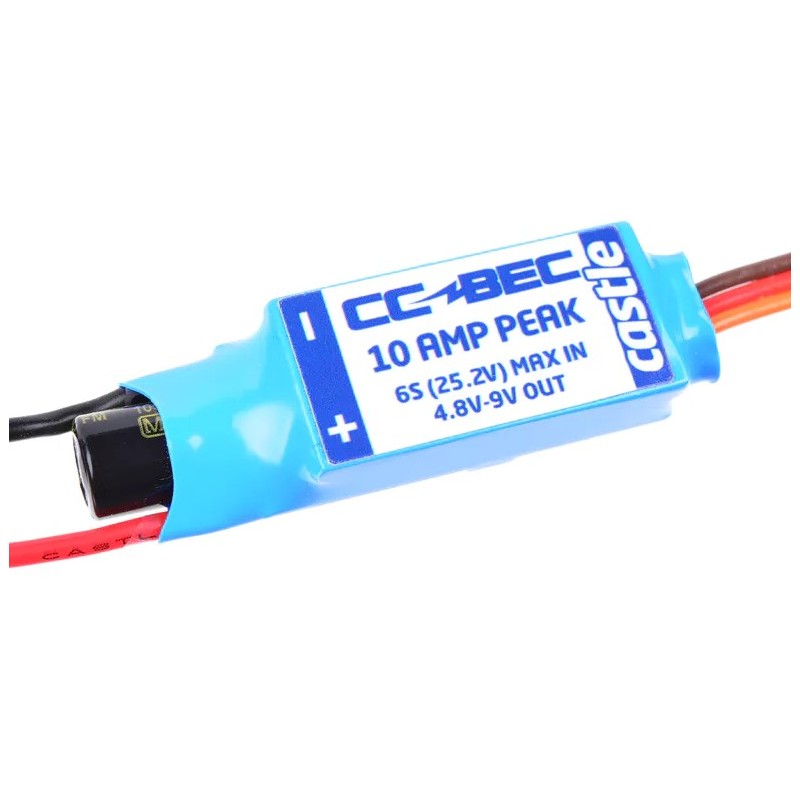

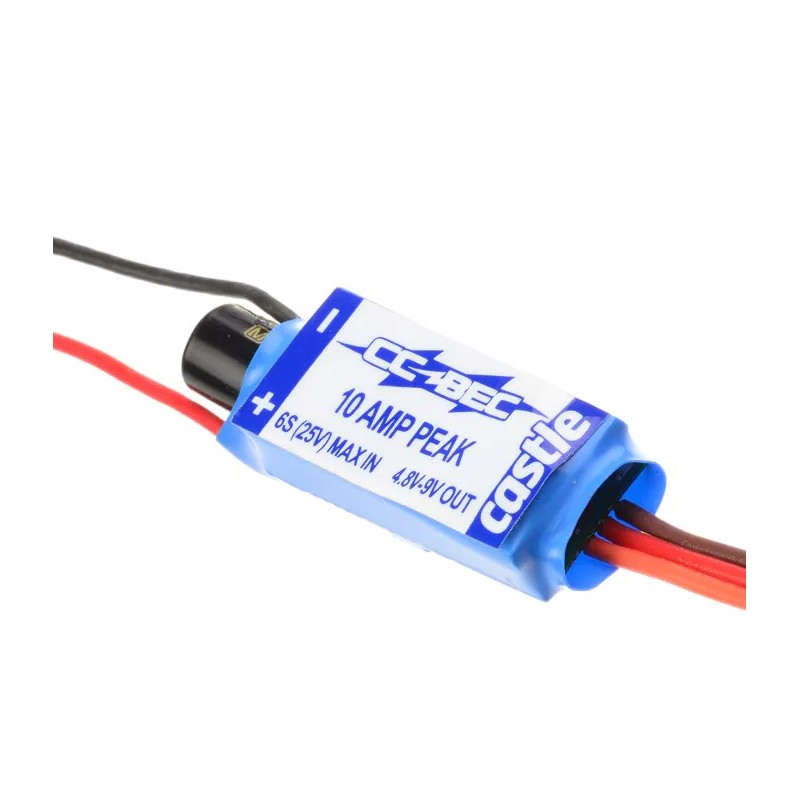

Castle CC BEC 10A PEAK 25V MAX INPUT 6S

Manage the power !

The CC BEC (Battery Eliminator Circuit) is a small device that eliminates the need for a receiver battery. It draws voltage from the motor batteries and drops it to a voltage level that is suitable for your receiver and servos.
This is required in applications which use high power servos, where the ESC does not have an internal BEC, or the existing BEC is inadequate.

The CC BEC 10A is designed to operate at up to 6S LiPo with a 10A* peak servo load. Generally used for models utilizing high powered digital servos. It is also useful in smaller airplanes using 4 standard non-digital servos or 6 micro servos. Perfect for 450 size or smaller helis.
But if you need more amps or voltage capability, the CC BEC Pro is the way to go !

Specifications:

Max amps: 10 amps peak. continuous current: <12 volts input = 7 amps - <24 volts input = 5 amps
Input voltage: 5v to 25.2v (2s to 6s LiPo)
Adjustable output voltage: 4.8V to 9 volts (Factory default voltage: 5.1V) - Voltage must be changed via Castle Link (sold separately)
Size: Width: 0.57" (15mm) - Length: 1.70" (43mm) - Depth: 0.48" (12mm)
Weight: 0.53 oz. (15.2g)
Product uses statements: not intended for use in wet conditions, BEC is not waterproof
