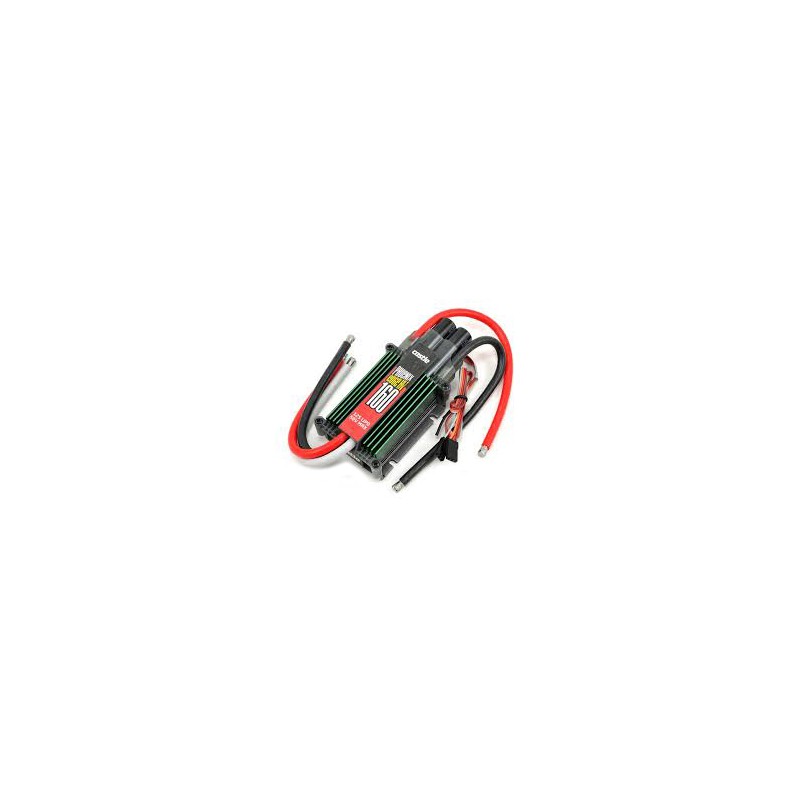

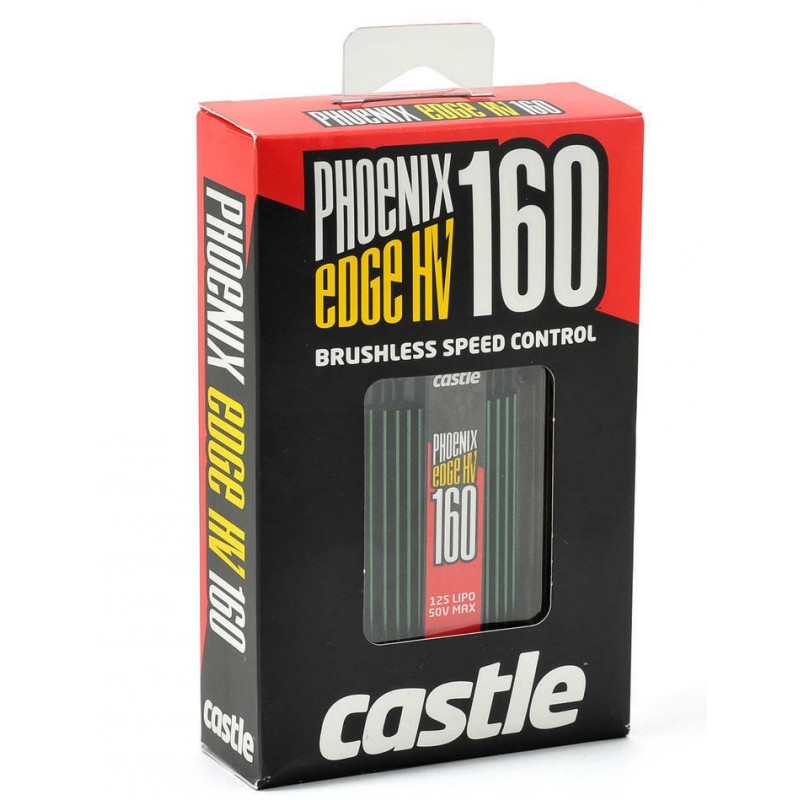

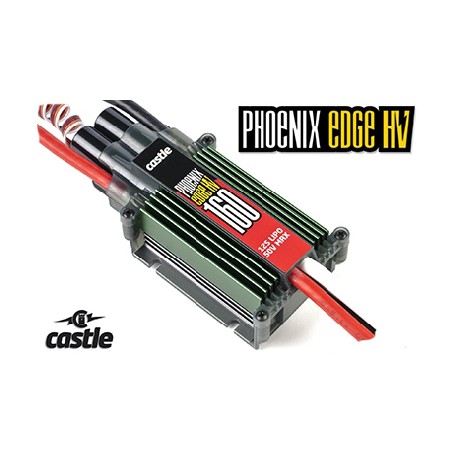

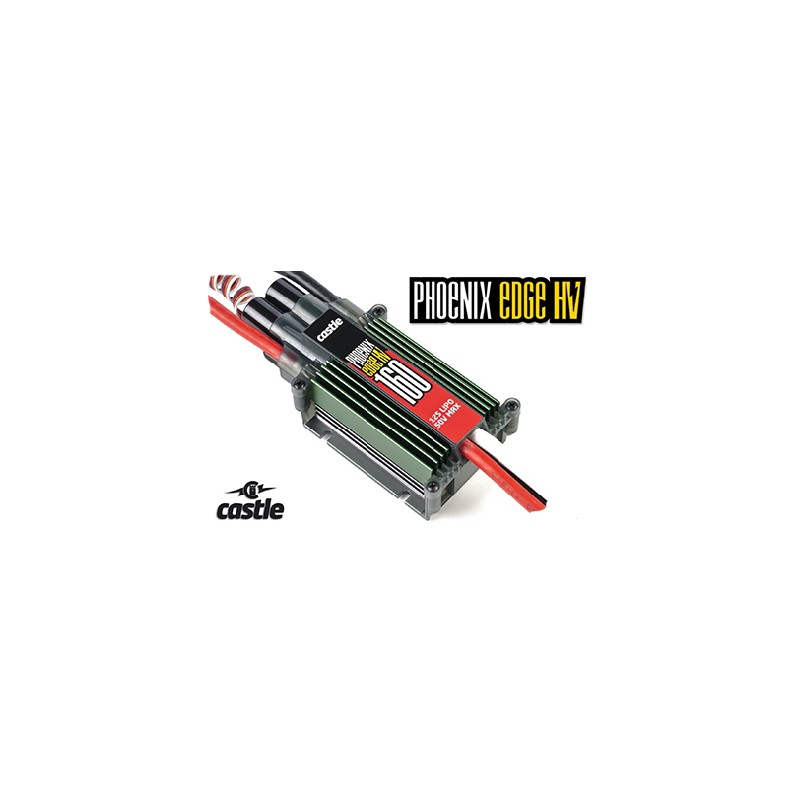

Phoenix Edge HV160 Castle Creations

Castle Creations Phoenix Edge HV160 Brushless ESC : full power for your rc heli.

With the debut of the Phoenix Edge series of ESCs the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire offering functions that modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.

The Phoenix Edge HV160 is intended for use in class 650 to 800 radio controlled helicopters, and fixed wing aircraft up to 1.20 size and larger.
As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter (free with included coupon).

Specifications:

Helicopter size : Class 650700/800
Input voltage : mini 3S LiPo / Maxi 12S LiPo
Max continuous at full throttle : 160 A
Width : 2.0"
Lenght : 4.3"
Height : 1.2"
Weight : 8.2 oz

Miscellaneous :
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software. Castle Field Link Programming Card (sold separately) compatible for select functions.
Note : you'll need soldering iron and solder to attach bullets to motor wires and battery connector to power wires.
