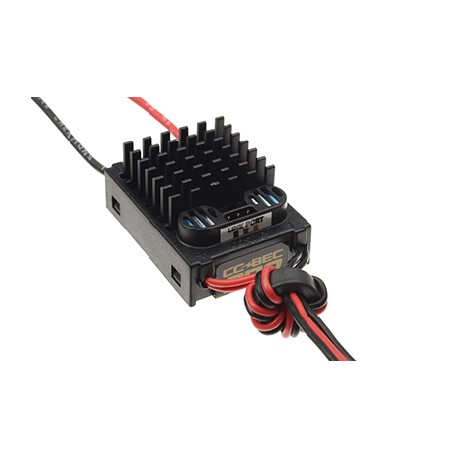

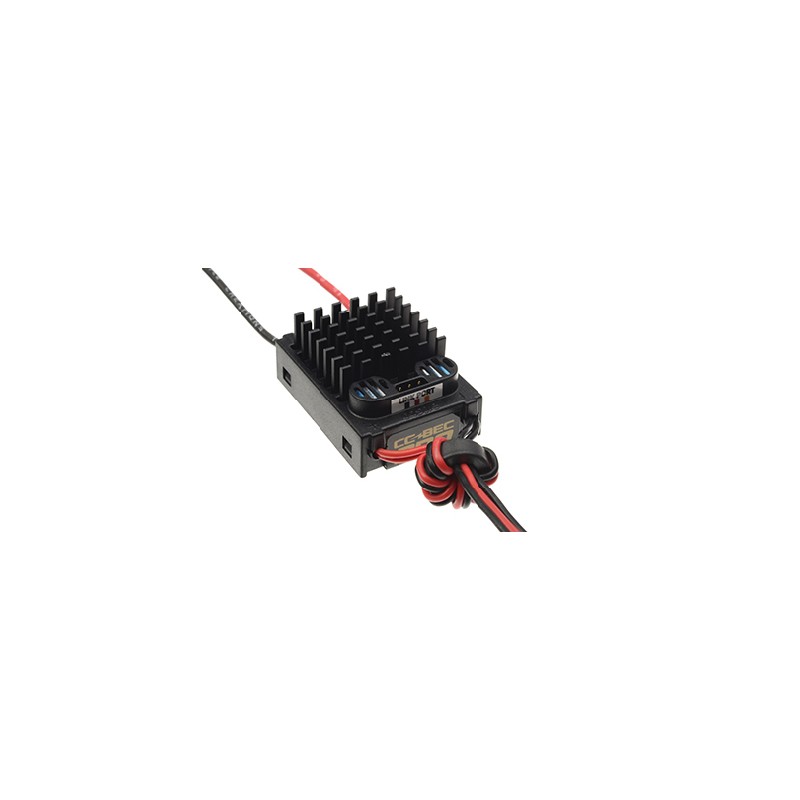

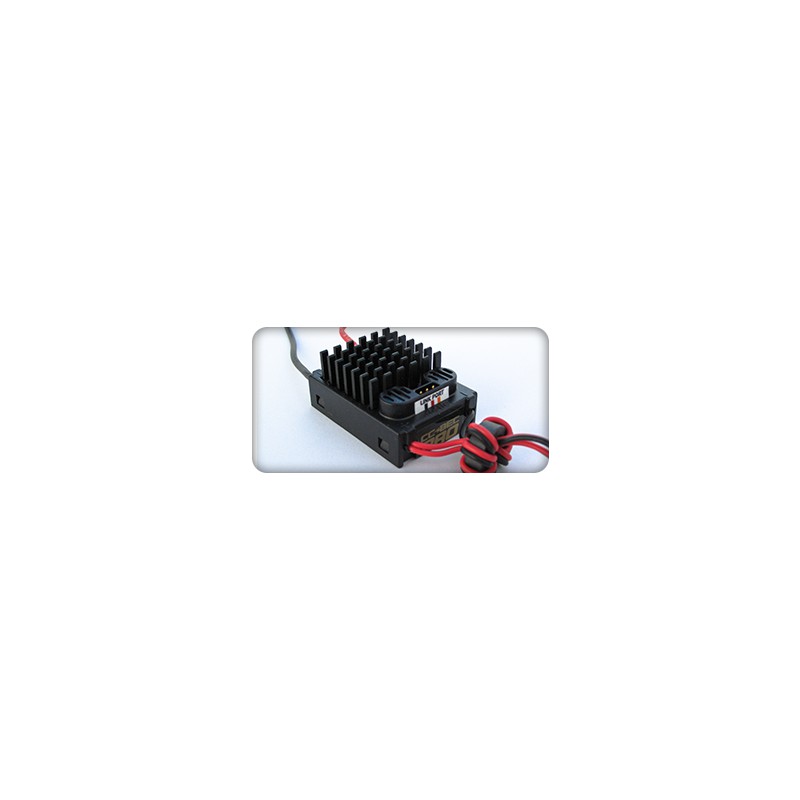

CC BEC PRO Castle Creations

Castle Creations Battery Eliminator Circuits are small devices that eliminate the need for a receiver and servo battery pack. They draw higher voltage from the motor batteries and drop it to a voltage level that is suitable for your receiver and servos. This is required in applications which draw high power for multiple servos or use more than 3S motor packs, as most ESCs with linear BECs are not designed for these applications.

The CC BEC Pro is designed to operate at up to 12S LiPo (50.4V) with a 20A peak servo load. Generally used for 1/5 scale cars or cars utilizing multiple high powered digital servos, lights, winches and other accessories. It is also useful in larger airplanes using 4 or more digital servos. Perfect for 500 size or larger helis.

The CC BEC PRO is supported by Castle Link V3 USB programming tool to make the most of its expanded setting options !

Specifications:

Lenght : 1.69" (43mm)
Width : 1.3" (33mm)
Height : 0.94" (24mm)
Weight : 1 oz* (29g*)
Max amps (with arflow) : 20 amps peak
Max continuous current (with airflow) : 16 volts input = 15 amps / 24 volts input = 13 amps / 32 volts input = 11 amps / 40 volts input = 9 amps / 48 volts input = 8 amps
Max volts : Cars: 8s (34v) / Airplanes: 10s (40v) / Helicopters (with brake disabled): 12s (50 Volts)
Adjustable output voltage : 4.8V to 12.5V.
