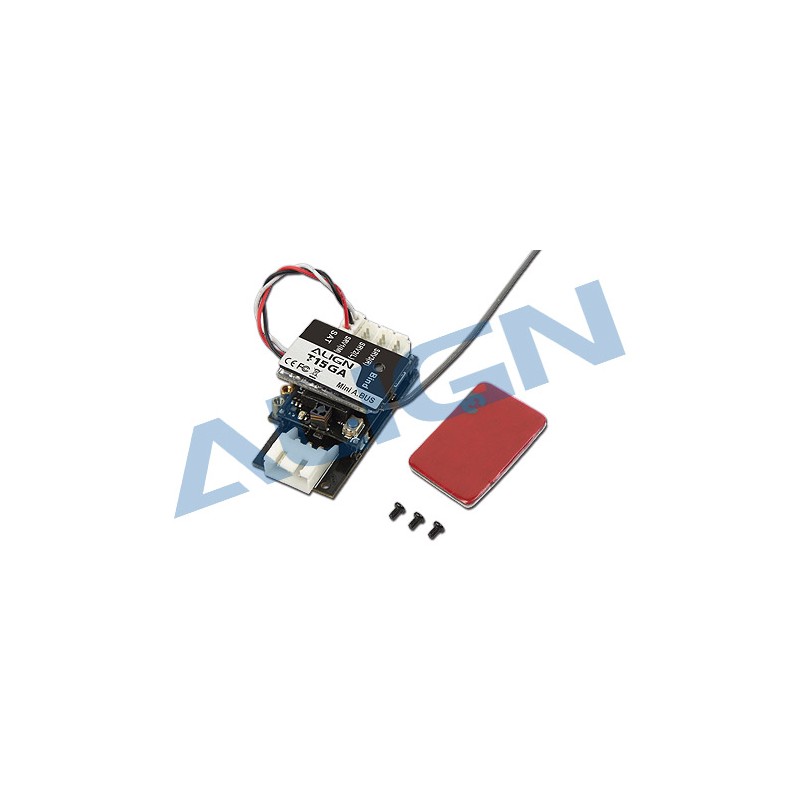

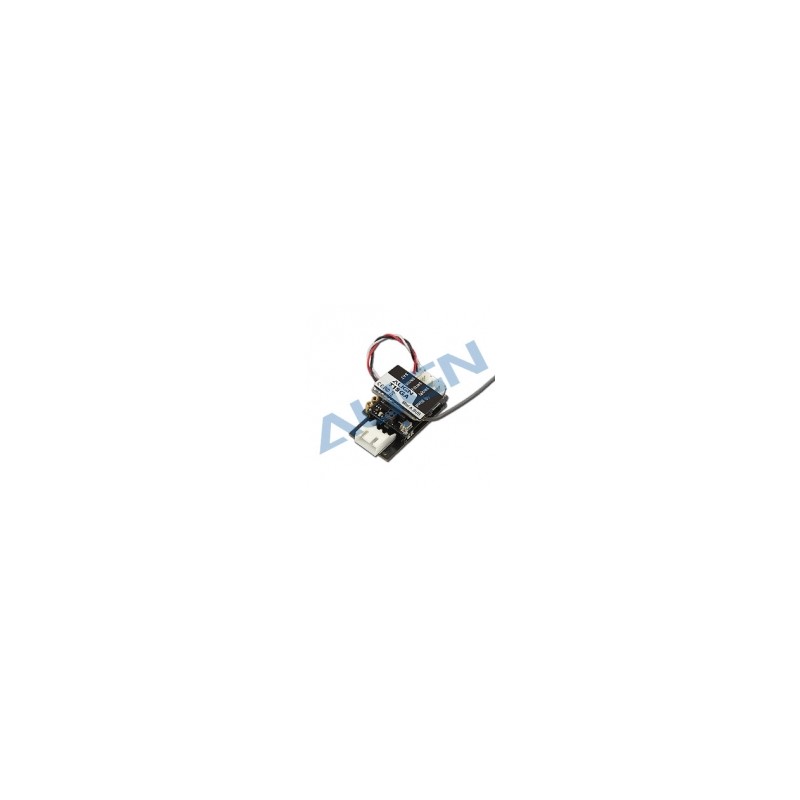

T15GA Flybarless System - A.BUS (HEG15012)

T15GA flybarless system (A.BUS) for Align T15 radio controlled helicopter.

● Integrate 6-axis gyro, receiver, ESC and a Bluetooth controlling system that allows set up and update of flight parameter settings via APP Interface System.
● 6-axis Gyro：3-axis gyroscope + 3-axis accelerometer using a superior ARM Cortex-M4 32-bits processor. 3D feeling is superior while auto-level ability is also agile and stable.
● Attitude Auto-level Mode：While there is no stick input for helicopter, the heli will auto-level and still keep at horizontal position, which is suitable for beginners.
● Rescue Mode：While wrong stick input is given or heli is in trouble, or you are in panic, activate the rescue mode by flipping a switch on the radio to keep helis at a level position.
● 3D Flying：Brand new DFCS (Direct Flight Control System) Controller allows to control real time flight. Strong Cortex-M4 Processor allows T15 to fly just like big scale helicopters.
● Built-in Receiver：ALIGN A.BUS.
● Plug-in Receiver (required)：Compatible with Spektrum DSM2/DSMX, JR DSM2/DMSS satellite.

Specifications:

● Operating voltage range：5V-8.4 V
● Operating current consumption: <100mA @ 5 Volt
● Rotational detection rate: 2000°/sec
● Rudder yaw detection rate: 2000°/sec
● Sensor resolution: 16 BIT
● Operating temperature: -20℃ ~ 65℃
● Operating humidity: 0% ~ 95%
● Swashplate support: MODE H-1
● Receiver support: ALIGN A.BUS / DSM2 / DSMX / DMSS
● Transmit distance: In open space without interference <150 m
