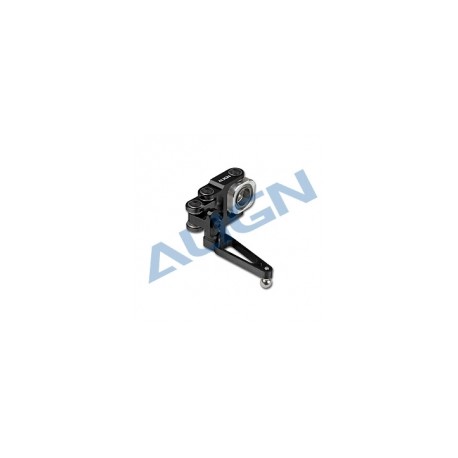

TB70 Metal Tail Pitch Assembly (HB70T005XX)

Metal tail pitch assembly for Align T-REX TB70 radio controlled helicopter.
Made with 6061-T6 aluminium alloy material and CNC processing.
Dual point attachment design for zero play and high precision control feel.
Produced with CNC aluminium alloy, with precision ball bearings at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.

Specifications:

● I-shaped arm ×1
● Mount link ×1
● Collar ×1 (Φ8×Φ9.4×4mm)
● Bearing holder ×1 (Φ12x15.4x11mm)
● Bearing MR128ZZ ×2 (Φ8xΦ12x3.5mm)
● Linkage ball C (M3x3.5) ×1 (Φ5x8.5mm)
● Tail control arm ×1 (38.7×10.7×4mm)
● Bearing F682XZZ ×6 (Φ2.5×Φ6Φ2.6mm)
● Socket button head screw ×1 (M3x5mm)
● Socket button head screw ×6 (M2.5x5mm)
