500XT Torque Drive Upgrade Set - H50T020XX

● Move your Align T-Rex 500X rc helicopter from belt transmission to Torque Tube System with this upgrade set.
● Highly reduce gear abrasion and increase power output gives more direct and precise flight performance and extraordinary tail performance. The new high intense Torque Tube allow to reduce gear abrasion and extend the gear lifetime value in extreme flight dynamics.

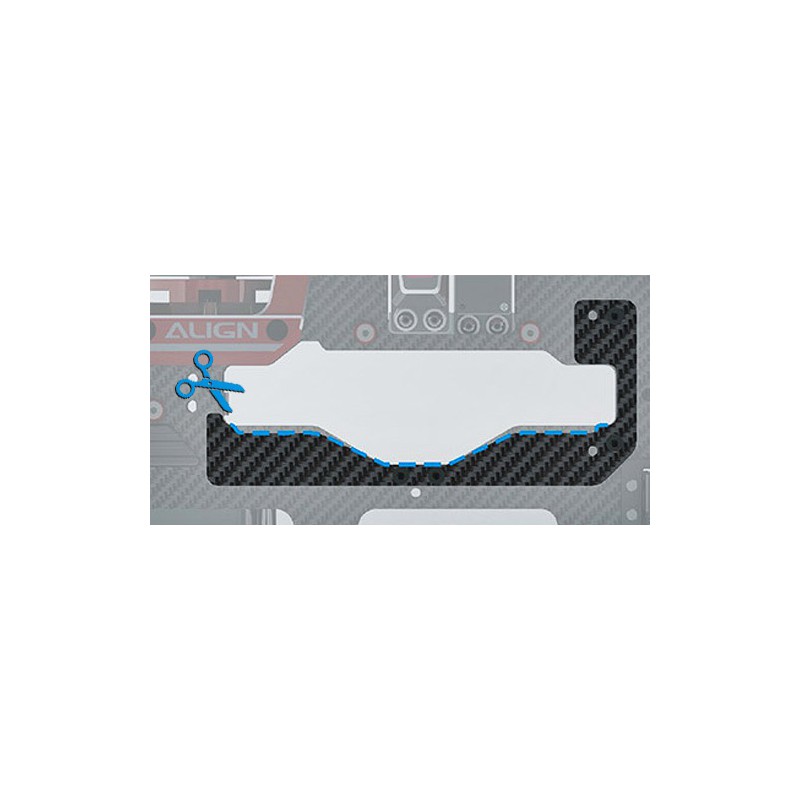

● Screw and fix the fixture on and modify the mainframe using rasp refer to the blue line instruction.
● To be used with:
500XT Torque Tube (H50T018XXW)
500XT Tail Boom Mount Set (H50T016XXW)
M0.7 Torque Tube Front Drive Gear Set/34T (H50G013XXW)
Slant Thread Main Drive Gear/134T (H50178QA)
130T Autorotation Tail Drive Gear (H50G010XXW)
500X Main Gear Case Set (H50G006XXW)
500XT One-way Bearing Shaft (H50G012XXW)

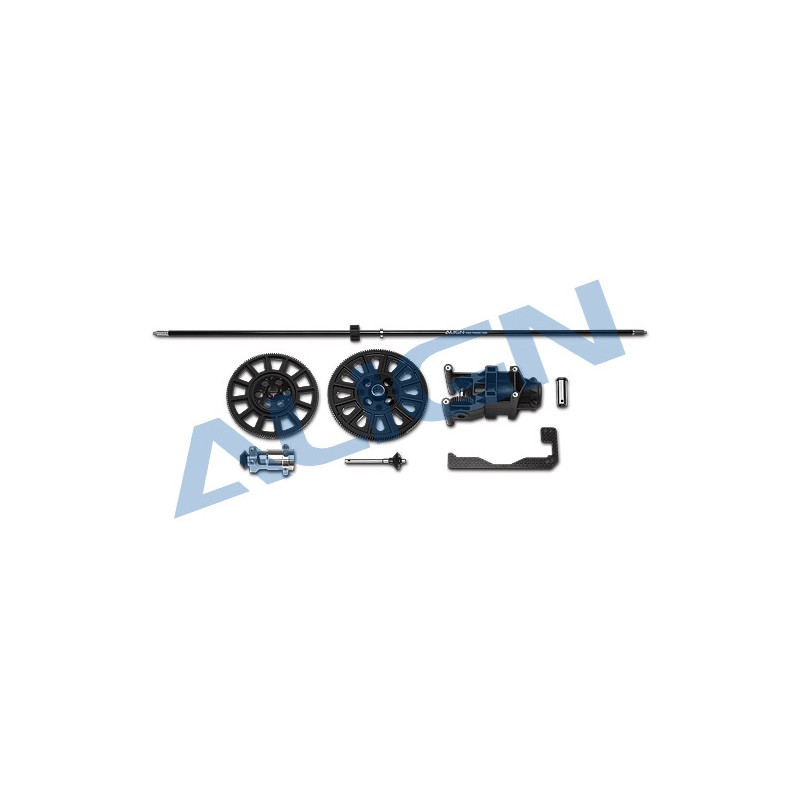

Specifications:

● 500XT Torque Tube x1
● 500XT Tail Boom Mount Set x1
● 500XT Torque Tube Rear Drive Gear Set x1
● Slant Thread Main Drive Gear/134T x1
● 130T Autorotation Tail Drive Gear x1
● 500XT Main Drive Gear Mount x1
● 500XT One-way Bearing Shaft x1
● 500XT Tail Torque Tube Unit x1
● 500XT Fixture for mainframe adjustment x1
