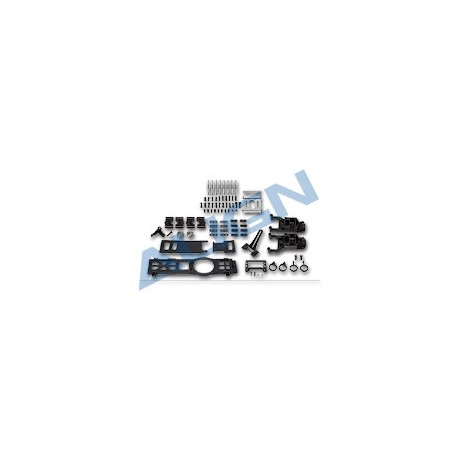

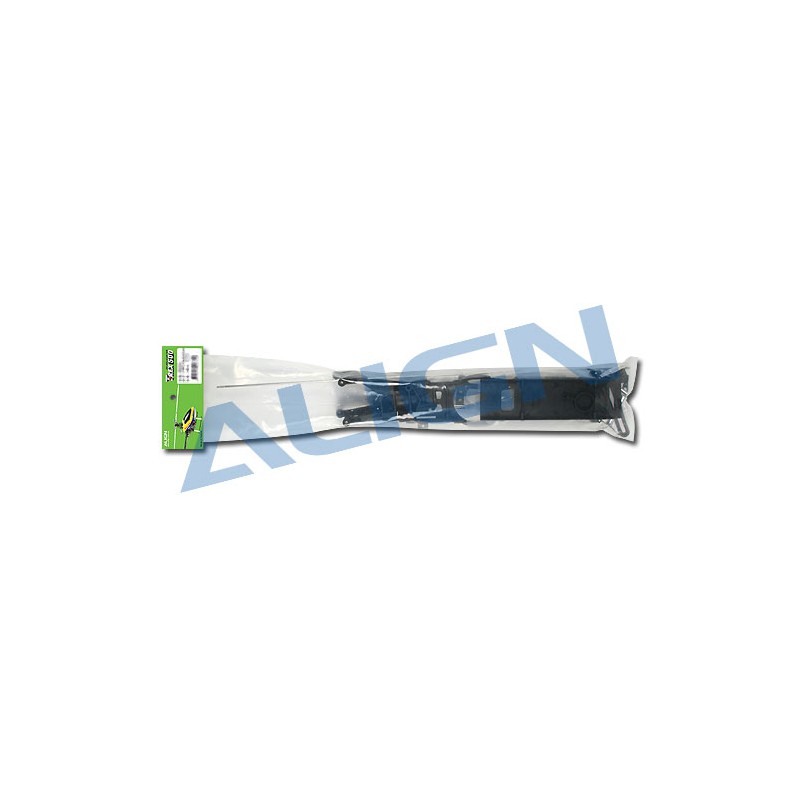

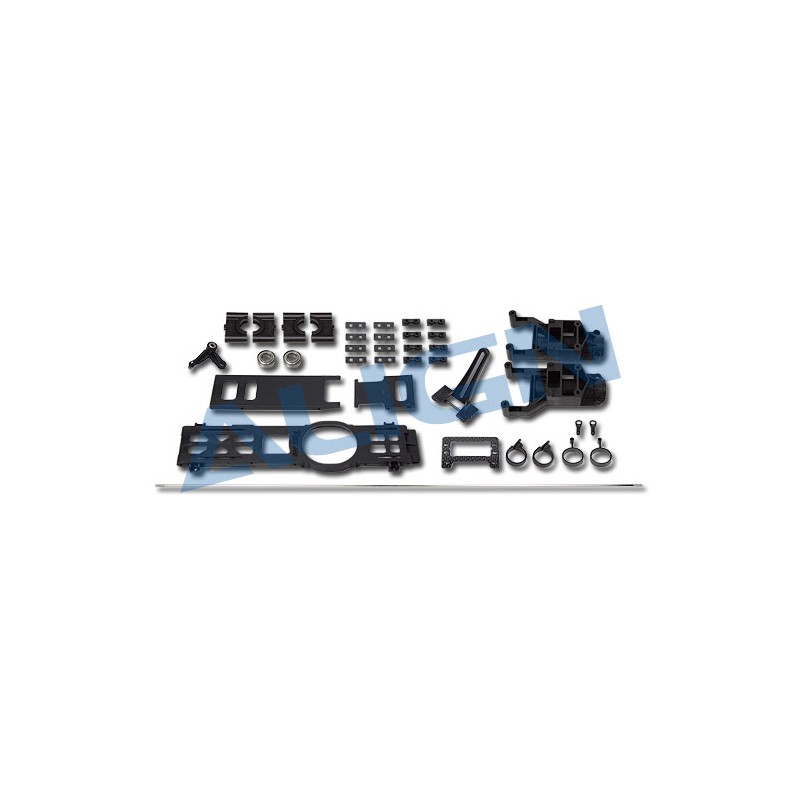

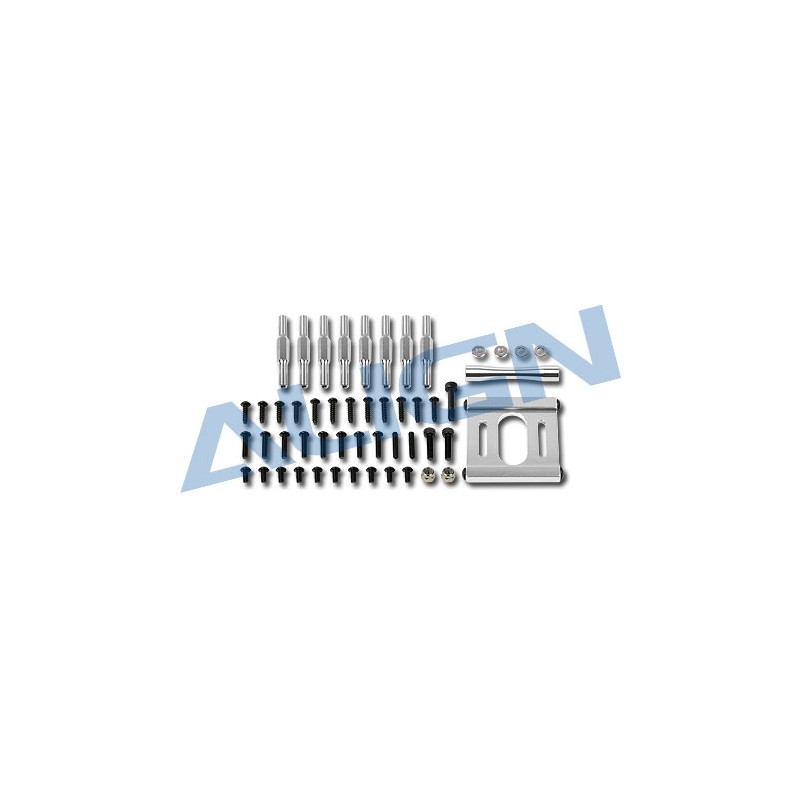

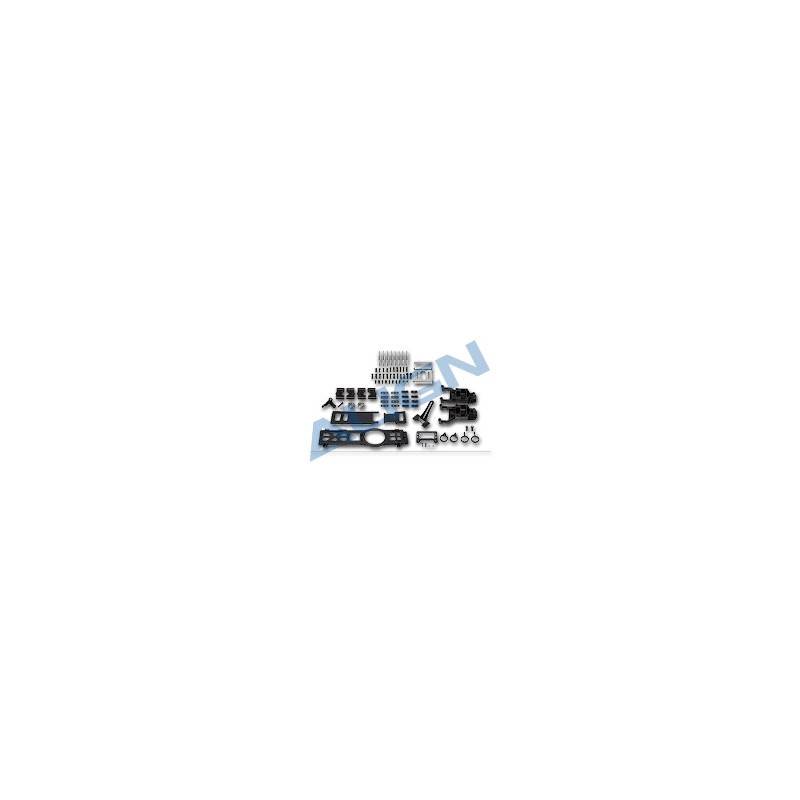

500PRO Scale Fuselage Refitting Components (HF5015)

● Scale fuselage refitting components for Align T-Rex 500PRO radio controlled helicopter.
● Use for T-REX 500E PRO for AH-1 and UH-60 T-Rex 500 scale fuselage.

Specifications:

● Anti rotation bracket ×1
● Battery mount ×1
● Bottom bracket ×1
● Bearing block ×4
● Gyro Mount ×1
● Motor mount ×1
● Hexo mounting bolt ×8 (4x35.7mm)
● Aluminum frame mounting bolt ×1 (M2.5x39mm)
● Rudder servo mount ×2
● Tail control guide ×2
● Carbon fiber rudder servo bracket ×1 (3K Carbon)
● Tail Linkage Rod ×1
● Tail boom mount (L) ×1
● Tail boom mount (R) ×1
● Plastic Servo Nut ×8
● Servo plate ×8 (16.8x6.4x2.5mm)
● Washer ×2 (Φ3xΦ4.8x0.3mm)
● Linkage ball A ×1 (T2.6x3.5)
● Tail rotor control arm ×1
● Collar ×1 (Φ3xΦ4.9x5mm)
● Ball link ×2 (POM)
● Bearing MR63ZZ ×2 (Φ3xΦ6x3mm)
● Bearing MR688ZZ ×2 (Φ8xΦ16x5mm)
● M3 Nut ×2
● Socket button head self tapping screw ×4 (T2.6x8mm)
● Socket button head self tapping screw ×8 (T2.6x10mm)
● Socket button head screw ×8 (M2.5x8mm)
● Socket button head screw ×10 (M2.5x6mm)
● Socket button head screw ×4 (M3x6mm)
● Socket screw ×2 (M3x10mm)
● Socket collar screw ×1 ( M3x15mm)
● M2.5 Set screw ×2 (M2.5x12mm)
● Washer ×2 (Φ2.6xΦ5.8x0.6mm)
