DS820M High Voltage Brushless Servo - Align HSD82001

● Designed specifically for radio controlled helicopter, with brushless motor for fast speed, high torque and super efficiency reaction, allowing rc heli to perform with faster and higher precision. Brand new high voltage brushless servo equipped new CNC machined full aluminum case, not only exhibited top of the line servo aesthetics, but also combine heat sink function and best protection for the servo.
● Built with brushless motor design for fast speed, high efficiency. And with the absence of brush wear, the longevity of servo is greatly increased.
● Supports 8.4 Volts high voltage to provide optimal speed and torque performance of the brushless servo.
● Designed specifically for rc helicopters, with highest specifications on the market: 0.055sec/60°ultra fast speed and 23kg-cm monstrous torque, allowing helicopter to perform with faster and higher precision.
● Ultra high signal resolution for excellent precision and smoothness.
● Hardened high strength superalloy gears that increase the lifetime.
● Supports both analog and digital control signals.
● Suitable for Align T-Rex 550/600/700/800 cyclic and rudder use.

Specifications:

● Stall torque: 22kg.cm(7.4V) / 23kg.cm(8.4V)
● Motion speed: 0.06sec/60°(7.4V) / 0.055sec/60°(8.4V)
● Rating voltage: DC 7.4-8.4V
● Temperature range: -20°C ~ +60°C
● Dimension: 40 x 20 x 39mm
● Weight: 80g

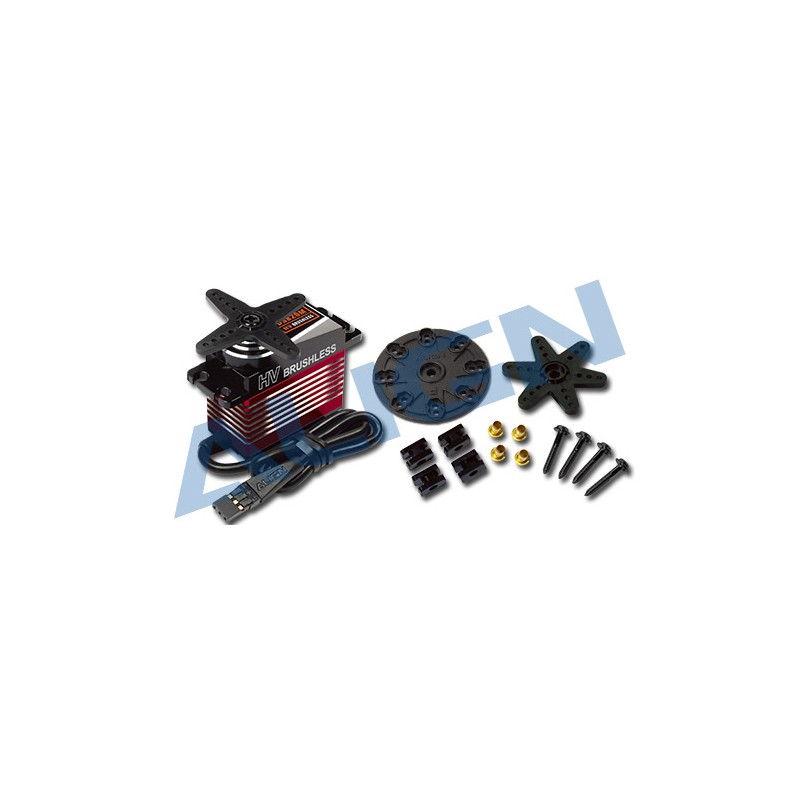

In the DS820M box:

● DS820M High Voltage Brushless servo x1
● Servo arm x1
● DS615/655 servo arm set x1
● Socket botton head screw x4 (M2.5x10mm)
