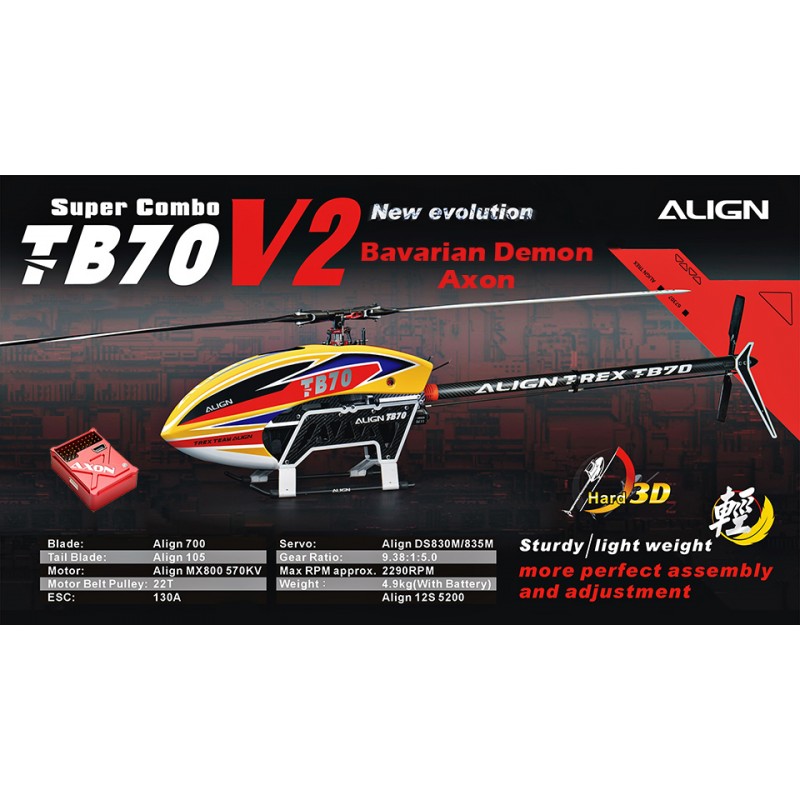

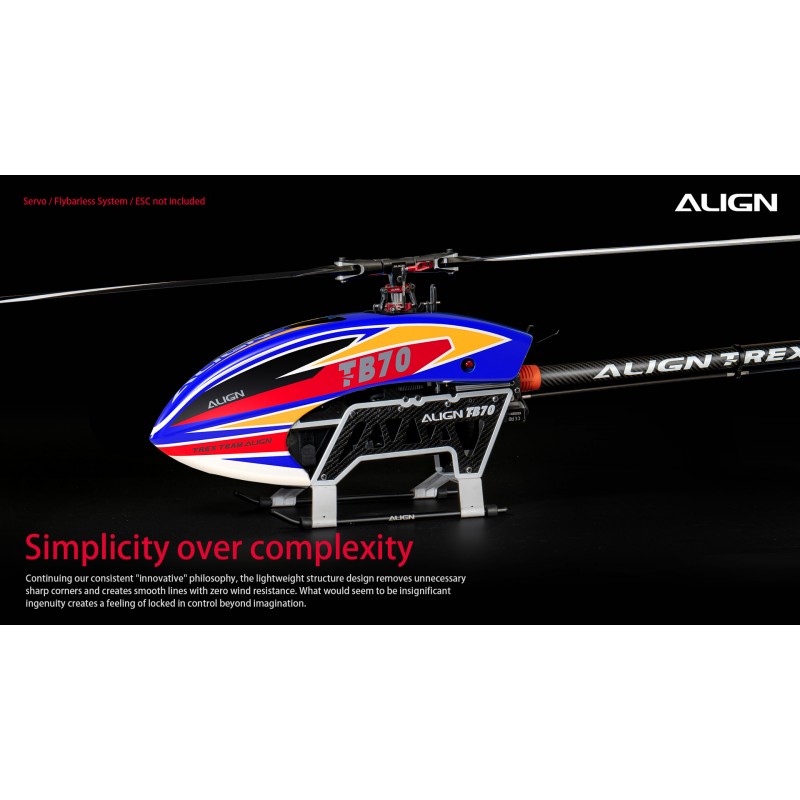

Align TB70 V2 Super Combo Axon RC Helicopter (RH70E59X-BDA)

Discover the Align 2024 innovation with the T-REX TB70 V2 brand new rc helicopter model !
A radio-controlled helicopter designed for sport flying, aerobatics or 3D.

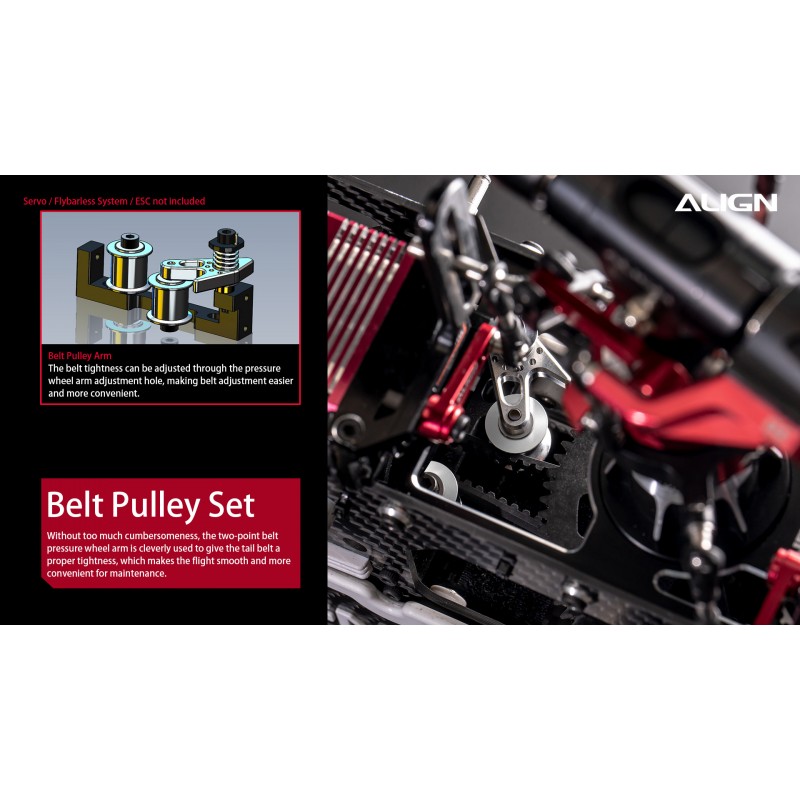

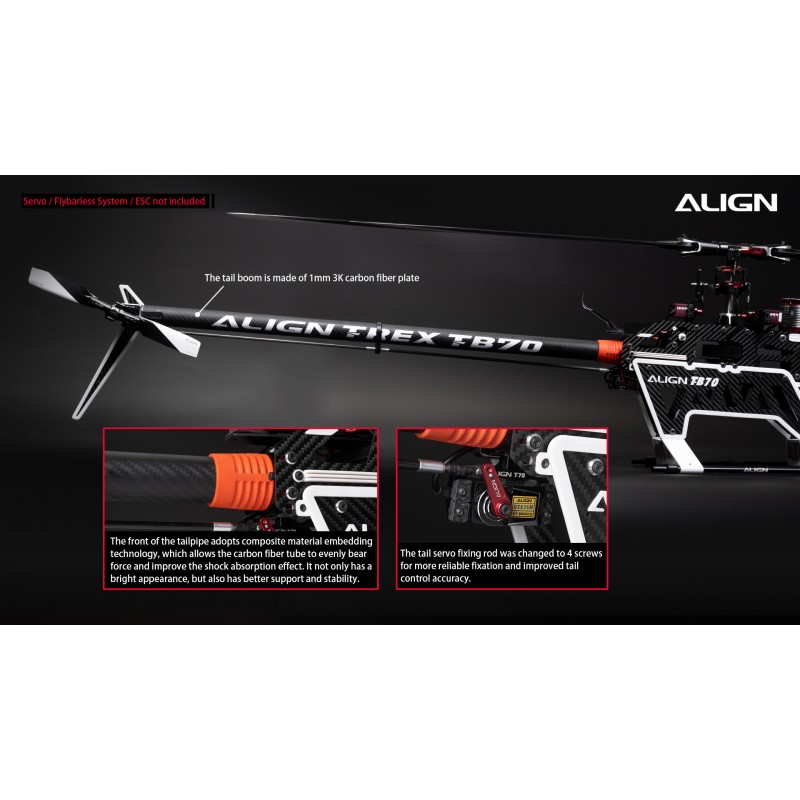

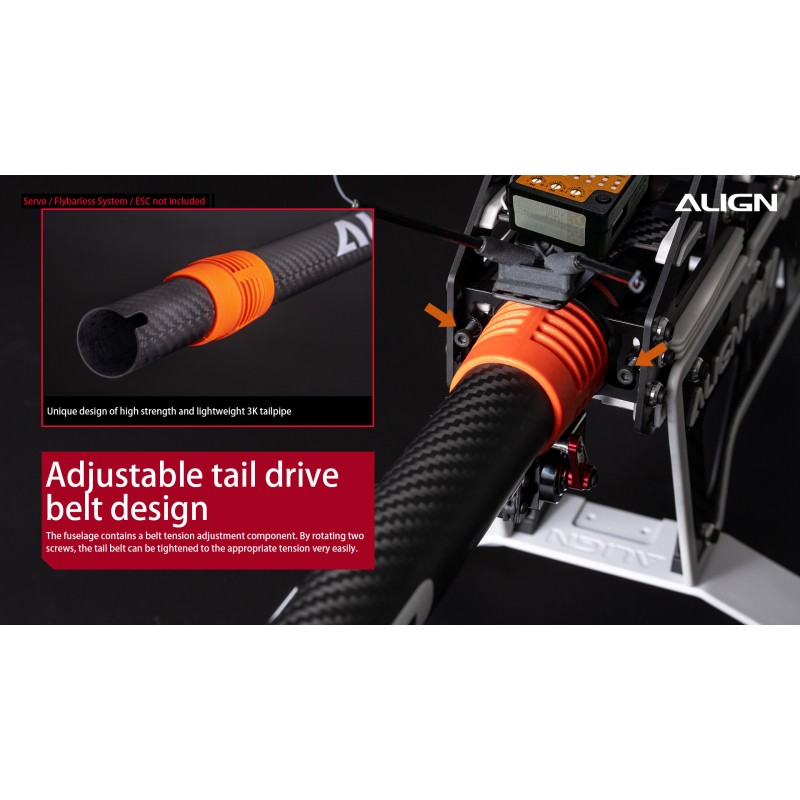

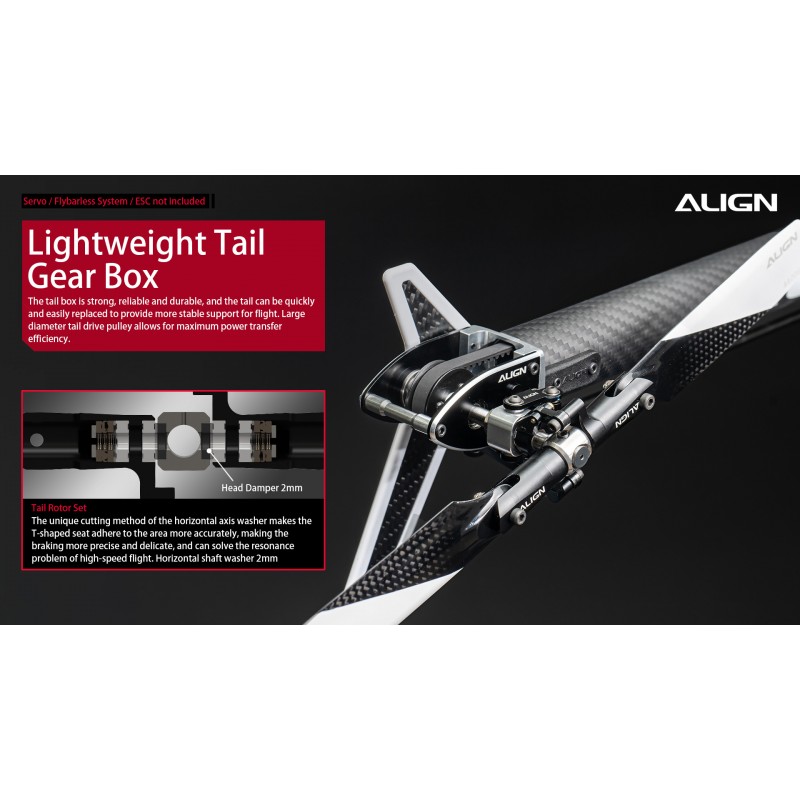

You will love this concept: new type of gearbox, belt driven tail rotor, tail boom without brace.
Lightweight, but sturdy. More perfect assembly and adjustment.

Lighter, more powerful and quieter than the T-Rex 700 !

Specifications:

● Length: 1356 mm
● Height: 358 mm
● Width: 187 mm
● Main blade length: 650-730 mm
● Main rotor diameter: 1542 mm
● Tail length: 105-115 mm
● Tail rotor diameter: 279 mm
● Motor belt pulley: 22 T
● Belt pulley: 50 T

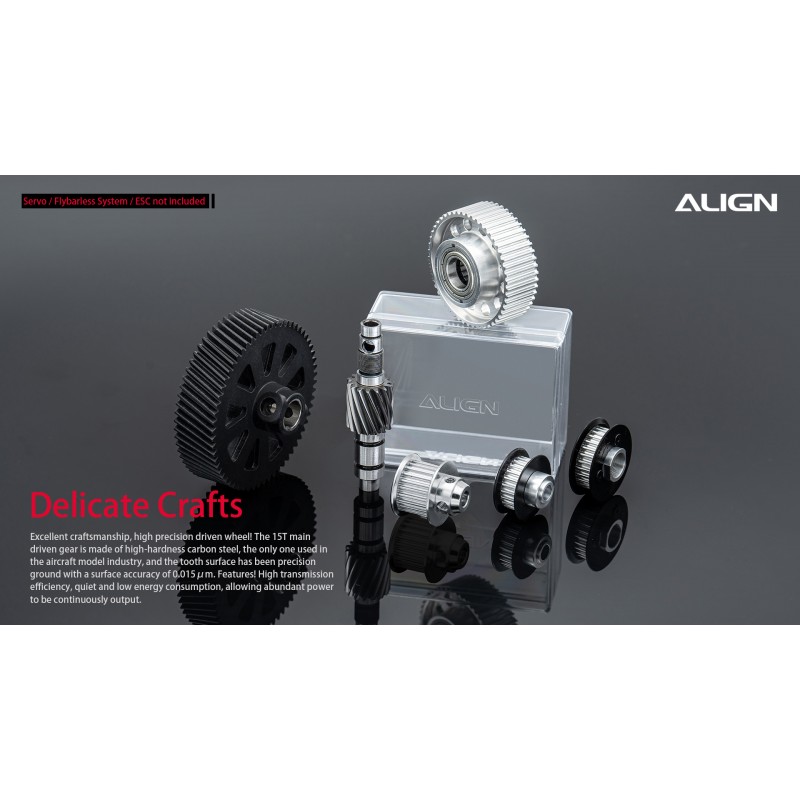

● Front drive main shaft: 15 T

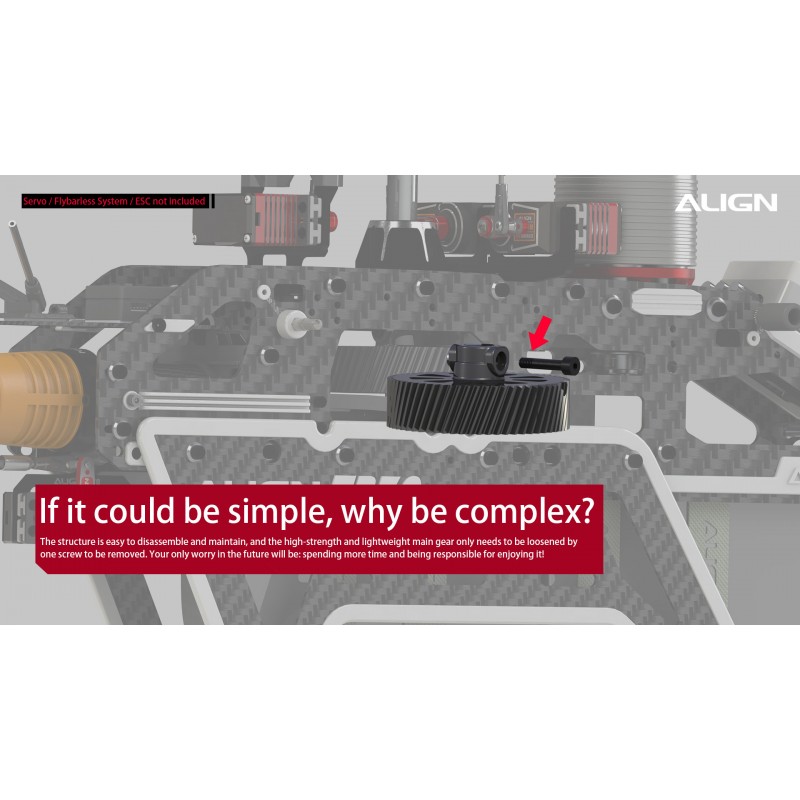

● Main drive gear: 62 T
● Autorotation tail drive gear: 27 T
● Tail drive gear: 23 T
● Drive gear ratio: 9.38:1:4.83
● Max RPM (approx.): 2400 RPM
● Flying weight (with battery 12S / 5200 mAh): approx. 4.9kg

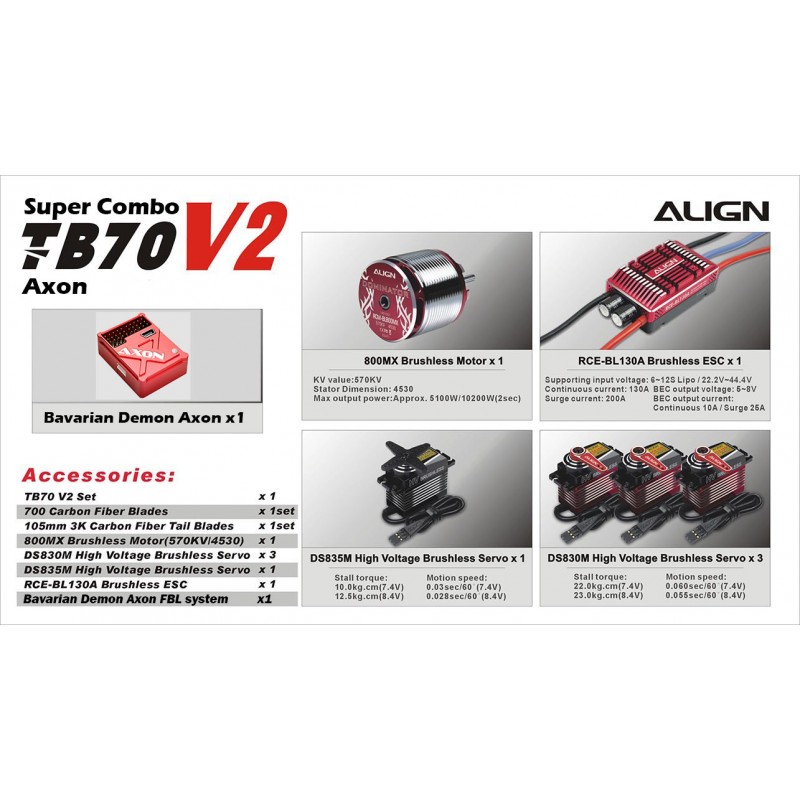

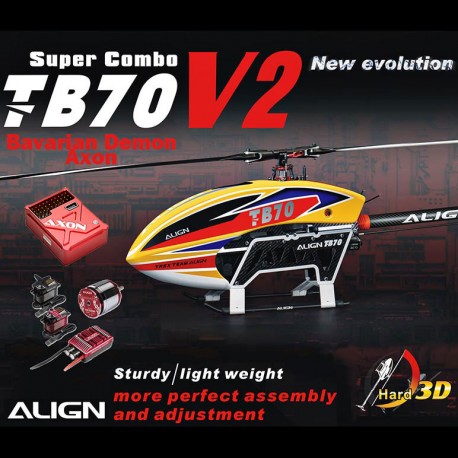

In the box of this demonic kit:

● Align TB70 V2 Super Combo set x1
● 700 carbon fiber blades set x1
● 22T motor belt pulley x1
● 105 mm carbon fiber tail blades set x1

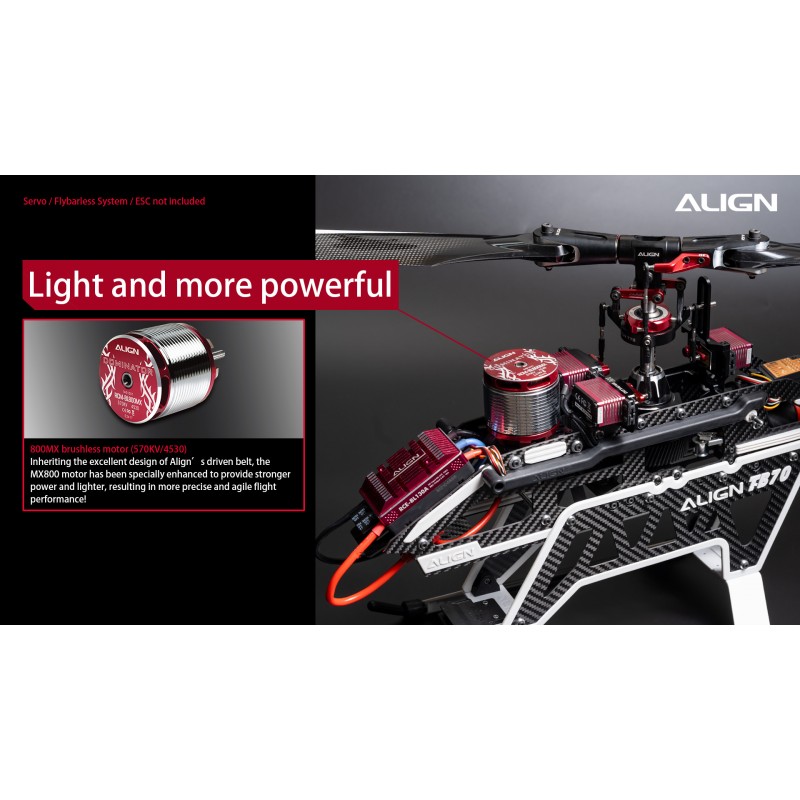

● 800MX brushless electric motor (570KV/4530) x1
● DS830M High Voltage brushless swashplate servo x3
● DS835M High Voltage brushless rudder servo x1
● Bavarian Demon Axon flybarless system x1
● Align RCE-BL130A Brushless ESC x1

Radio transmitter and electronic equipment required for assembly (not included in the kit):

● Transmitter (6-channel or more, helicopter system)
● Receiver (6-channel or more)
● Lipo Intelligent Balance Charger
● 22.2V 6S 4000~5800mAh Li-Po Battery x2
● Digital pitch gauge
● Multi-function tester
