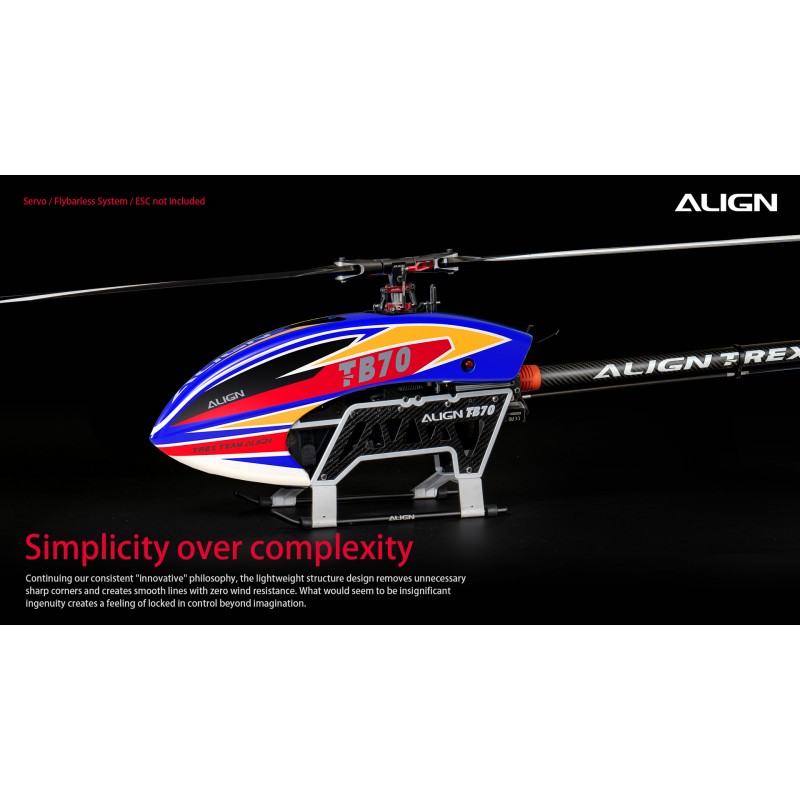

Align TB70 V2 Kit RC Helicopter (RH70E64X)

Discover the Align 2024 innovation with the TB70 V2. A radio-controlled helicopter designed for sport flying, aerobatics or 3D.

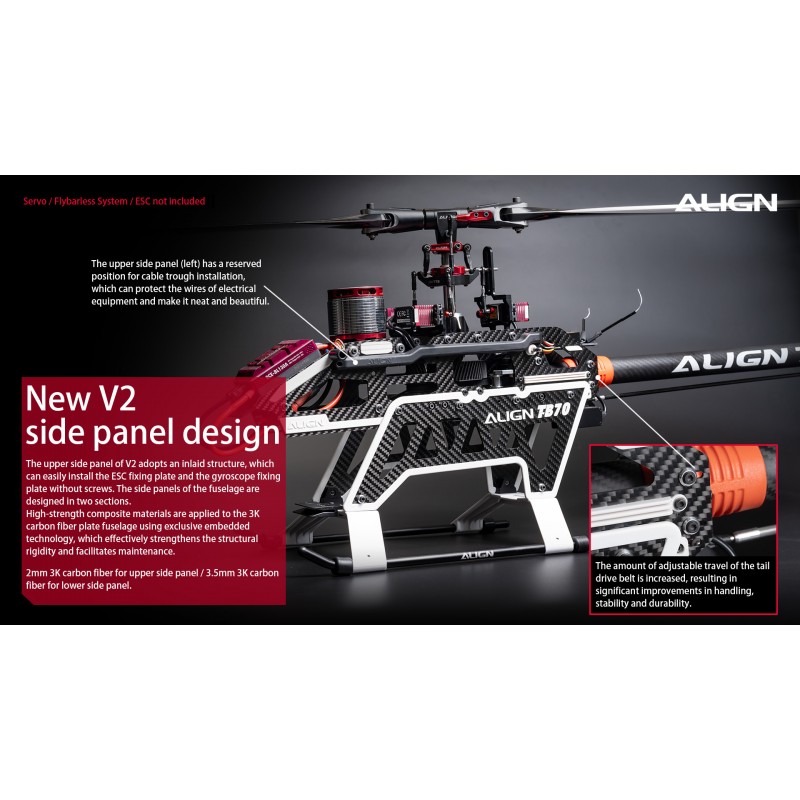

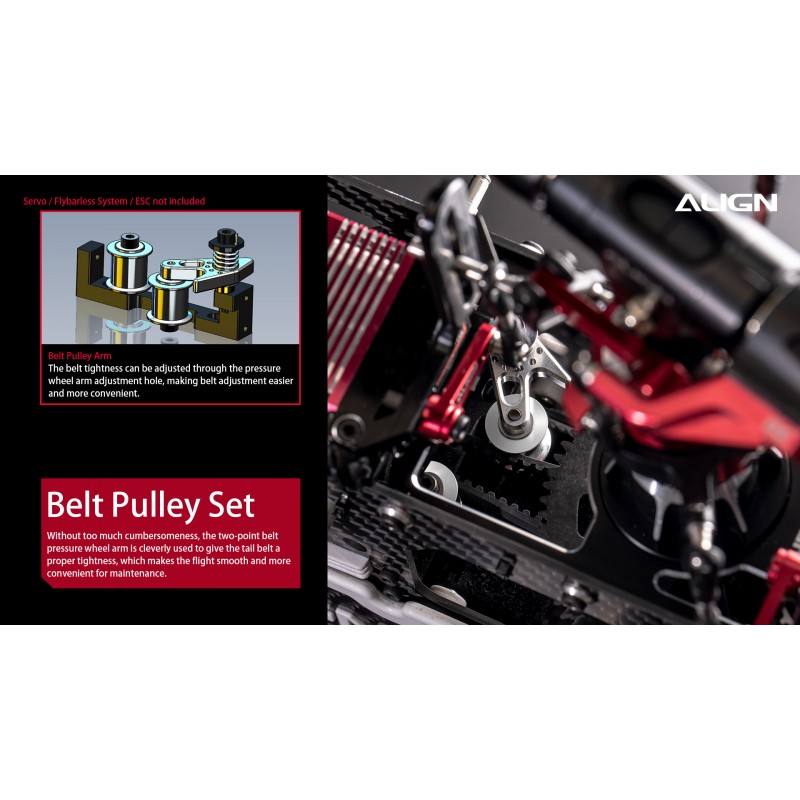

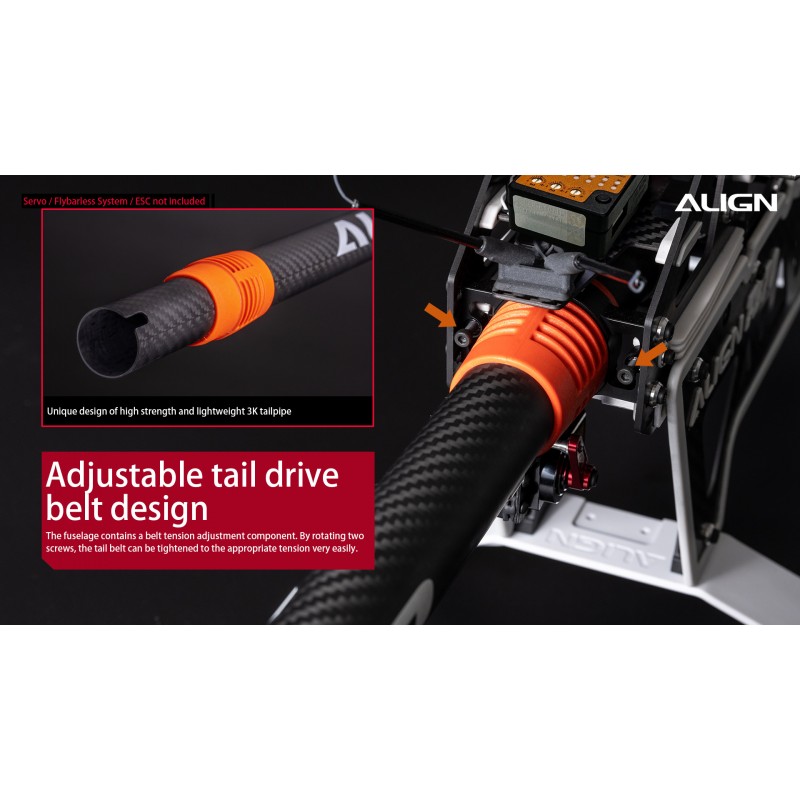

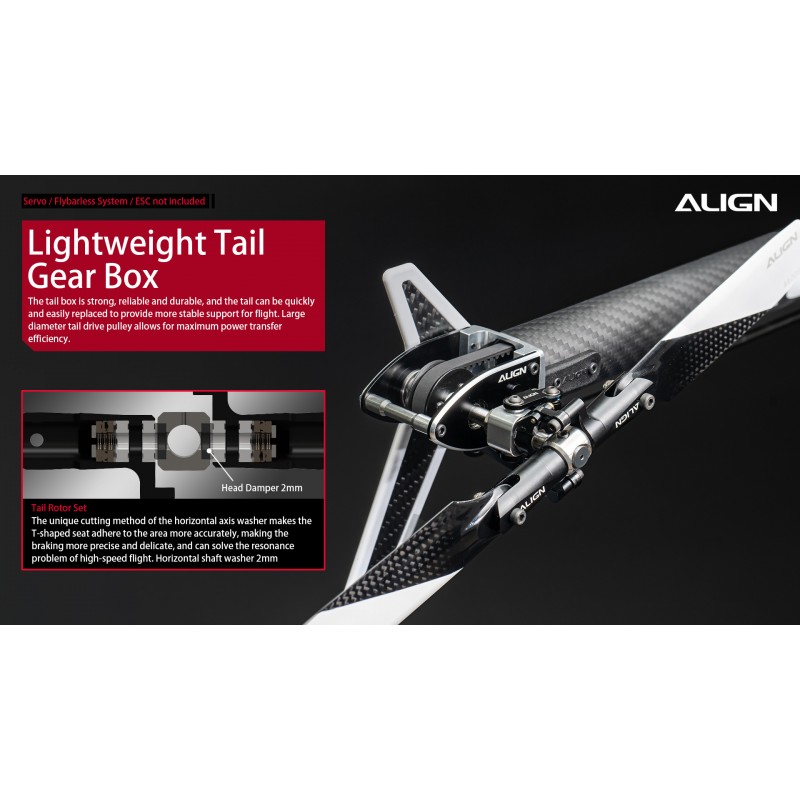

You will love this concept: new type of gearbox, belt driven tail rotor, tail boom without brace.

Lighter, more powerful and quieter than ever.

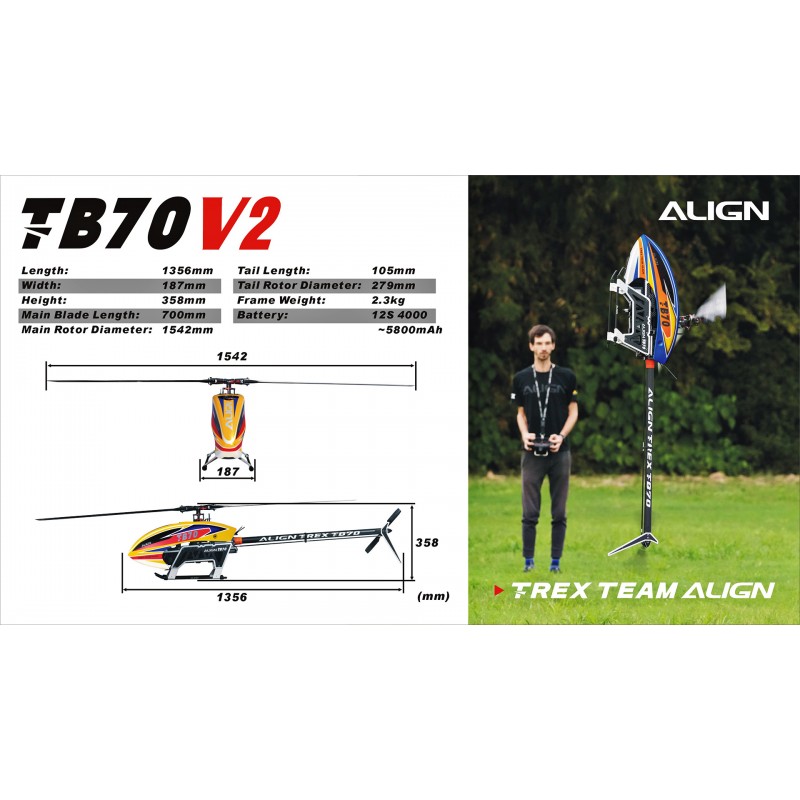

Specificatiosns:

● Length: 1356 mm
● Height: 358 mm
● Width: 187 mm
● Main blade length: 650-730 mm
● Main rotor diameter: 1542 mm
● Tail blade length: 105-115 mm
● Tail rotor diameter: 279 mm

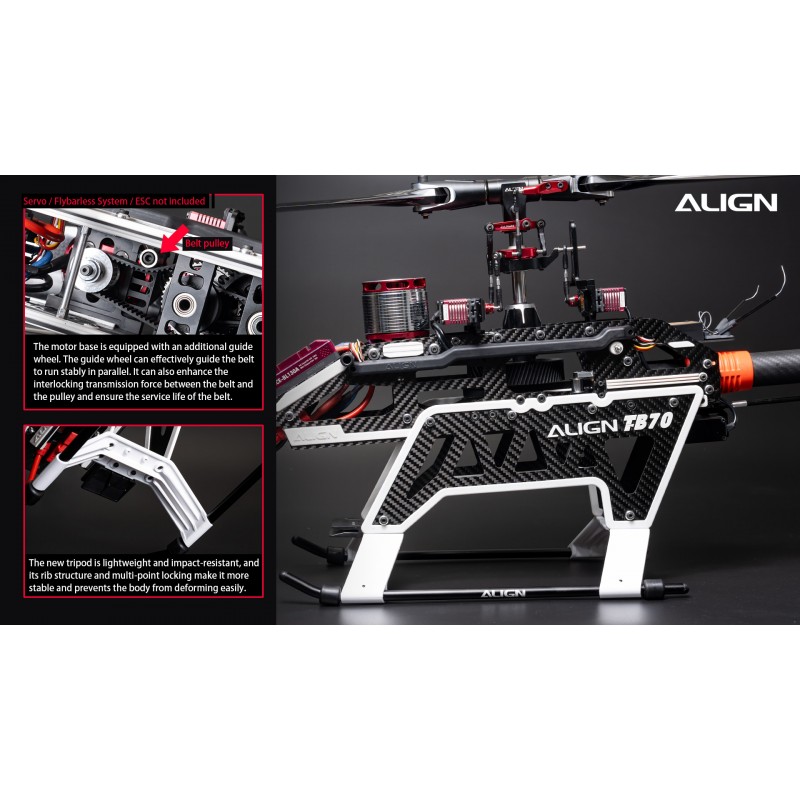

● Motor belt pulley: 22 T
● Belt pulley: 50 T

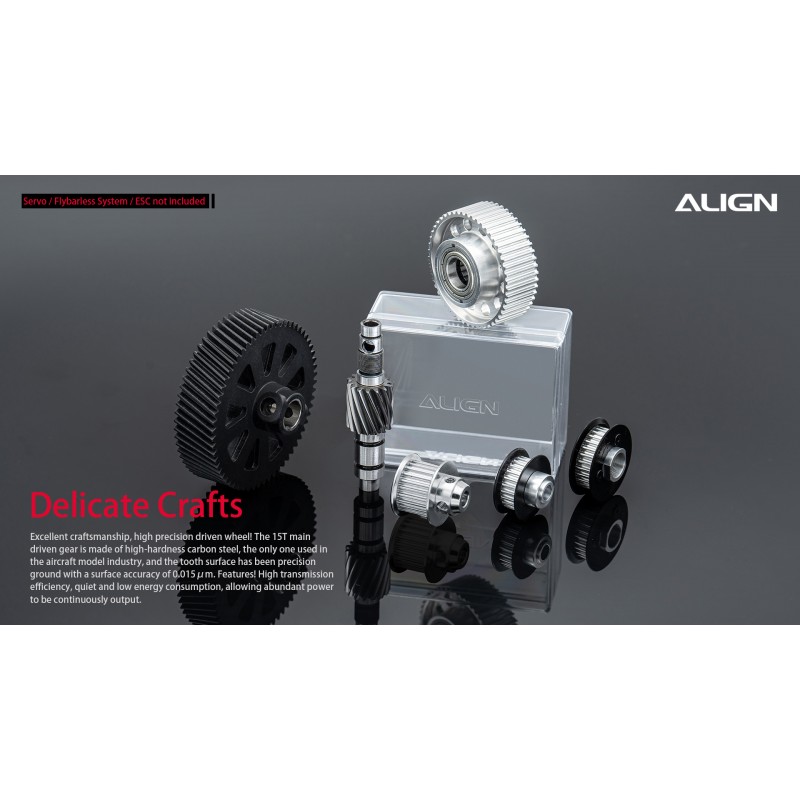

● Front drive main shaft: 15 T

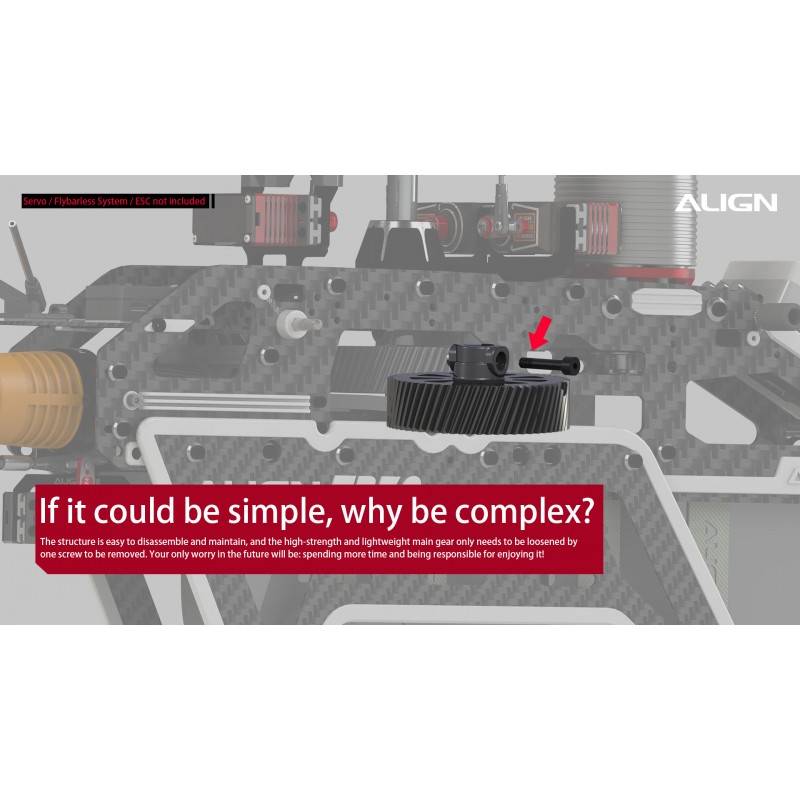

● Main drive gear: 62 T
● Autorotation tail drive gear: 27 T
● Tail drive gear: 23 T
● Drive gear ratio: 9.38:1:4.83
● Max RPM (approx.): 2400 RPM
● Frame weight: approx. 2.3 kg

In the box:

● TB70 Kit x1 set
● 22T motor belt pulley x1
● 700 carbon fiber blades set x1
● 105mm 3K carbon fiber tail blades set x1

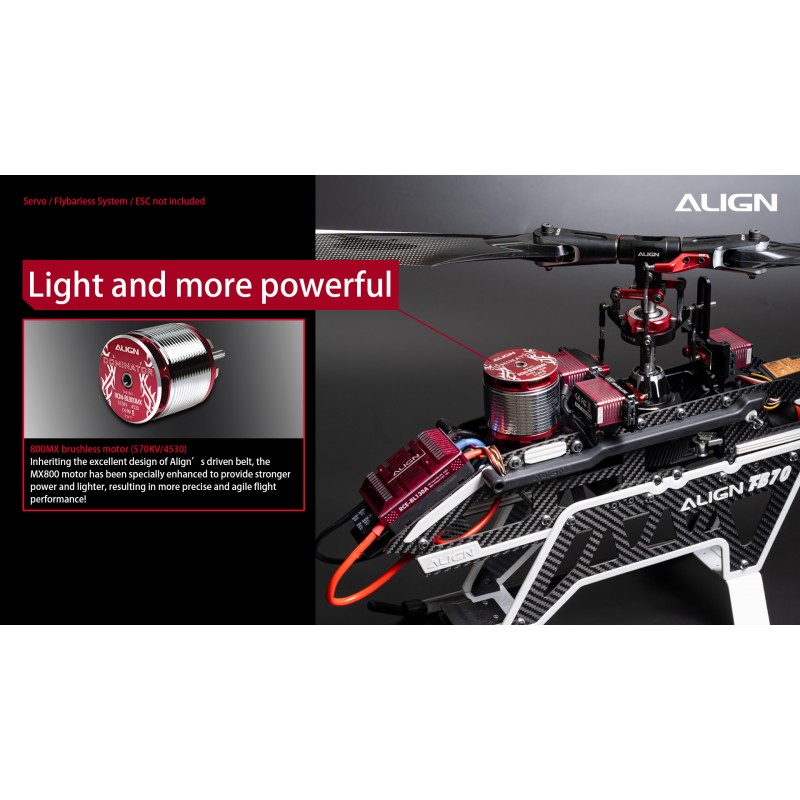

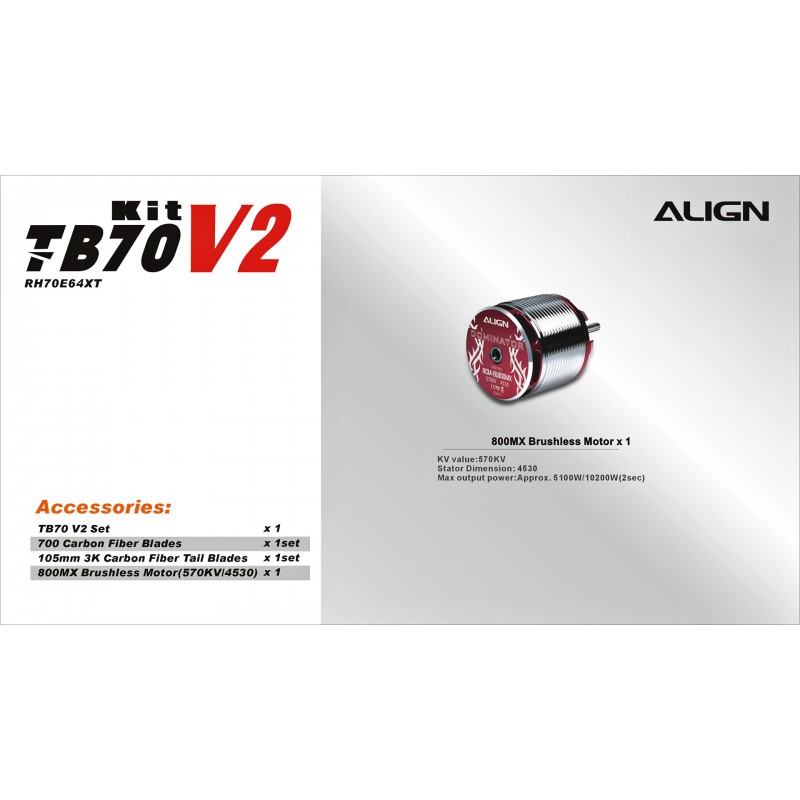

● 800MX brushless electric motor (570KV/4530) x1

Radio transmitter and electronic equipment required for assembly:

● Transmitter (6-channel or more, helicopter system)
● Receiver (6-channel or more)
● 22.2V 6S 4000~5800mAh Li-Po battery x2
● Digital pitch gauge
● Multi-function Tester
● Flybarless System
● CCPM brushless servo x3
● Rudder brushless servo x1
● Brushless ESC x1
