Align TB60 KIT RC Helicopter (RH60E31X)

With the same technical configuration as its brother TB70, the TB60 rc helicopter renews the 550/600's offer in the category.
As usual, Align offers a very versatile helicopter, with performing capabilities in every flying style (aerobatic, 3D).

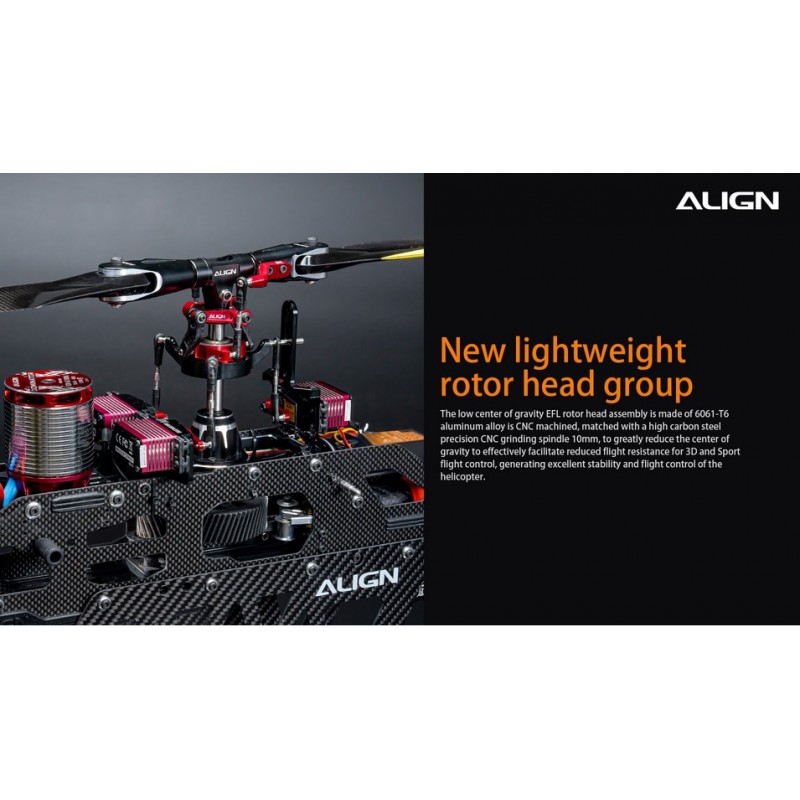

Thanks to the new type of rotor head / gear box group, the TB60 offers a narrow line, for the benefit of finesse and elegance.
This all-new TB60 takes Align's 2023 architectural concept, with features that make construction, use and repair even simpler.
The TB family is more mechanical simplicity without losing the explosive performance of the T-Rex family !

Specifications:

● Length: 1218 mm
● Height: 353 mm
● Width: 183 mm
● Main blade length: 600 mm
● Main rotor diameter: 1339 mm

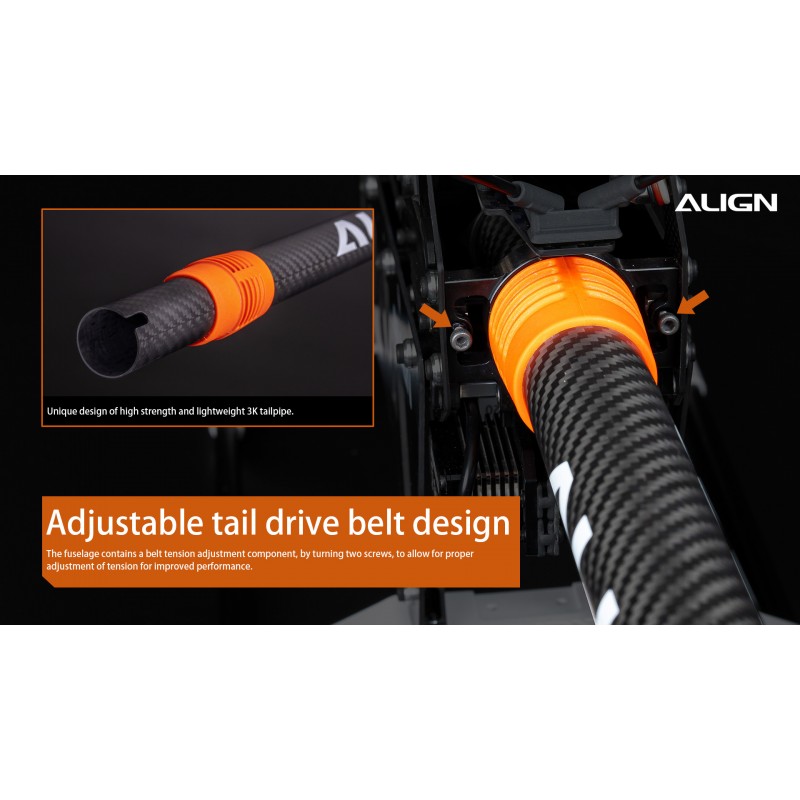

● Tail length: 95 mm
● Tail rotor diameter: 253 mm

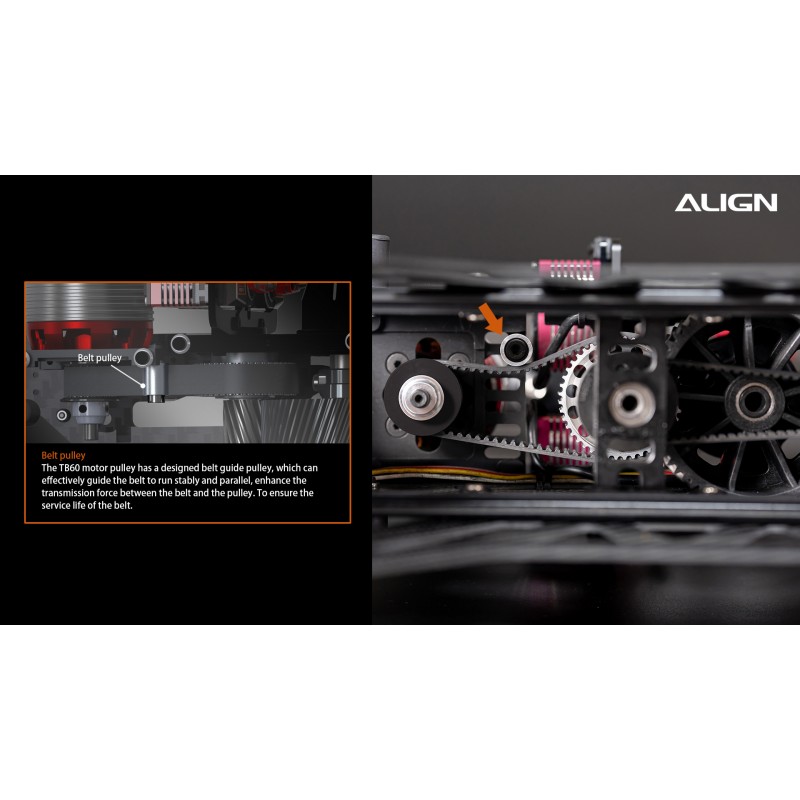

● Motor belt pulley: 23T

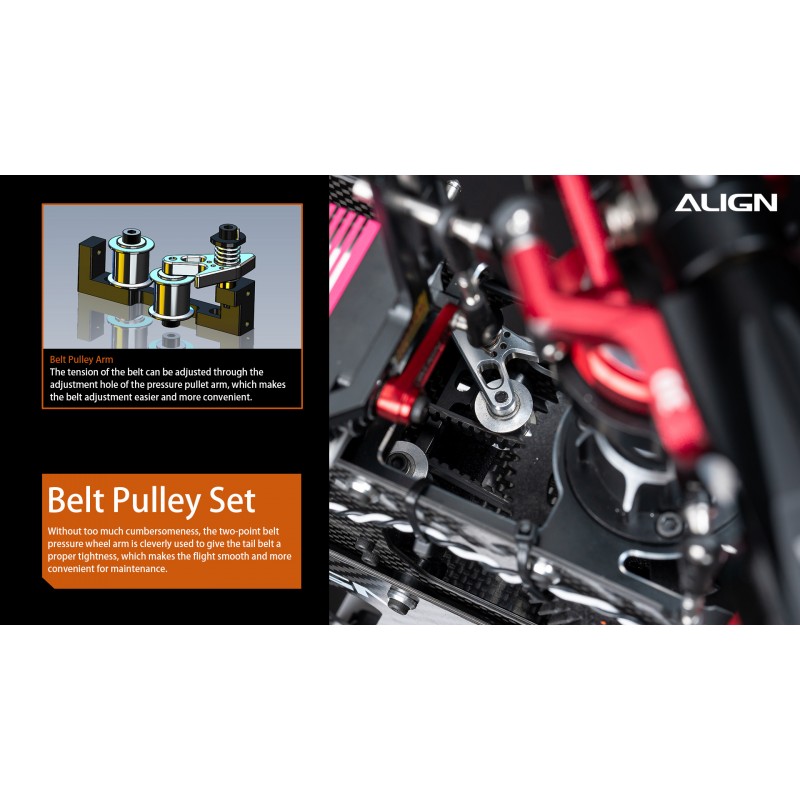

● Belt pulley: 44T
● Front drive main shaft: 15T

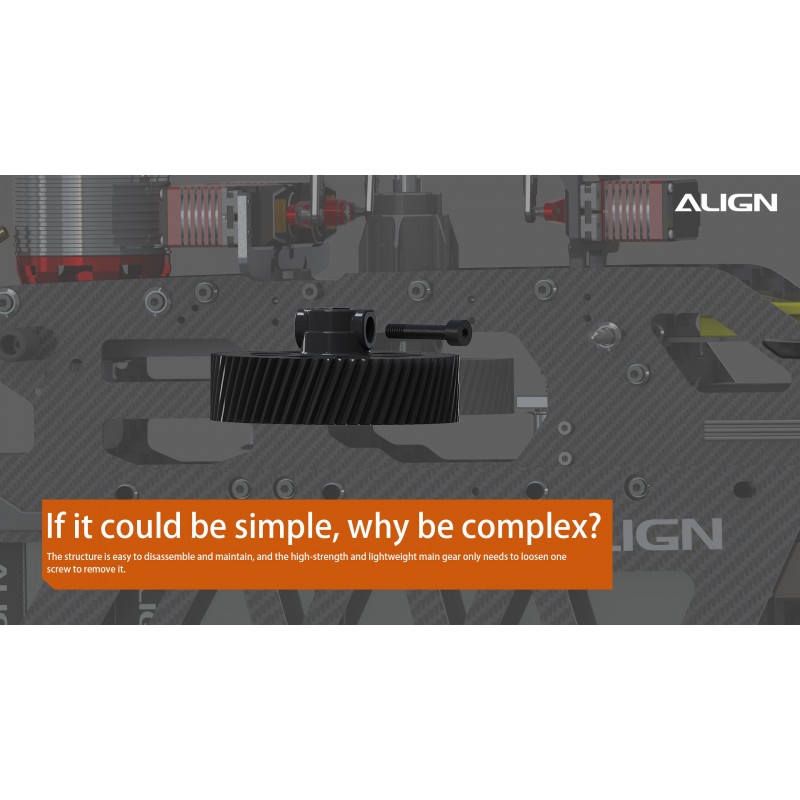

● Main drive gear: 62T
● Autorotation tail drive gear: 28T
● Tail drive gear: 23T
● Drive gear ratio: 7.89:1:5.04
● Max RPM (approx.): 2300 RPM
● Weight (w/o battery): approx. 2.8 kg

In the box:

● TB60 kit set x1
● 600 carbon fiber blades set  x1
● 95 carbon fiber tail blades set x1
● Lube pack x1

Radio transmitter and electronic equipment required for assembly:

● Transmitter (6-channel or more, helicopter system)
● Receiver (6-channel or more) or remote receiver

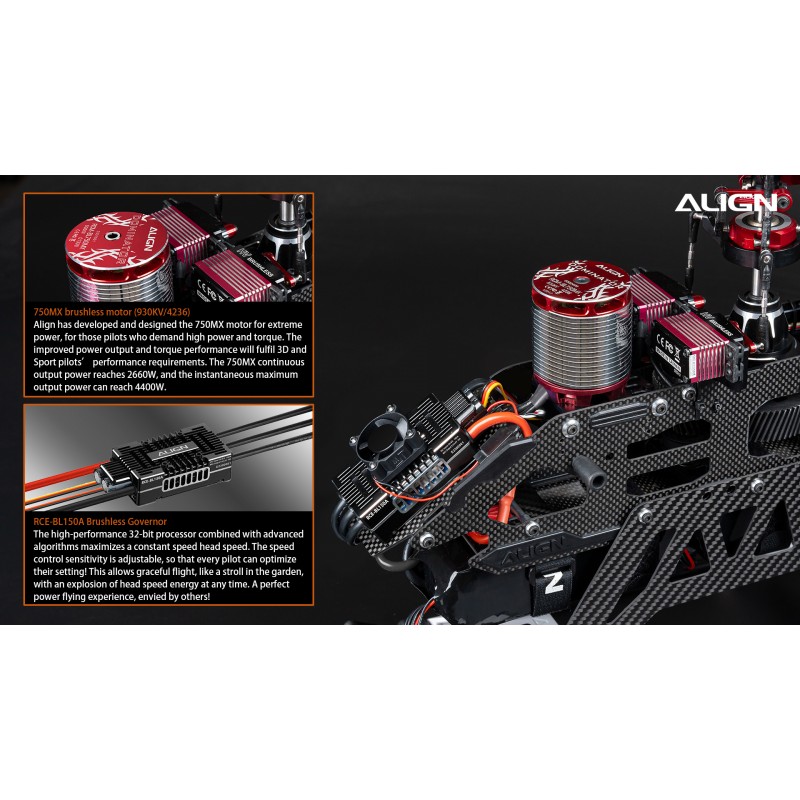

● Brushless motor x1

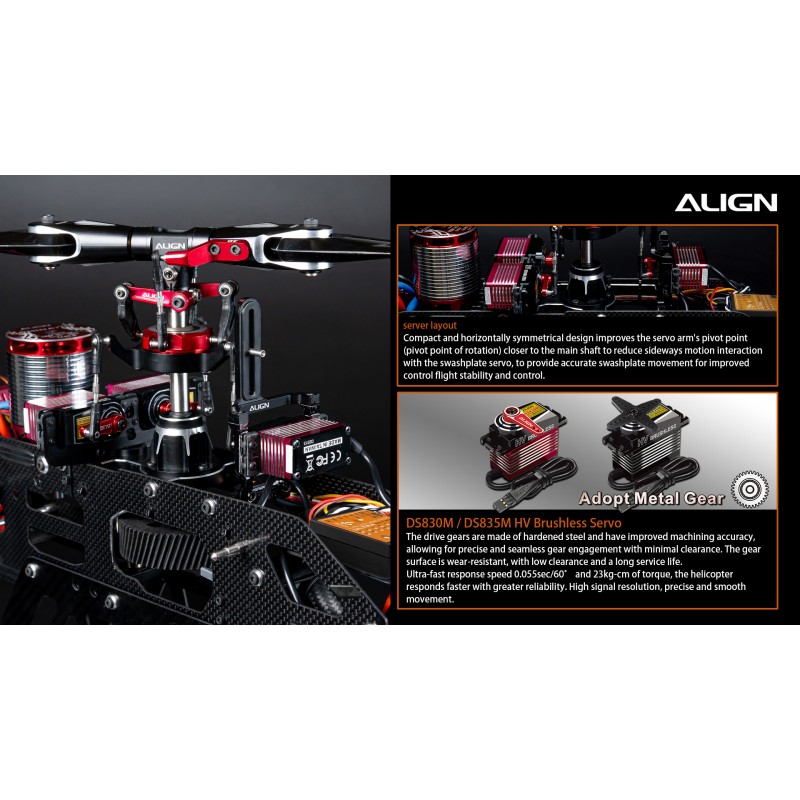

● Cyclic servo (standart size) x3
● Rudder servo (standart size) x1
● Brushless ESC (150A) x1
● Flybarless system x1
● Intelligent balance charger

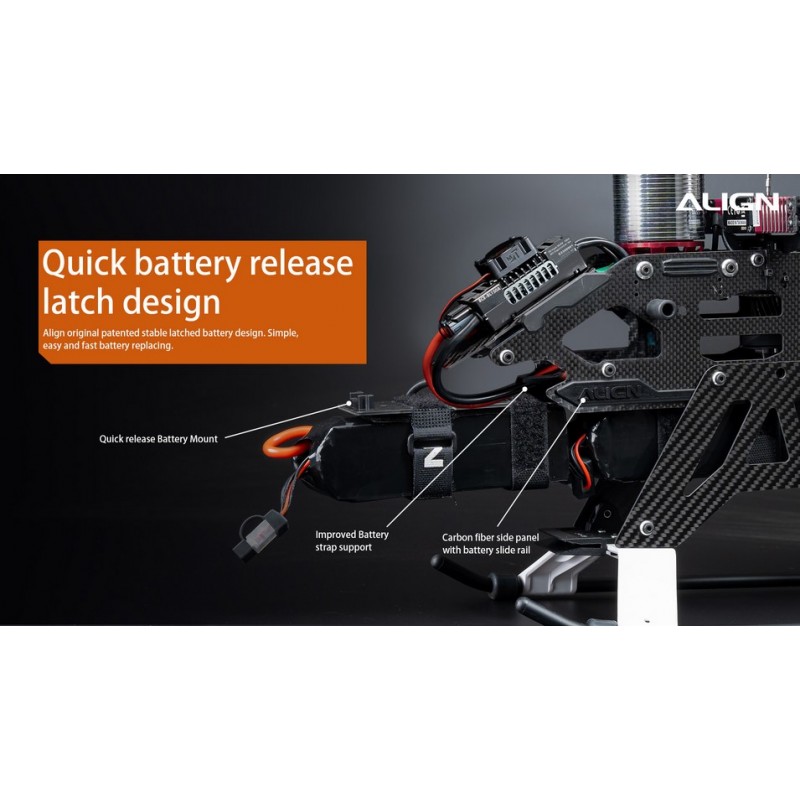

● 6S Li-Po 2600 ~ 4600mAh x1 (3300mAh suggestion)
● Digital pitch gauge
● Multi-function tester
