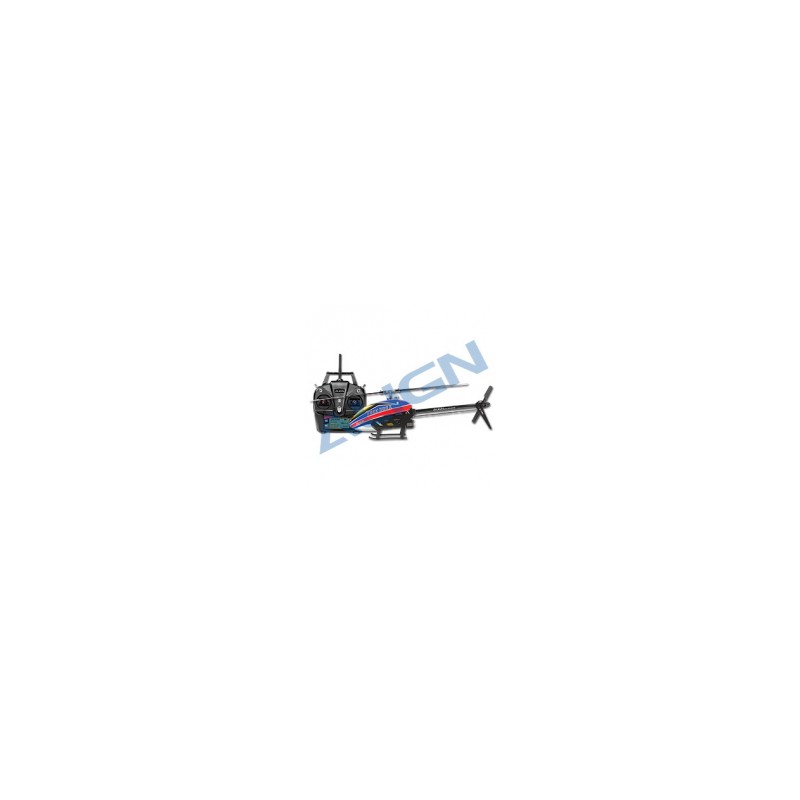

Align T-Rex 300X Dominator Super Combo - RTF RC helicopter (RH30E01X)

Align T-Rex 300X Dominator RC helicopter: a top quality indoor or outdoor mini radio-controlled helicopter, with carbon fiber chassis and high-level electronic equipment.

You already know how to fly an rc helicopter and small helicopters draw your attention: discover the T-Rex 300X from the manufacturer Align !
It is perfect for the model builder already introduced to the rc helicopter hobbies, and wanting to discover another side of model aircraft making with a super compact size rc helicopter. This lively and responsive machine is very pleasant to fly but requires basic piloting skill. Like the larger models, it has a swashplate. So everything is allowed: hovering, aerobatics and 3D!
Despite its tiny size, this little T-Rex 300X certainly has the genes of other helicopters from the famous Taiwanese brand, and its incredible performance is likely to surprise many expert pilots!

Have you ever practiced RC flight simulator, or have you ever flown electric helicopters of class 450 or above, are you a pro with larger collective pitch rc helicopters ? then you should have fun driving this amazing little T-Rex 300X.

The T-Rex 300X remote control helicopter, like its big brother the 450L, is equipped with an electric motor managed by a governor controller (ESC).
Volts are an advantageous replacement for fuel: less noisy and cleaner than the Nitro heat engine, the brushless motor is now unanimous in rc model making for its high performance (power, torque) and the simplicity of its implementation.
A battery charger and a few Lipo batteries will allow you to link several flights and your electric rc helis will always remain clean!
This reduced model is coming here in a "ready-to-fly" version (or so-called RTF) with radio control (transmitter - receiver) and all that is necessary for your first flights (battery, charger, etc.) .

The stability of the anti-torque (rear propeller) of the T-Rex 500 radio-controlled helicopter is ensured by a gyroscope or by a flybarless system performing the necessary mixes. This version comes with the flybarless Align MiniGRS stabilization system.

The servomotor is an essential element of radio controlled vehicles. T-Rex 300X kits come with premium Align DS450 / 455 servos.

Are you addicted to radio-controlled model making and you need a reliable, efficient, nervous and rigorous mini helicopter, with Helicopter parts available and affordable ? The T-Rex 300X is waiting for you at helistore.fr model shop !

Features:

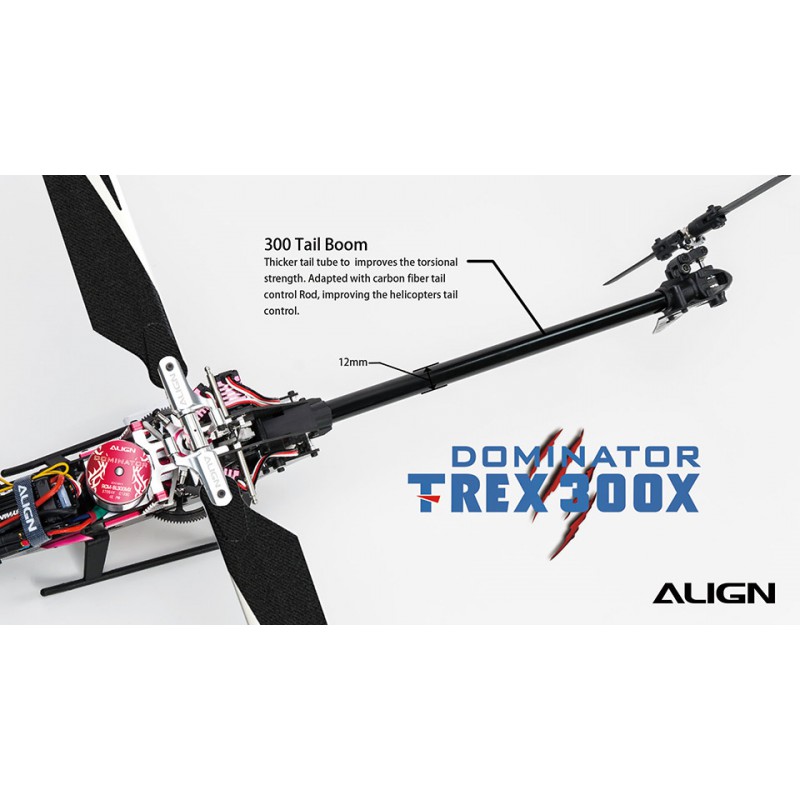

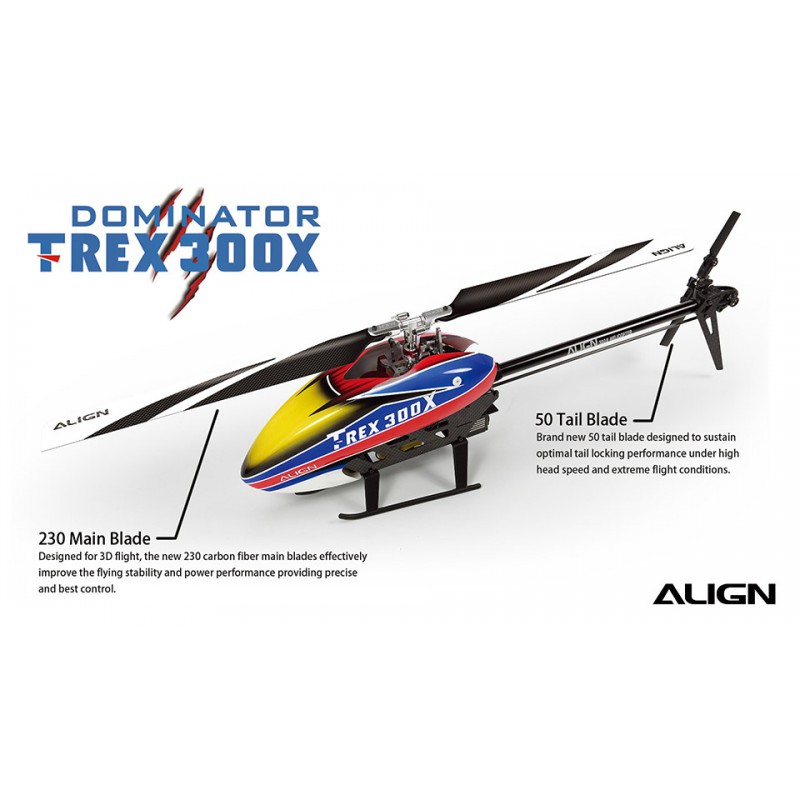

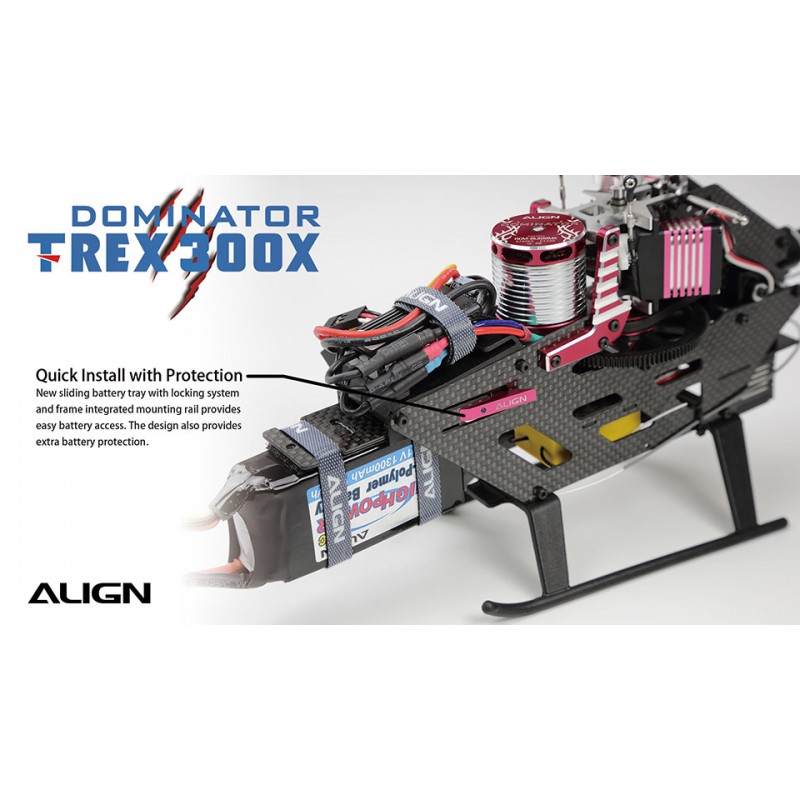

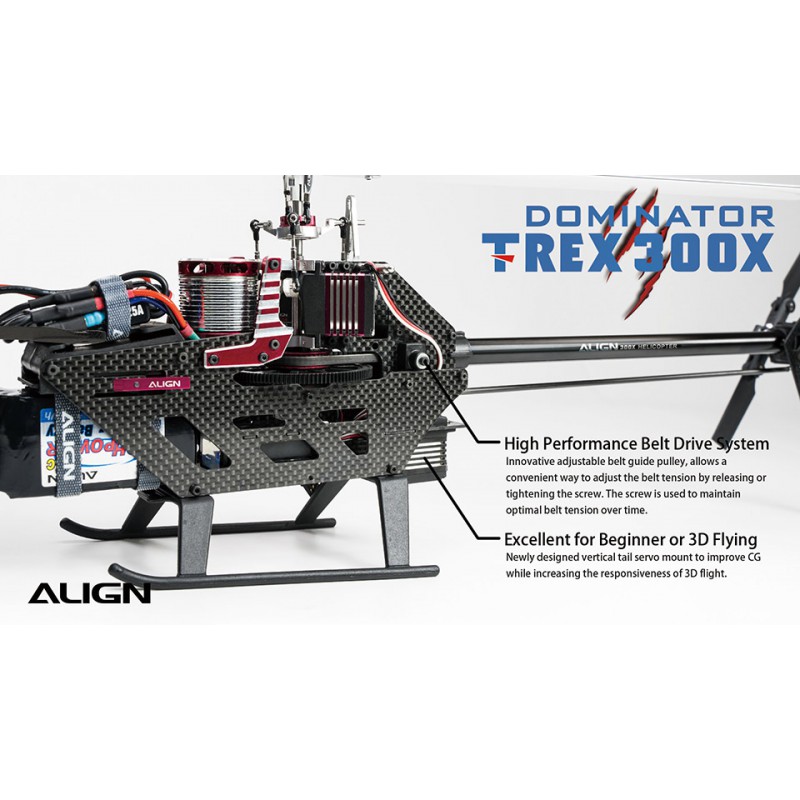

Align newly designed T-REX 300X is small but all-in-perfect. It adopts DFC rotor head unit, low CG and low wind resistance providing direct flight responses. The carbon fiber main frame is made of composite material and with reinforcement plate and brace assembly effectively enhancing structural intensity and torsion resistance during aerobatic. Narrow body design makes mechanical structure much stronger. The battery slider and top-mounted motor design with anodized bright red color brings pretty texture on this model. Thicken aluminum alloy tail boom for the best torsion resistance and increase the tail support rod lifetime. The progressive lightweight landing skid making this model the leader in this class. Plus the fiberglass painted canopy features lightweight and low in wind resistance.

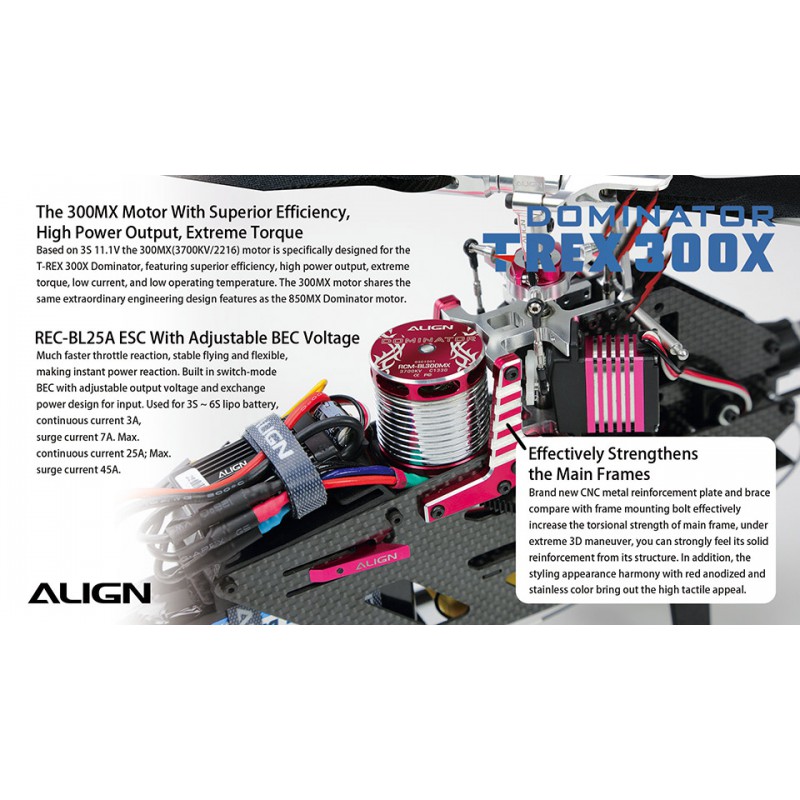

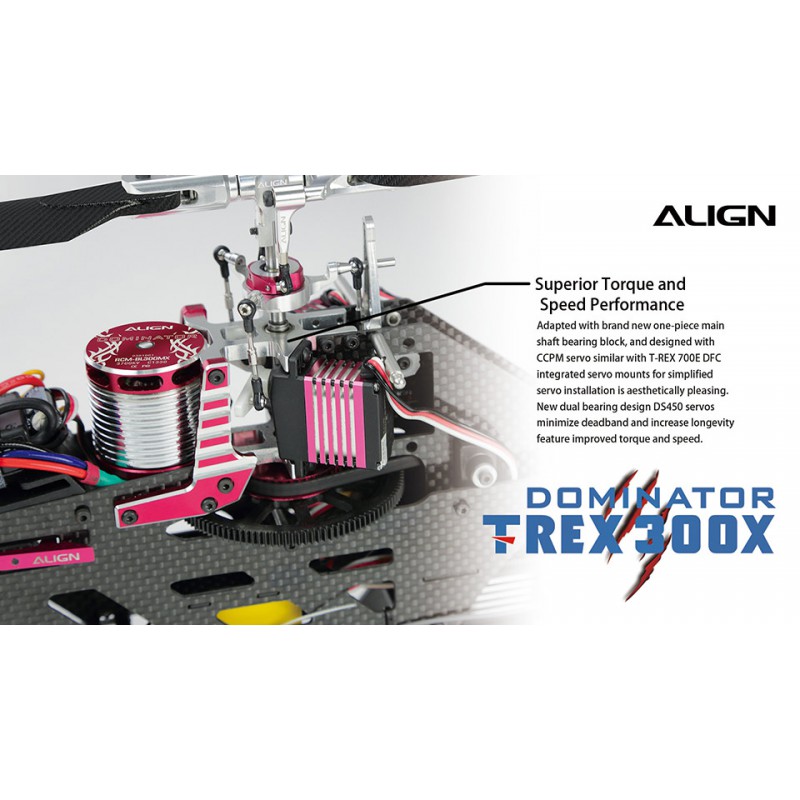

The standard high torque and high efficiency 300MX 3700KV/2216 brushless motor not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation. Allow to provide consistent power output and keep stable RPM in non-stop 3D flying presenting perfect performance. Also it pairs with digital HV DS450 and DS455 servos, supporting 8.4V output, fast response and high torque. The new 25A brushless speed governor support 5~8.4V adjustable BEC voltage.

T-Rex 300X equipped with MiniGRS flybarless system special designed for ALIGN small helicopters (Under 500 series). It's light and simple with easy and quick settings, suitable for most pilots and beginners.

Specifications:

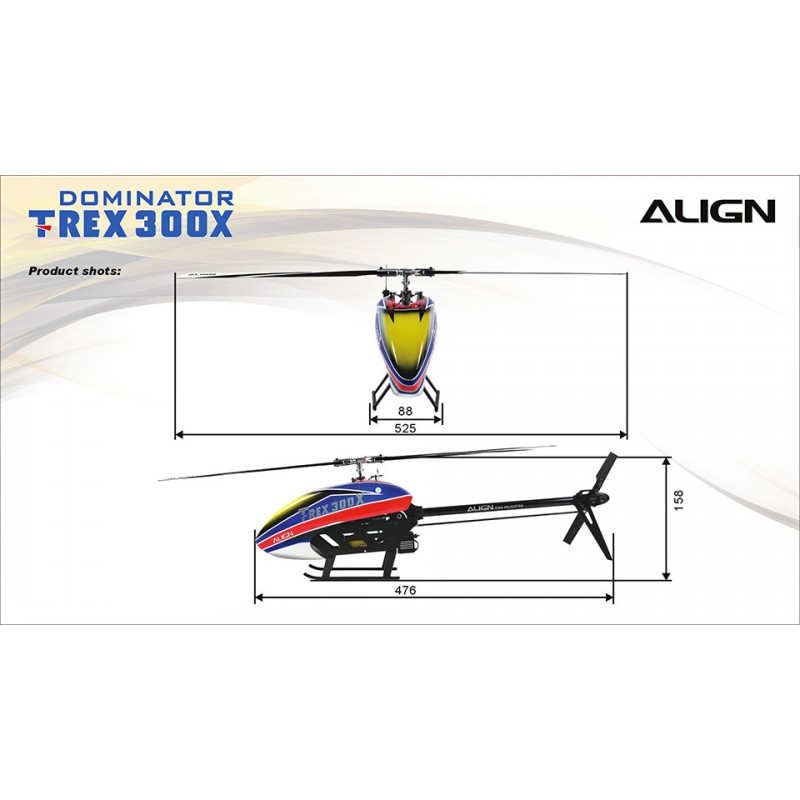

T-Rex 300X:
● Length: 476mm
● Height: 158mm
● Width: 88mm
● Main Blade Length: 230mm
● Main Rotor Diameter: 525mm

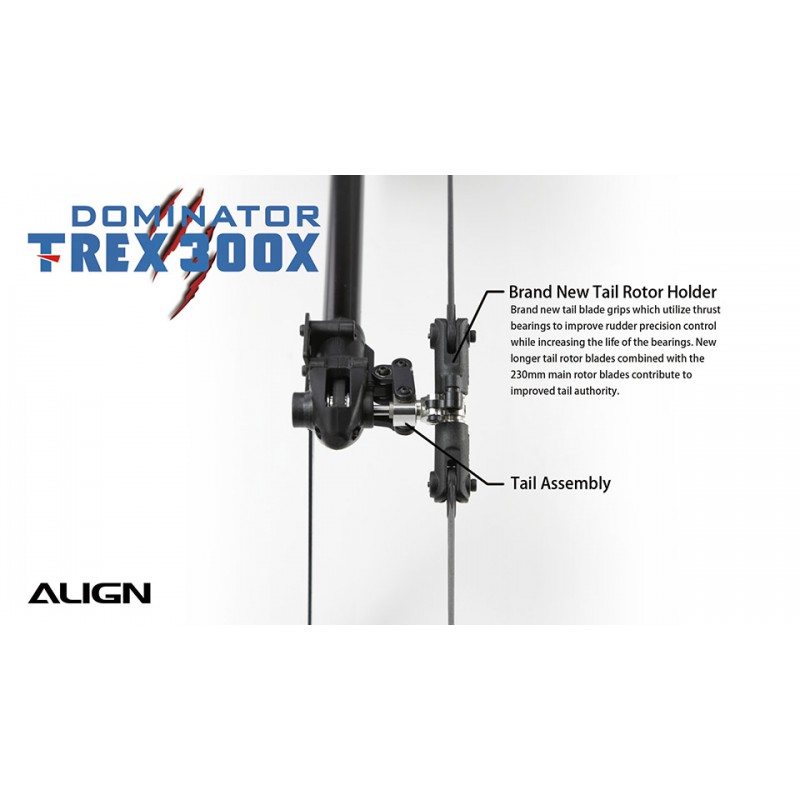

● Tail Rotor Diameter: 143mm
● Motor Pinion Gear: 14T
● Main Drive Gear: 115T
● Main Drive Pulley: 40T
● Tail Drive Gear: 13T
● Drive Gear Ratio: 8.21:1:3.08
● Weight(w/o battery): 418g

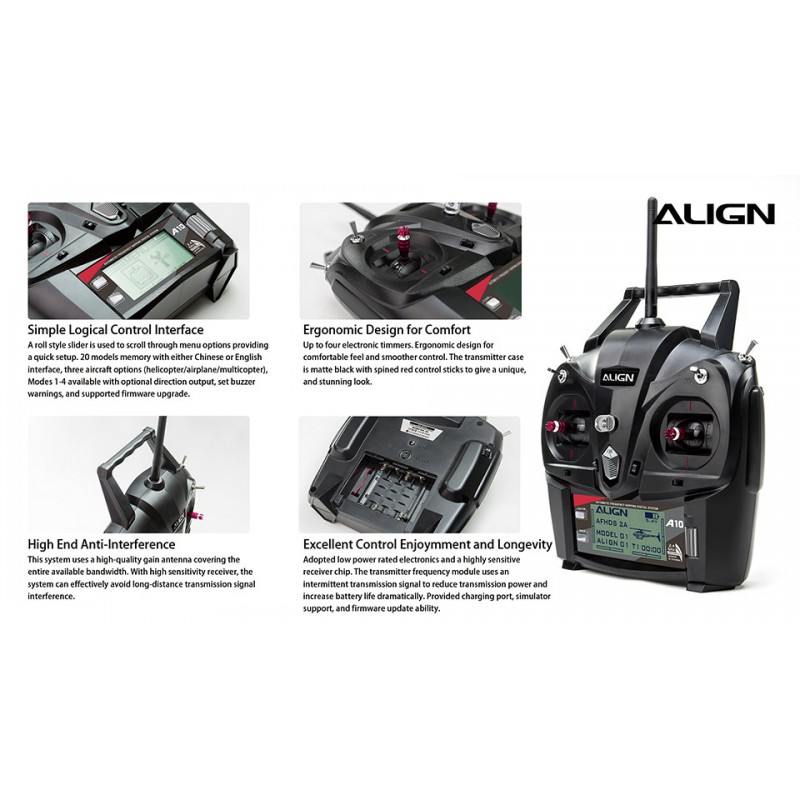

A10 Radio Control System:
● Channel: 10-Channel
● Available Models: helicopter/airplane/multicopter
● Frequency range: 2.408 ~ 2.475 GHz
● Power: no higher than 20dBm(For EU)
● System Mode: 2.4G system AFHDS 2A
● Suitable Voltage Range: 4.0 ~ 6.0V DC
● Receiving Distance: the open ground no interference < 1000M
● Low Voltate Warning: Lower than 4.2V
● Weight: 485g (excluded battery)
● Size: 275x187x102mm

Mini A.Bus Receiver:
● Channel: 14 channels
● RX Sensitivity: -105dBm
● RF Range: 2.4055 ~ 2.475 GHz
● System Mode: 2.4G system AFHDS 2A
● Power: 4.0 ~ 8.4V DC
● Transmit Distance: In open space without interference <150

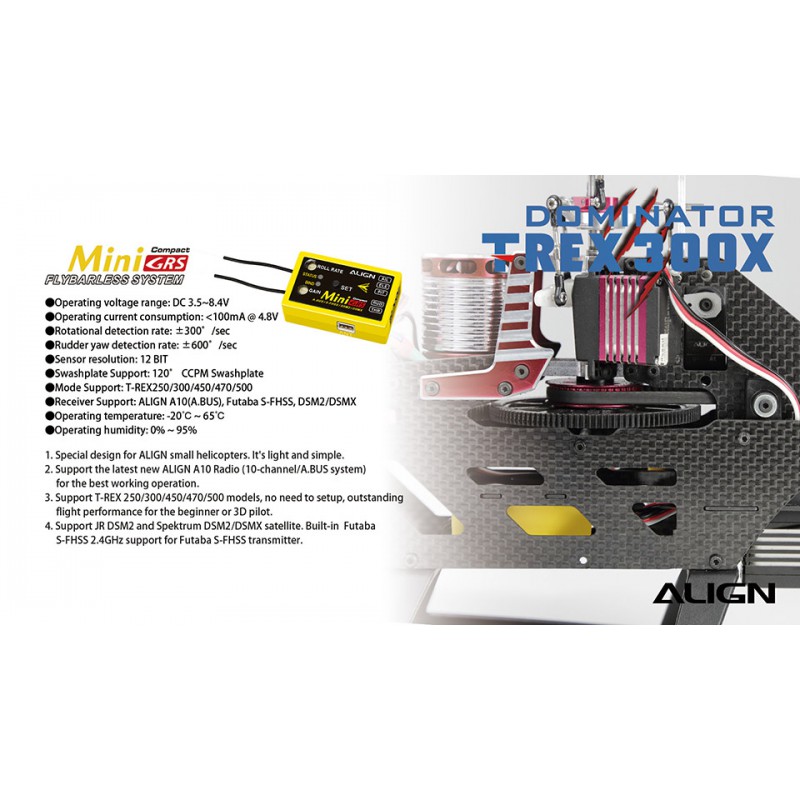

MiniGRS Flybarless System:
● Operating voltage range: DC 3.5~8.4V
● Operating current consumption: <100mA @ 4.8V
● Rotational detection rate: ±300°/sec
● Rudder yaw detection rate: ±600°/sec
● Sensor resolution: 12 BIT
● Swashplate Support: 120° CCPM Swashplate
● Mode Support: T-REX250, T-REX300, T-REX450, T-REX470, T-REX500
● Receiver Support: ALIGN A10(A.BUS), Futaba S-FHSS, DSM2/DSMX
● Operating temperature: -20℃ ~ 65℃
● Operating humidity: 0% ~ 95%
● Comply with RoHS
● Size: 37.6x22.4x13mm

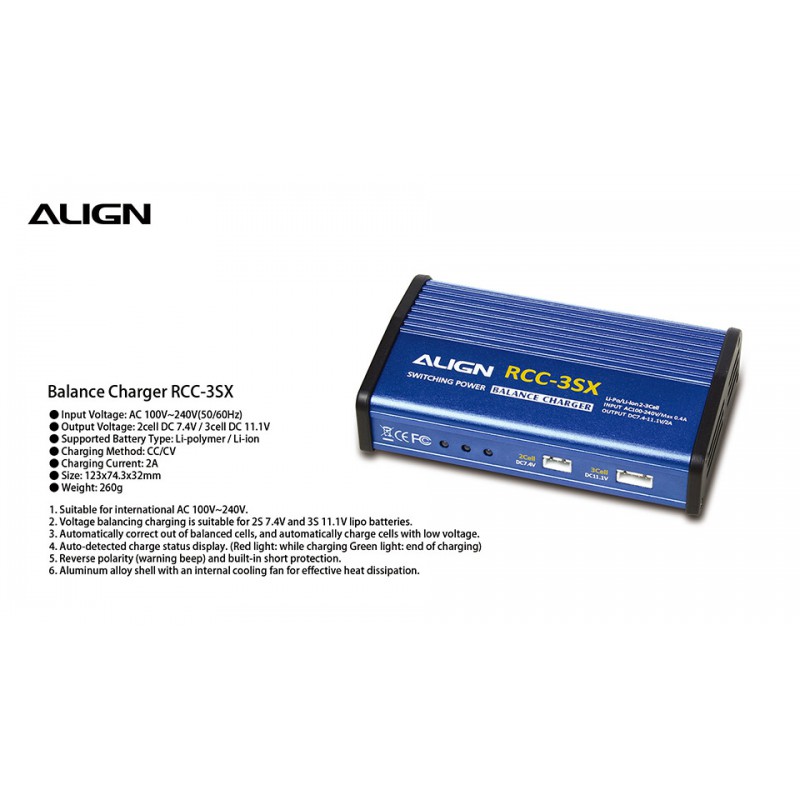

Battery Charger / Balancer RCC 3SX:
● Input Voltage: AC 100V~240V(50/60Hz)
● Output Voltage: 2cell DC 7.4V / 3cell DC 11.1V
● Supported Battery Type: Li-polymer / Li-ion
● Charging Method: CC/CV
● Charging Current: 2A
● Size: 123x74.3x32mm
● Weight: 260g

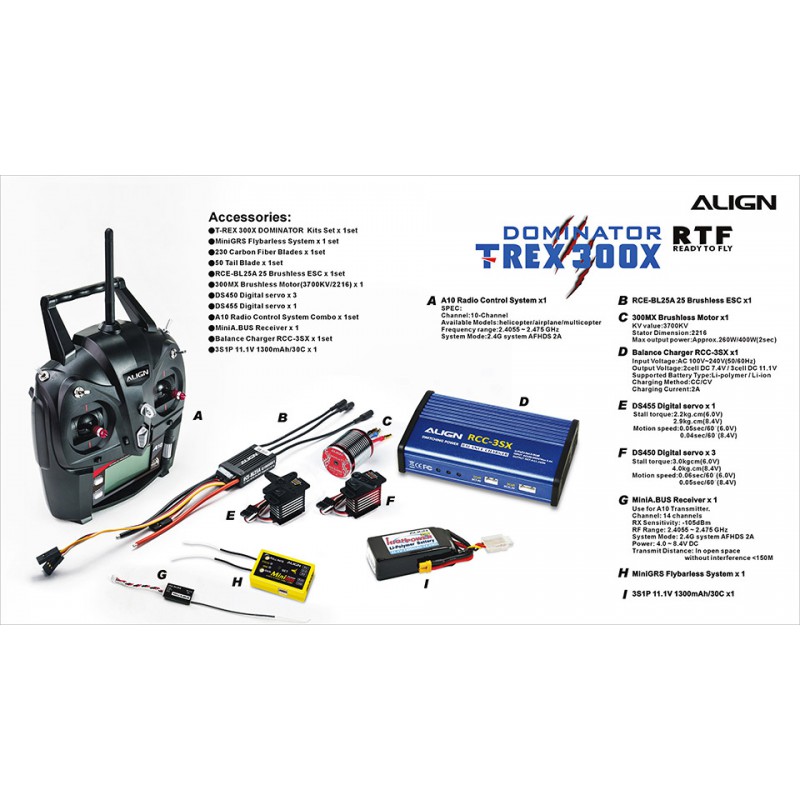

In your T-Rex 300X RTF Box:

● T-Rex 300X DOMINATOR Kits Set x1 set
● MiniGRS Flybarless System x1 set
● 230 Carbon Fiber Blades x1 set
● 50 Tail Blade x1 set
● RCE-BL25A 25 Brushless ESC x1 set
● 300MX Brushless Motor(3700KV/2216) x1
● DS450 Digital servo x3
● DS455 Digital servo x1
● A10 Radio Control System Combo x1 set
● MiniA.BUS Receiver x1
● Balance Charger RCC-3SX x1 set
● 3S1P 11.1V 1300mAh/30C Lipo battery x1
