RH45E32X
New product
The Align T-REX 450 helicopter has been the ideal choice for entry level R/C helicopters.
An almost ready to fly version for beginners, solving problems of assembly and adjustment,
Align A10 transmitter and MiniGRS flybarless system included.
Just easy to experience the fun fly enjoyment.
Battery and charger also included.
This product is no longer in stock
Warning: Last items in stock!
Availability date:

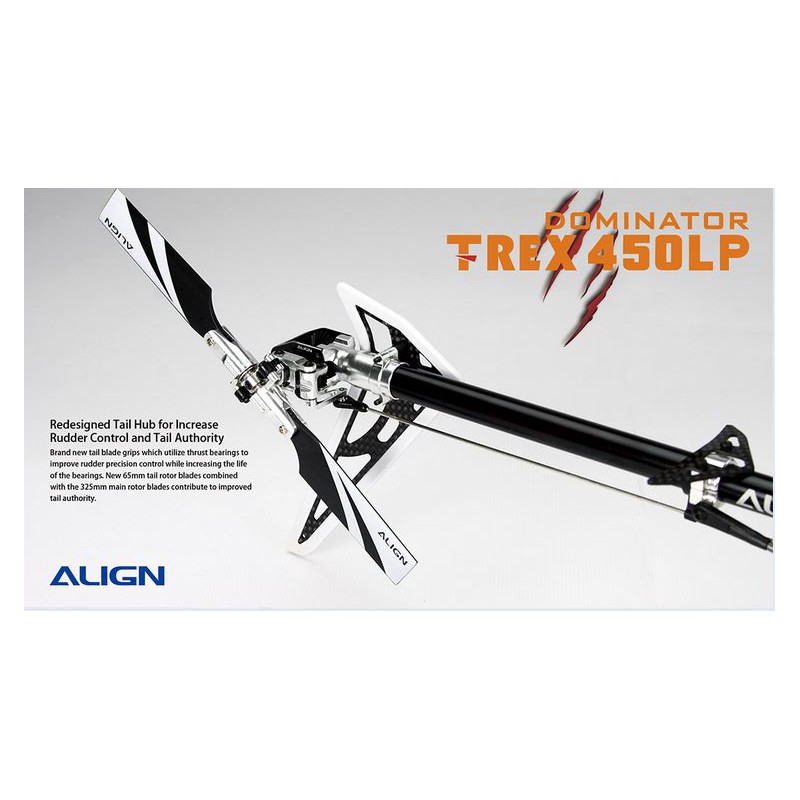

The Align T-REX 450 helicopter has been the ideal choice for entry level R/C helicopters. To cater to the beginner enthusiasts and solve the problem of assembly and adjustment, Align introduced T-REX 450LP ARTF (Almost Ready to Fly). Completed with Align A10 transmitter and newly released MiniGRS flybarless system, just easy to experience the fun fly enjoyment.
The helicopter utilizes DFC rotor, paired with MiniGRS flybarless system optimized for T-REX 450LP flight characteristics. Without any adjustment or tuning, this combo will be provided optimal stability suitable for pilot of all levels.
Equipped with newly digital high voltage servo DS450 and DS455, supports 8.4 high voltage to provide optimal speed and torque performance. Paired with newly RCE-BL45P ESC, supports adjustable 5~8.4V BEC function to highly improve flight performance.
ALIGN A10 is AFHDS (Automatic Frequency Hopping Digital System) 2.4GHz transmitter provided with 10 channels. The stick and holder are designed based on ergonomic bringing much smoother control. Completed function with the mode of helicopter / aircraft / multicopter. Logical and simple control interface, and easy to set up.
With the addition of the brand new A10 transmitter and MiniGRS, the T-REX 450LP ARTF pushes past the performance limitation of flybar helicopter, improving both stability and 3D performance, while maintaining a down to earth price level.
T-REX 450LP helicopter specifications:
● Length: 705mm
● Height: 205mm
● Width: 110mm
● Main Blade Lenght: 325mm
● Main Rotor Diameter: 734mm
● Tail Rotor Diameter: 171mm
● Motor Drive Gear: 11T
● Main Drive Gear: 121T
● Autorotation Tail Drive Gear: 106T
● Tail Drive Gear: 26T
● Drive Gear Ratio: 11:1:4.07
● Weight (w/o battery): 730g
A10 transmitter specifications:
● Channel: 10-Channel
● Available Models: helicopter/airplane/multicopter
● Frequency range: 2.408 ~ 2.475 GHz
● Power: no higher than 20dBm(For EU)
● System Mode: 2.4G system AFHDS 2A
● Suitable Voltage Range: 4.0 ~ 6.0V DC
● Receiving Distance: the open ground no interference < 1000M
● Low Voltate Warning: Lower than 4.2V
● Weight: 487g (excluded battery)
● Size: 275x187x102mm
A6B Receiver Specifications:
● Channel: 14 channels
● RX Sensitivity: -105dBm
● RF Range: 2.408 ~ 2.475 GHz
● System Mode: 2.4G system AFHDS 2A
● Power: 4.0 ~ 8.4V
● Transmit Distance: In open space without interference <1000M
● Dimension: 46.7x25.5x13.6mm
MiniGRS Flybarless System Specifications:
● Operating voltage range: DC 3.5~8.4V
● Operating current consumption: <100mA @ 4.8V
● Rotational detection rate: ±300°/sec
● Rudder yaw detection rate: ±600°/sec
● Sensor resolution: 12 BIT
● Swashplate Support: 120° CCPM Swashplate
● Mode Support: T-REX250, T-REX450, T-REX470, T-REX500
● Receiver Support: ALIGN A10(A.BUS), Futaba S-FHSS, DSM2/DSMX
● Operating temperature: -20℃ ~ 65℃
● Operating humidity: 0% ~ 95%
● Comply with RoHS
● Size: 37.6x22.4x13mm
In the T-Rex 450LP Almost Ready To Fly Box:
● T-REX 450LP Kit x 1 set
● MiniGRS Flybarless System x 1 set
● A10 Transmitter x 1
● A6B Receiver x 1
● 325 Carbon Fiber Blades x 1 set
● RCE-BL45P ESC x 1
● 460MX Brushless motor(3200KV/2222) x 1
● DS450 Digital servo x 3
● DS455 Digital servo x 1
● 3S1P 11.1V 2200 mAh/30C Li-polymer Battery x 1

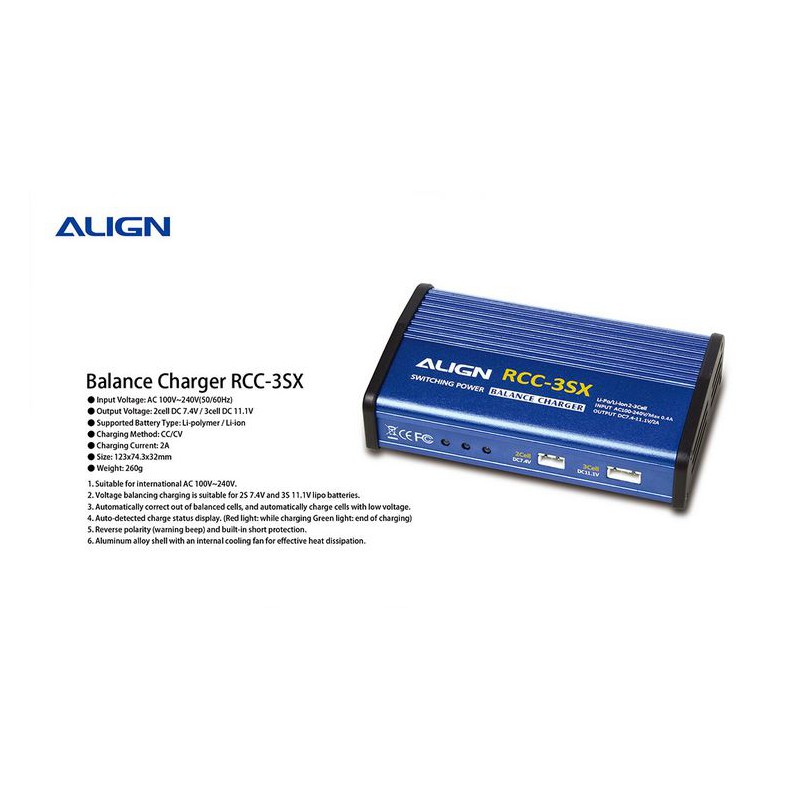

● Balance Charger RCC-3SX x 1 set
● 1.5V AA Zinc-Carbon Battery x 4
