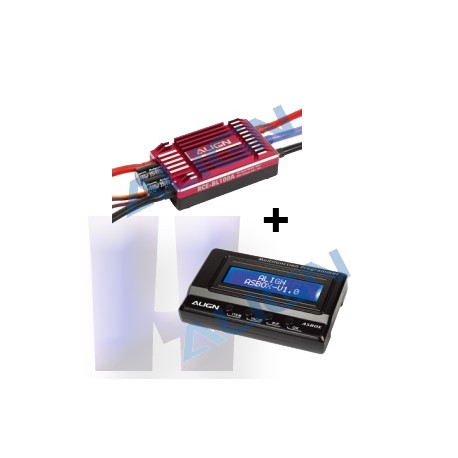

RCE-BL100A Align Brushless ESC + ASBOX

Align RCE-BL100A Brushless ESC and ASBOX Multifunction Programmer Helistore Combo.

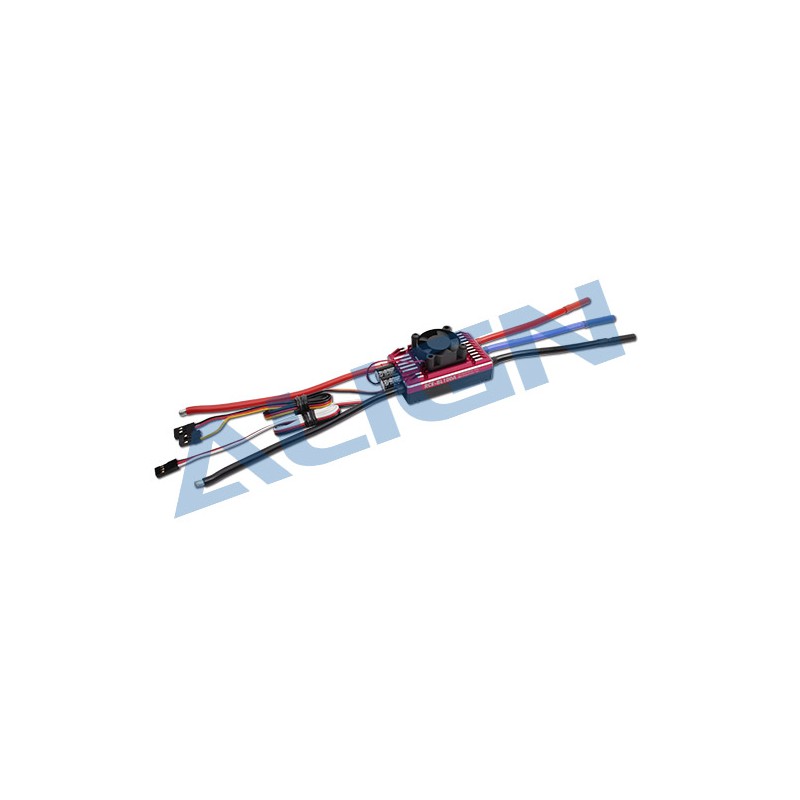

RCE-BL100A:

● 32-bit fast-speed processor.
● High quality MOSFET.
● Adjustable BEC function, supply power to receiver and servos.
● Superior governor feature.
● Support 730MX Brushless Motor, Extreme 3D Flight.
● Support USB interface to PC for firmware updating.

Specifications:

● Supporting input voltage: 3~6S Lipo / 11.1V~22.2V
● Continuous current: 100A
● Surge current: 170A
● BEC output voltage: 5~8V
● BEC output current: Continuous 10A / Surge 25A
● Size: 78.5x38.1x21mm
● Weight: 138g

ESC default setting: LiPo cells: Auto Calculation / Voltage Cutoff type: Soft Cutoff (50% output reduction) / Cutoff Voltage: 3V/Cell / BEC Voltage: 6V / Timing: 15°.

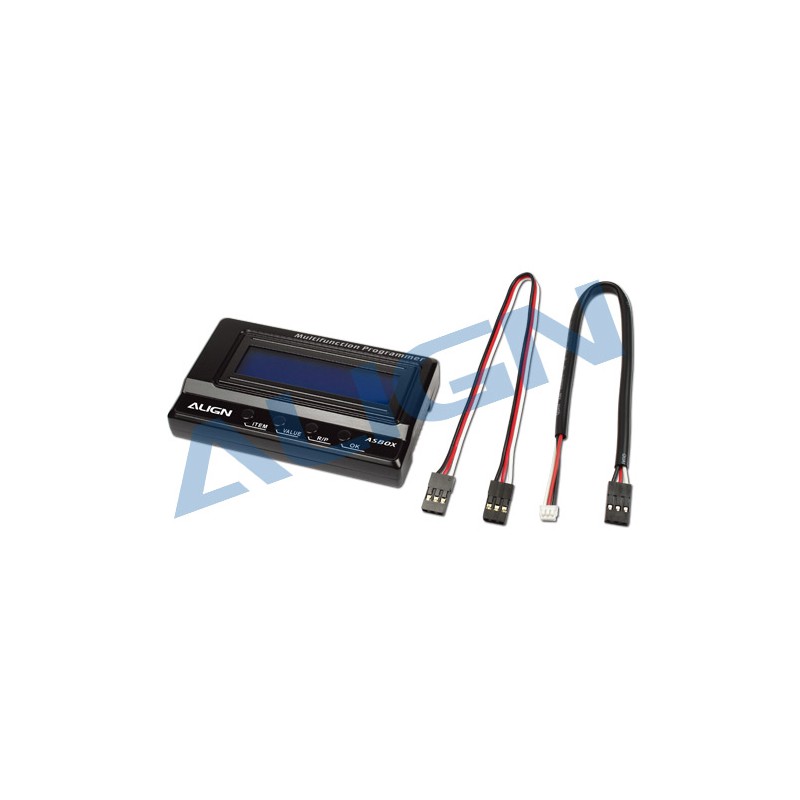

ASBOX Multifunction Programmer:

● Works as an individual equipment to set the ESC, each programmable option is displayed on LCD screen allow for easy setup.
● Works as an USB adapter to link the ESC with PC to update the ESC firmware or set the parameter by the USB Link Software on PC.
● Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack and each cell.
● Light pocket size design, easy for carry.
● Suitable for ALIGN RCE-BL100A ESC and RCE-BL130A ESC.

Specifications:

● Input Voltage: DC 4.5V ~ 12.6 Volts
● Dimension: 90mm x 51mm x 17mm
● Weight: 65g
