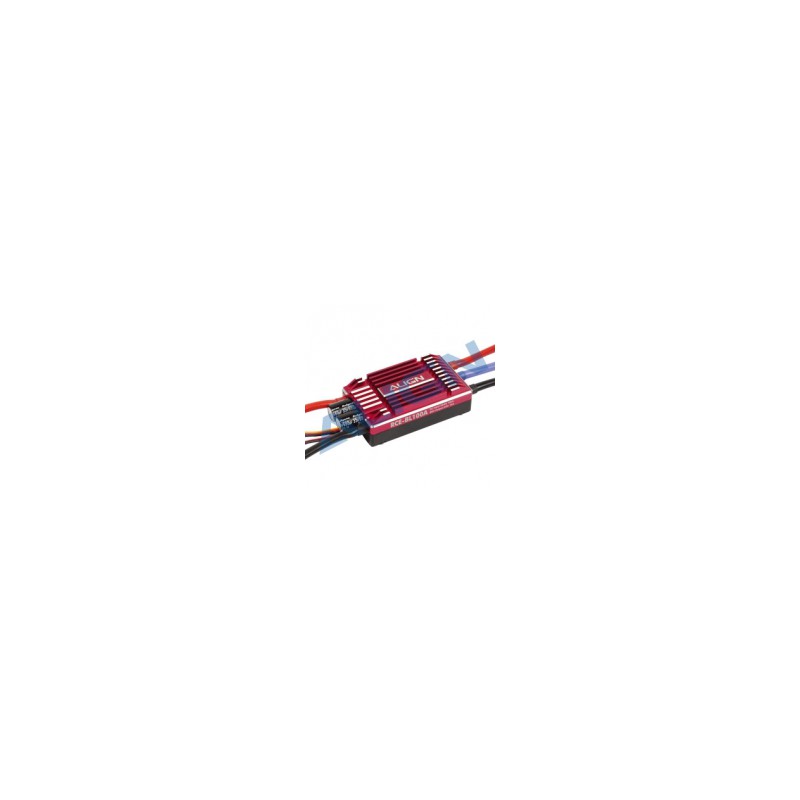

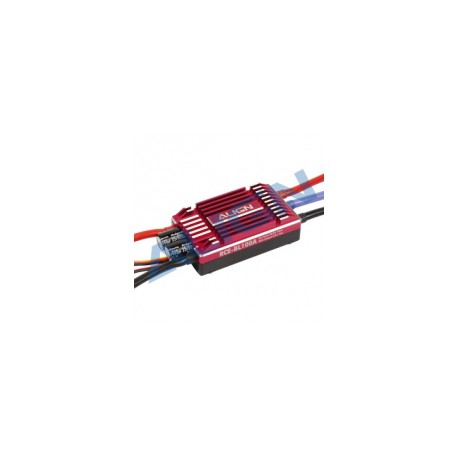

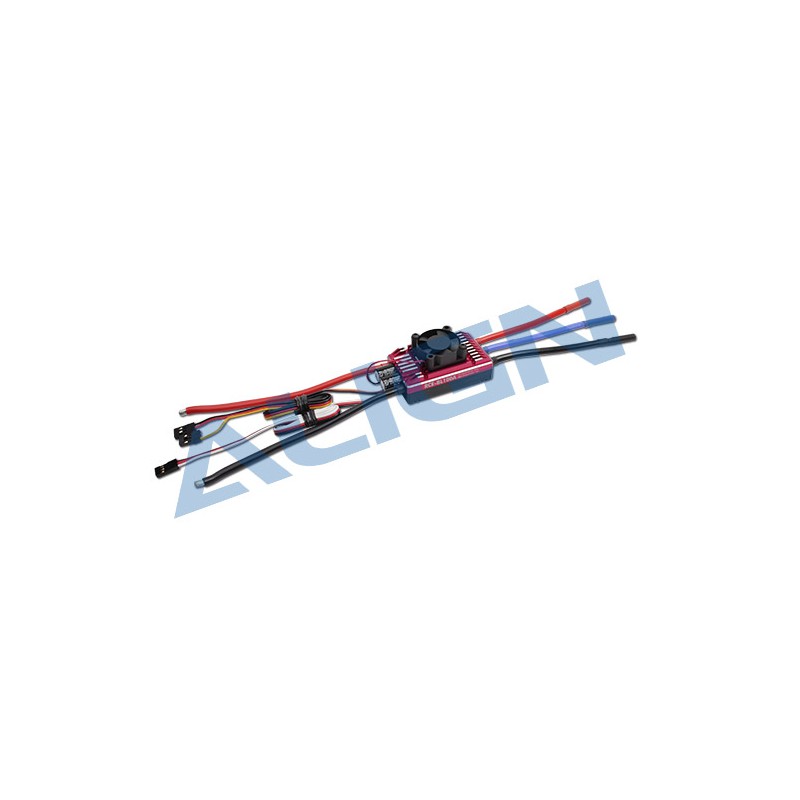

RCE-BL100A Align Brushless ESC (HES10001)

Reference: HES10001

Condition: New product

100 Amps max continuous !

Align RCE-BL100A Brushless ESC

Featuring 5 to 8V adjustable BEC and advanced governor mode.

More details

3 days delay

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

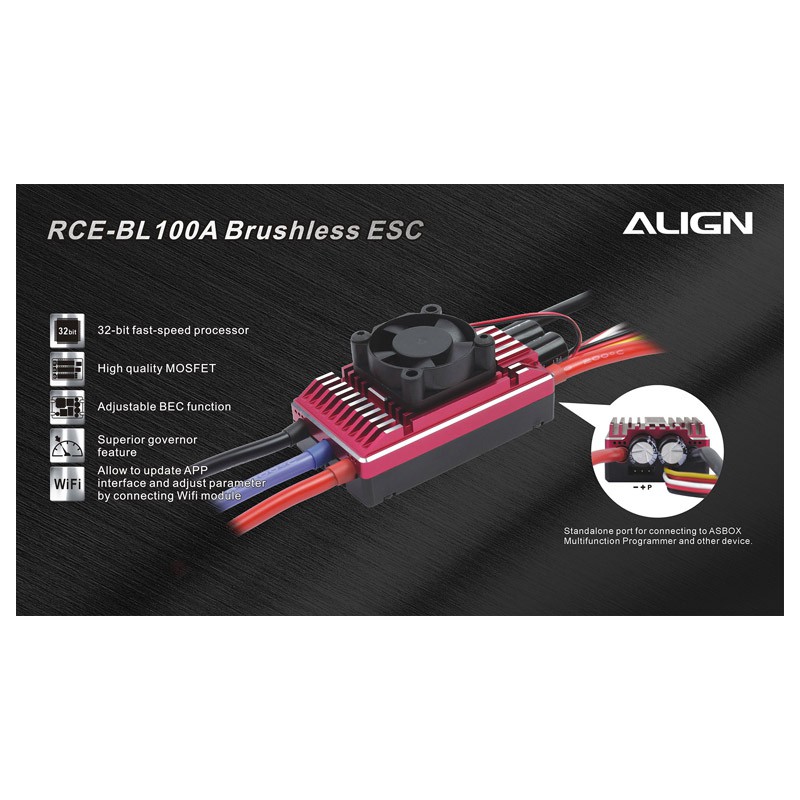

Power and softness ! Align RCE-BL100A : the new Align 100A / 10A BEC for your radio controlled helicopter.

● 32-bit fast-speed processor.
● High quality MOSFET.
● Adjustable BEC function, supply power to receiver and servos.
● Superior governor feature.
● Support 730MX Brushless Motor, Extreme 3D Flight.
● Support USB interface to PC for firmware updating.

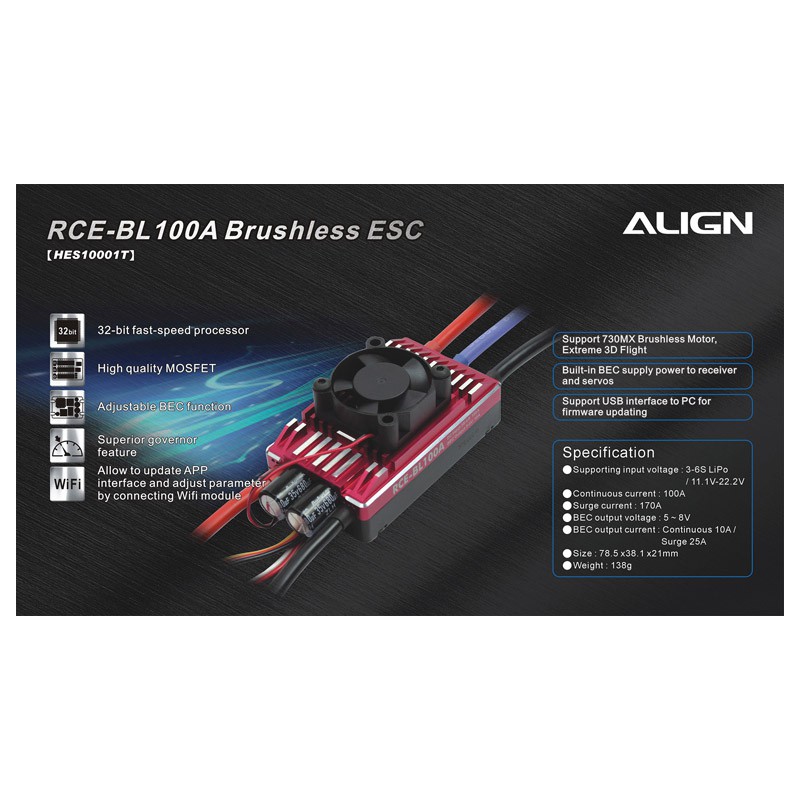

Specifications:

● Supporting input voltage: 3~6S Lipo / 11.1V~22.2 Volts
● Continuous current: 100A
● Surge current: 170A
● BEC output voltage: 5~8V
● BEC output current: Continuous 10A / Surge 25A
● Size: 78.5x38.1x21mm
● Weight: 138g

Default setting: LiPo cells: Auto Calculation / Voltage Cutoff type: Soft Cutoff (50% output reduction) / Cutoff Voltage: 3V/Cell / BEC Voltage: 6V / Timing: 15°.

RCE-BL100A ESC User Manual
