ST8 TOOLKIT RC Multi function Servo Tester

ST8 TOOLKIT RC multi function servo tester.

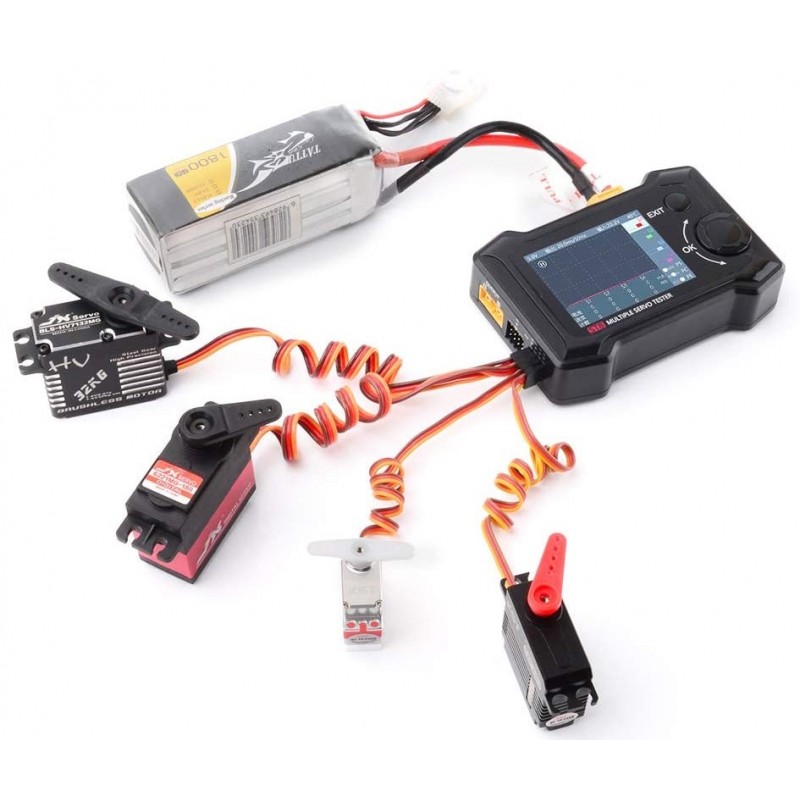

The ST8 is a servo testing device, with up to 28 V voltage output, 8-channel signal output, current measurement, curve display and other functions.
- 4 channels of programmable independent signal, 8 channels of signal output, accuracy of 1 ms.
- 4 independent current acquisition, respectively, curve display.
- Multiple measurement modes (speed, count, step, linear).
- Output PWM signals with a period of 33 to 1000 Hz.
- A variety of signal trigger sources (internal, buttons, knobs, external sources).
- Measure the response speed of the steering gear with an accuracy of 1 millisecond.
- The external input signal supports PWM/ PPM/SBUS with an accuracy of 1 ms.
- Drive the servo with a maximum load of 100W.
- Multi-language system, you can upgrade the language you need.
- The device is simulated as a USB flash drive, and the upgrade file is copied to implement product firmware upgrade.

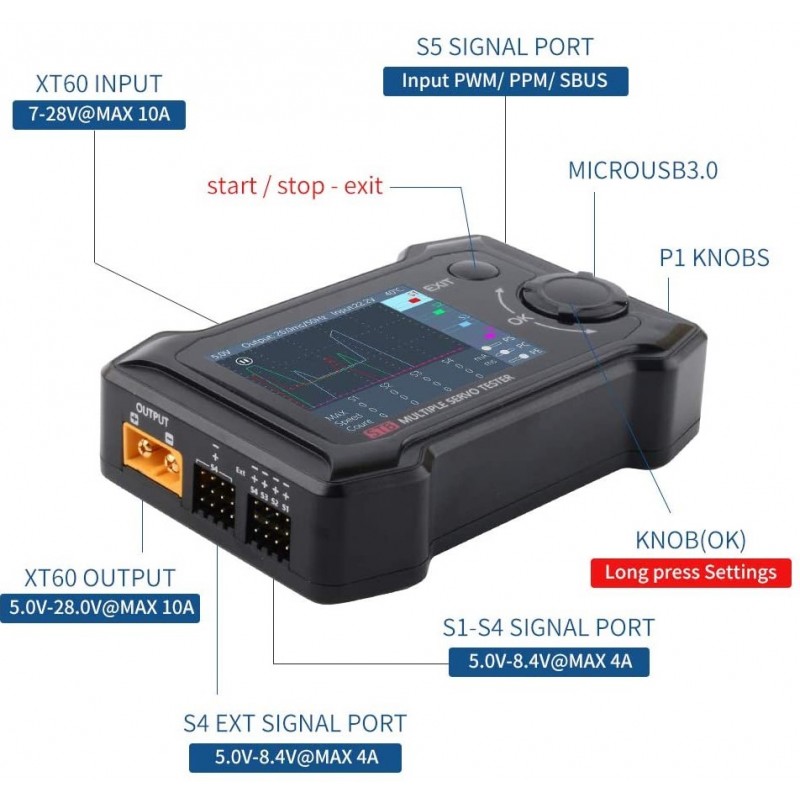

Specifications:

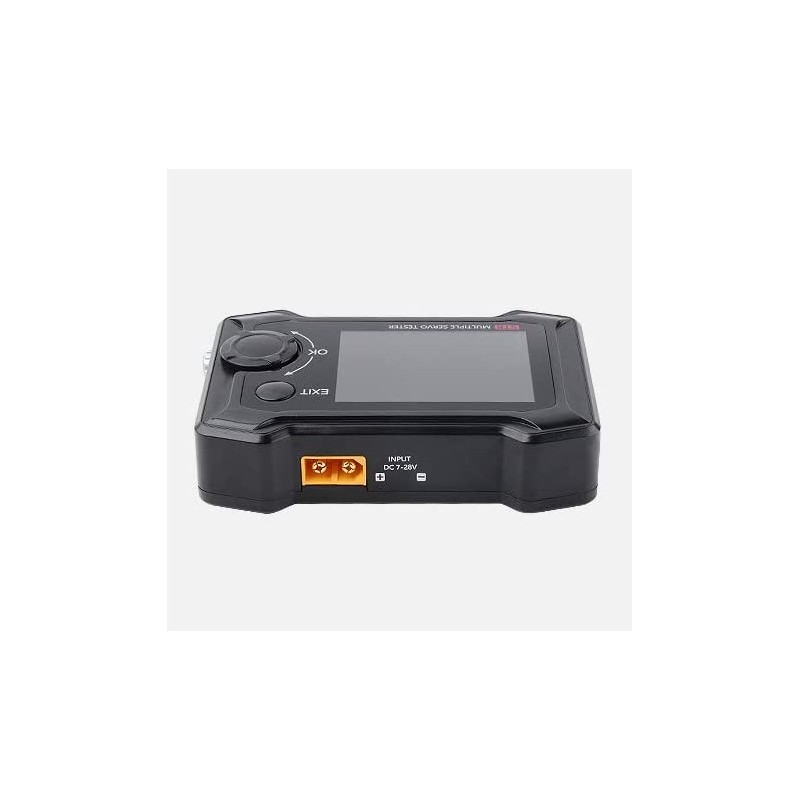

Input voltage: 7-28 Volts (Max 10A)

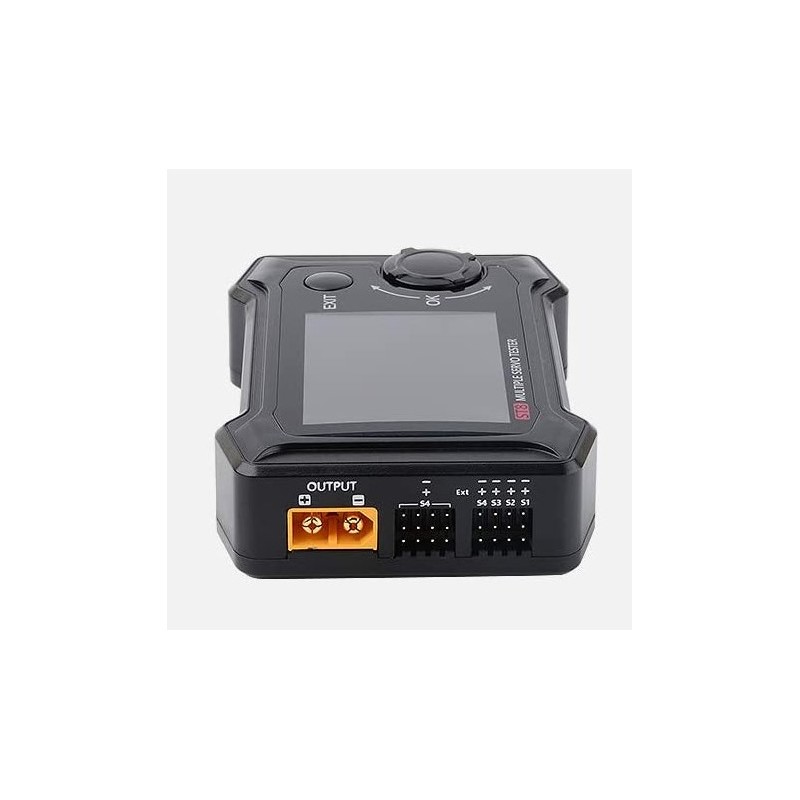

Main output port: 5.0V-28.0 (Max 10A)
Signal port output voltage: 5.0V-8.4V@MAX 4A/S1-S4 / 5.0V-8.4V@MAX 4A/S4 Ext.
Output signal: 100us-2900us@33-1000Hz @S1-S4 / PWM 500us-2500us@S5 / PPM 8CH@S5 SBUS 16CH@S5

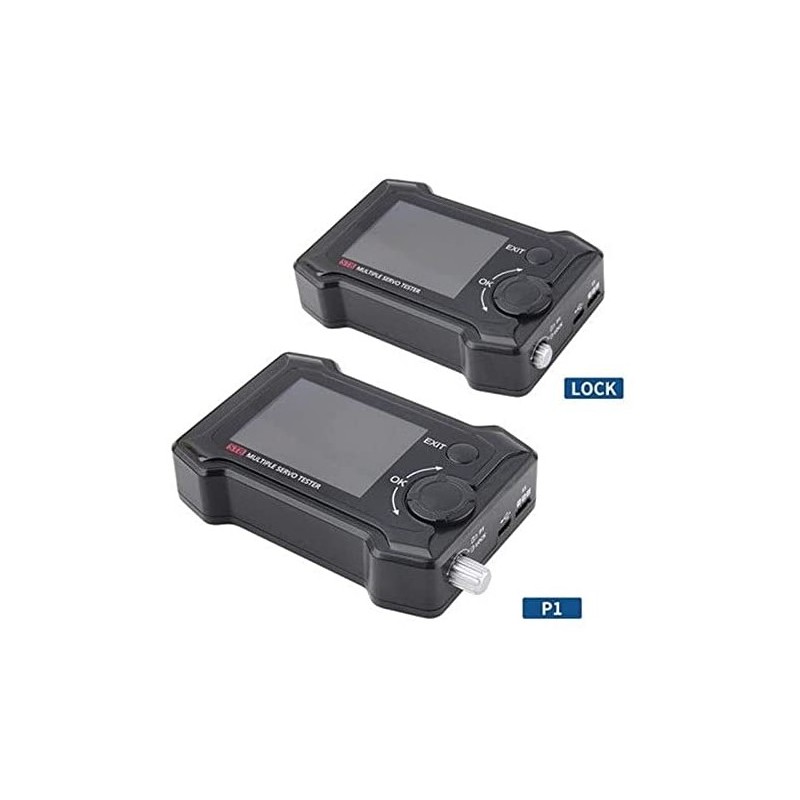

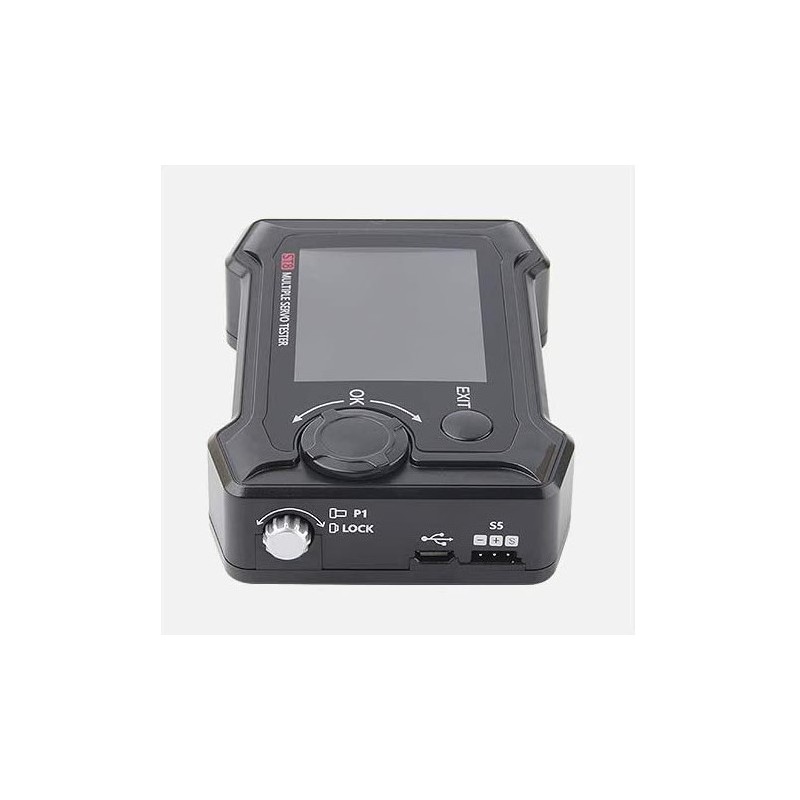

P1 rotation range: 1000us-2000us@P1
Micro USB: upgrade USB3.0

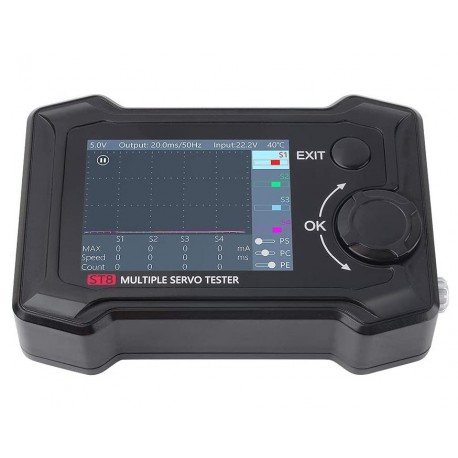

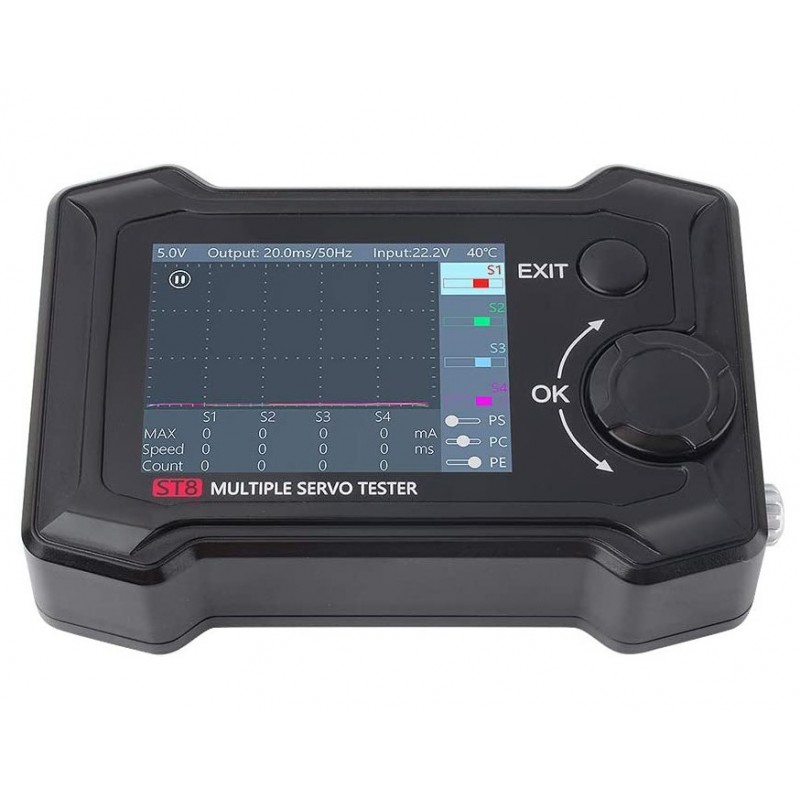

Diisplay: 2.4 inch TFT RGB 320*240 resolution
Dimension: 99x68x26 mm
Weight: 120g
