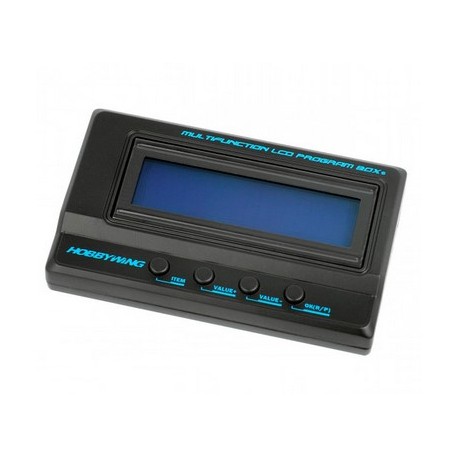

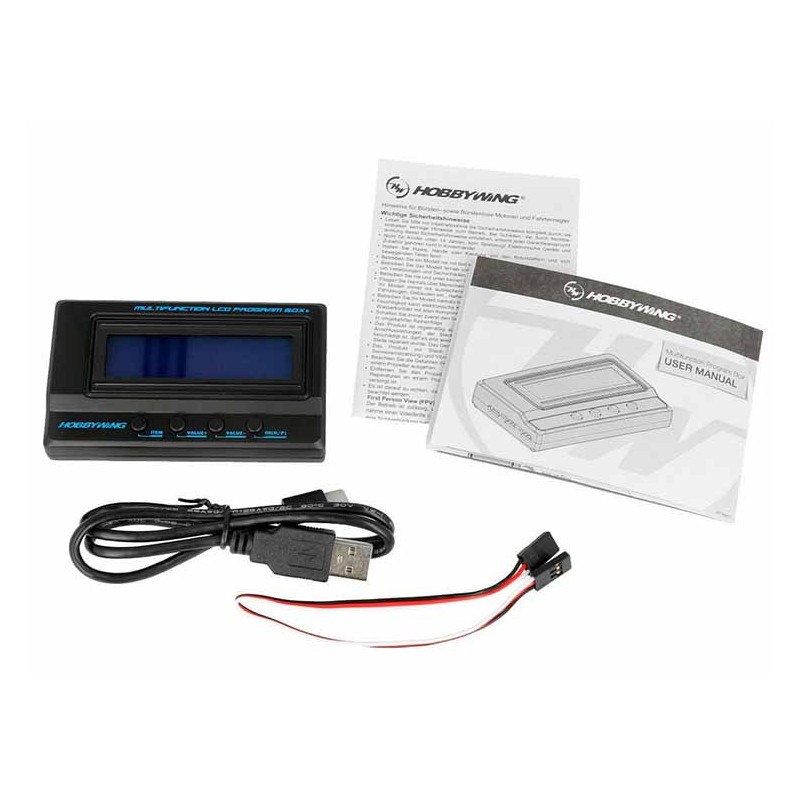

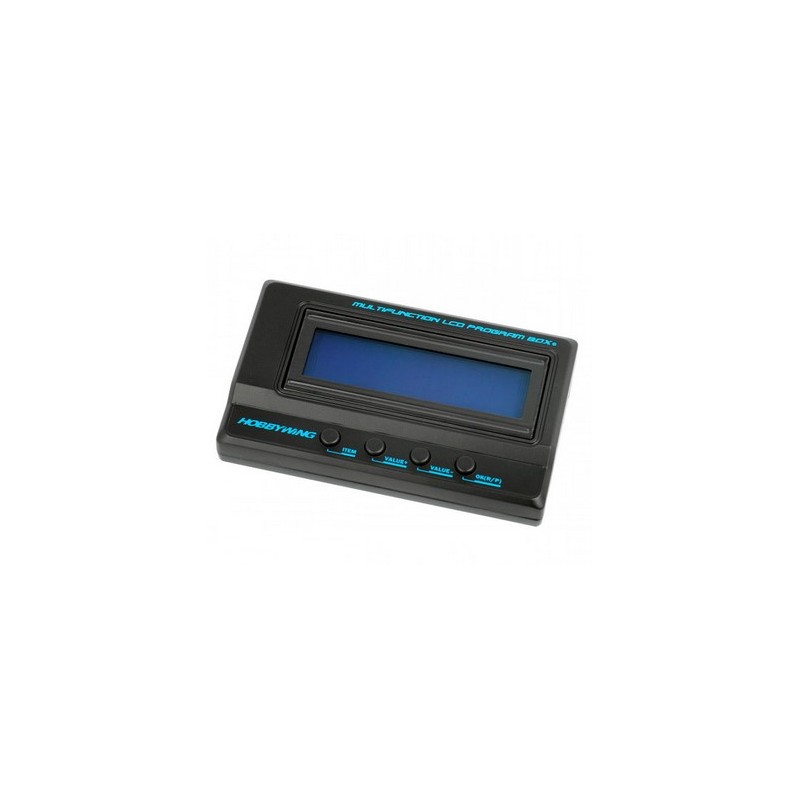

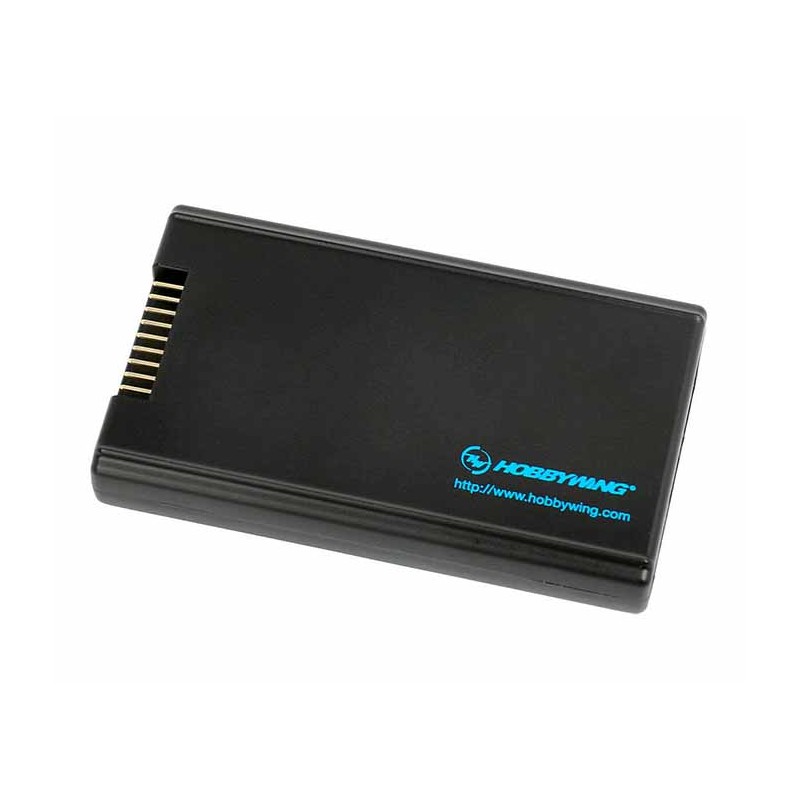

Hobbywing G2 Multifunction LCD Program Box

Reference: HW30502001

Condition: New product

This multifunction LCD interface is for programming HobbyWing brushless ESC's.

Hobbywing G2 Multifunction LCD Program Box

Its friendly LCD interface makes ESC programming easy and quick. With a PC, you can upgrade ESC firmware and further adjust ESC parameters online.
Besides, it’s compact, portable and very applicable for field use.

More details

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

This product is no longer available. Replaced by LCD Program Box Pro.

This multifunciton LCD program box is applicable for the following HobbyWing products:
Platinum series of brushless aircraft ESCs,
XeRun series (Version 2.0, 2.1, 3.0, 3.1 and newer) & EzRun series (Version 2.0 and newer) of brushless car ESCs,
Seaking Pro series of brushless boat ESCs.

Features:

Works as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.
Works as an USB adapter to link the ESC with a PC to update the firmware of the ESC or set the ESC by HOBBYWING USB LINK SOFTWARE .

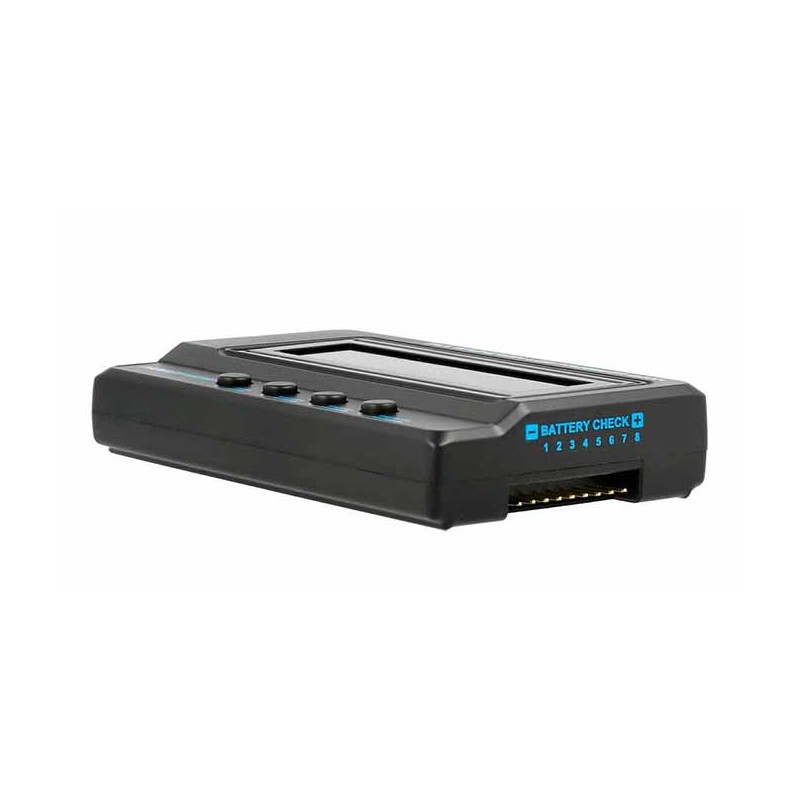

Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack or each cell.

Programmable items for the PLATINUM series Heli/Airplane ESC:

Brake
Battery Type
Low Voltage Protection Mode (Cutoff Mode)
Low Voltage Protection Threshold (Cutoff Threshold)
Start Mode
Timing
Governor Mode
Reserved Item #1
PWM Frequency
Built-In BEC Output
Reserved Item #2
Lipo Cells Amount

Specifications:

Size: 91x51x17mm
Weight: 65g
Display: 16*2 characters LCD.
Input Voltage: 4.5-12.6 Volts (If the ESC hasnt a built-in BEC, you must use an additional battery pack to supply the program box)

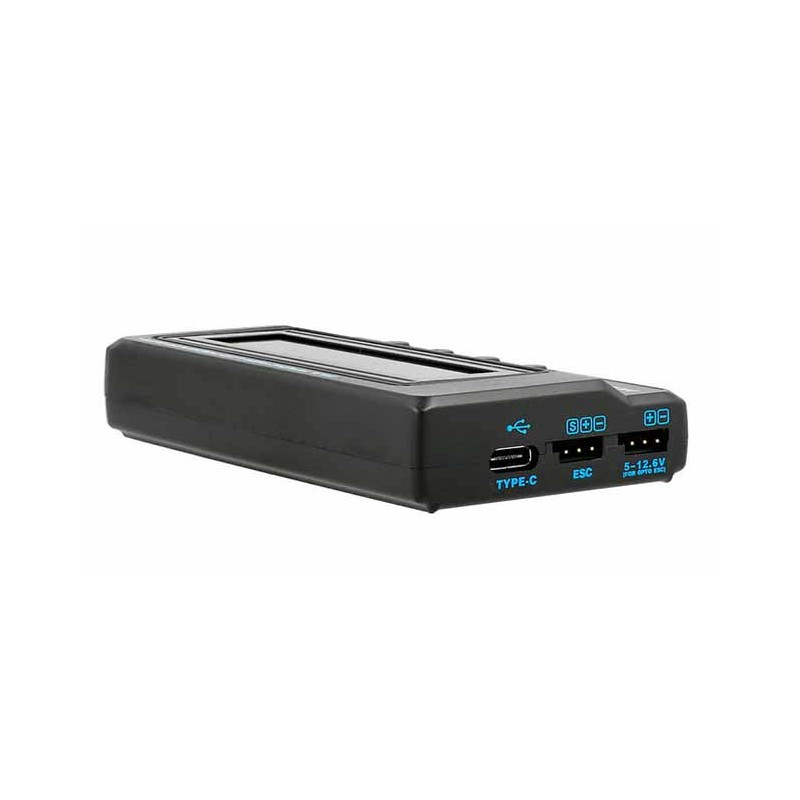

Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)
